ABB AO820 3BSE008546R1 Analog Output 4 Ch Use Module Termination

Product Details:

Place of Origin:	Estonia
Brand Name:	ABB
Certification:	CE
Model Number:	AO820 3BSE008546R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Model:	AO820 3BSE008546R1	Brand:	ABB
Country Of Origin:	Estonia	Product Net Weight:	0.3kg
Product Type:	I-O_Module	Mechanics:	S800
Status Indication Of Supervision:	Module Error, Module Warning, Channel Error

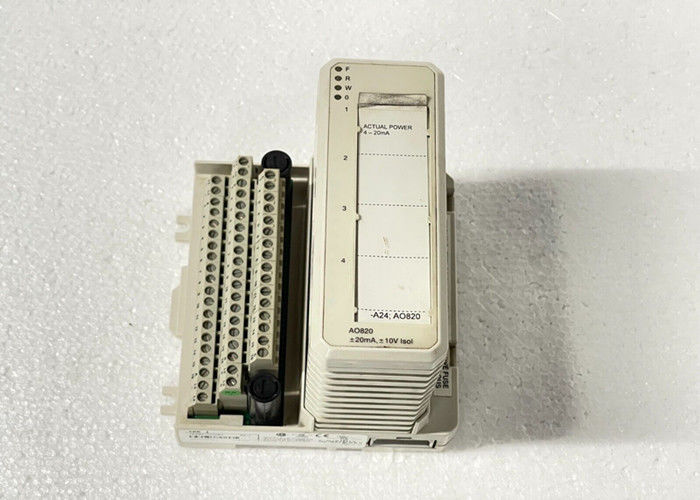

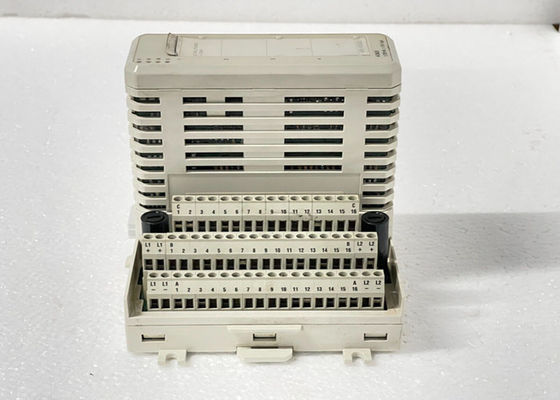

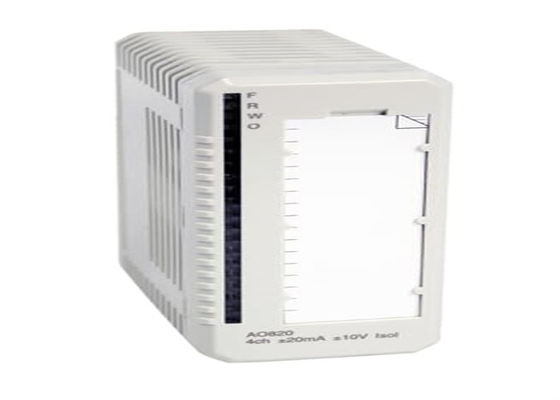

ABB AO820 3BSE008546R1 ANALOG OUTPUT 4 CH

The AO820 Analog Output Module has 4 bipolar analog output channels. The choice of current or voltage output is configurable for each channel. There are separate sets of terminals for voltage and current outputs, and it is up to the user to wire outputs properly. The only differences between current or voltage channel configuration is in software settings.

To supervise the communication to the A/D-converters the output data is read back and verified. The opencircuit diagnostics are read continuously as well. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.

Features and benefits

4 channels for -20...+20 mA, 0...20 mA, 4...20 mA, -10...+10 V, 0...10 V, 2...10 V, -5...+5 V, 0...5 V, 1...5 V d.c. bipolar differential inputs
One group of 4 channels isolated from ground
14 Bit resolution plus sign
Input shunt resistors protected to 30 V d.c.
The input withstand HART communication

General Information

Product ID	3BSE008546R1
ABB Type Designation	AO820
Catalog Description	AO820 Analog Output 4 ch
Long Description	+-20mA, 0(4)...20mA, +-10V, 12bit+sign. Individually galvanic isolated channels. RL max 500 Ohms. Use Module Termination Unit TU810, TU812, TU814, TU830, TU833.

Additional Information

Medium Description

+-20mA, 0(4)...20mA, +-10V, 12bit+sign. Individually galvanic isolated channels. RL max 500 Ohms.
Use Module Termination Unit TU810, TU812, TU814, TU830, TU833.

Product Type

I-O_Module

Ordering

HS Code

853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other

Customs Tariff Number

85389099

Dimensions

Product Net Depth / Length	102 mm
Product Net Height	119 mm
Product Net Width	45 mm
Product Net Weight	0.3 kg

Technical

Channel Type

Number of Input Channels

Number of Output Channels

Environmental

RoHS Status	Following EU Directive 2011/65/EU
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries	0
SCIP	af202ecc-ba58-4efc-b180-019973c54b6f Estonia (EE)
