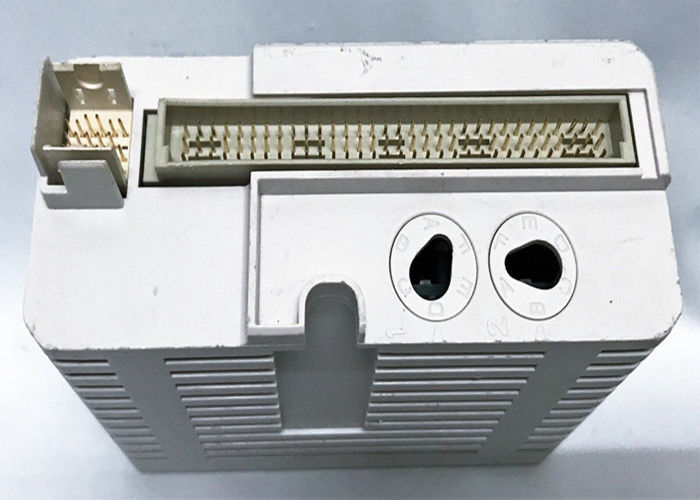

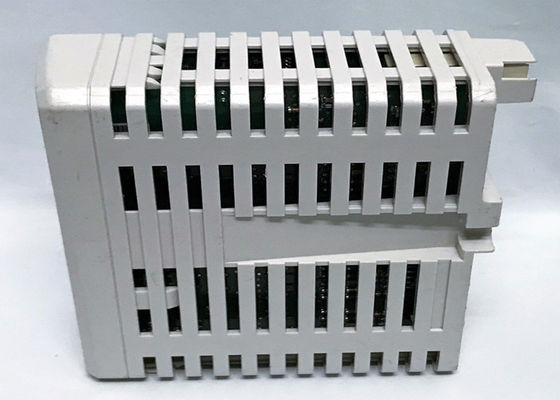

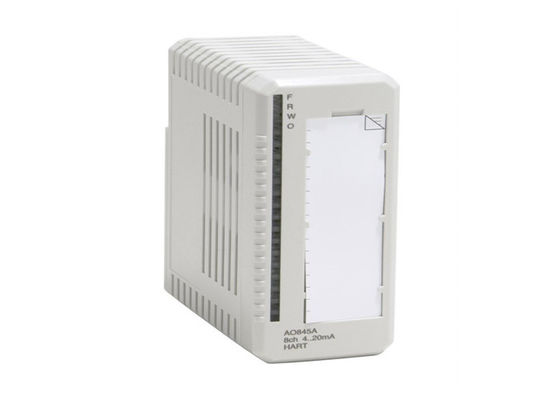

Name: ABB AO845A 3BSE045584R1 Analog Output Module for Single or Redundant Applications
Brand: Wisdomlong Technology CO.，LTD
SKU: AO845A 3BSE045584R1
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

ABB AO845A 3BSE045584R1 Analog Output Module for Single or Redundant Applications

Product Details:

Place of Origin:	India /China
Brand Name:	ABB
Certification:	CE
Model Number:	AO845A 3BSE045584R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Model:	AO845A 3BSE045584R1	Brand:	ABB
Country Of Origin:	India /China	Product Net Weight:	0.2kg
Product Type:	I-O_Module	Channel Type:	AI
Number Of Output Channels:	8

ABB AO845A 3BSE045584R1 TYPE:ANALOG OUTPUT MODULE

The AO845/AO845A Analog Output Module for single or redundant applications has 8 unipolar analog output channels. The module performs self-diagnostic cyclically. Module diagnostics include:

External Channel Error is reported (only reported on active channels) if the process power supply that supply voltage to output circuitry is too low, or the output current is less than the output set value and the output set value > 1 mA (open circuit).
Internal Channel Error is reported if the output circuit can not give the right current value. In a redundant pair the module will be commanded to error state by the ModuleBus master.
Module Error is reported in case of Output Transistor Error, Short Circuit, Checksum Error, Internal Power Supply Error, Status Link Error, Watchdog or Wrong OSP behavior.

Features and benefits

8 channels of 4...20 mA
For single or redundant applications
1 group of 8 channels isolated from ground
Analog inputs are short circuit secured to ZP or +24 V
HART pass-through communication

General Information

Product ID	3BSE045584R1
ABB Type Designation	AO845A
Catalog Description	AO845A Analog Output S/R HART 8 ch
Long Description	(0) 4..20mA, 12bit, RLmax 750 ohm. Single or redundant. Loop supervised DI function. Use Module Termination Unit TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852.

Additional Information

Medium Description

(0) 4..20mA, 12bit, RLmax 750 ohm. Single or redundant. Loop supervised DI function.
Use Module Termination Unit TU810, TU812, TU814, TU830, TU833, TU842, TU843, TU852.

Product Type

I-O_Module

Ordering

HS Code

853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other

Customs Tariff Number

85389099

Dimensions

Product Net Depth / Length	102 mm
Product Net Height	119 mm
Product Net Width	45 mm
Product Net Weight	0.2 kg

Technical

Channel Type

Number of Input Channels

Number of Output Channels

Environmental

RoHS Status	Following EU Directive 2011/65/EU
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries	0
SCIP	840ccec5-99f6-4d14-a28c-4ab091efac2b China (CN)

ABB AO845A 3BSE045584R1 Analog Output Module for Single or Redundant Applications 8

Our brand:

【Honeywell】 Module DCS/PLC/Transmitter
【Emerson/Delta V】 Module/ CT Motor & Drives
【ABB】 I/O Module
【AB】 Module&Touch Screen
【Rosemount】 Transmitter
【Yokogawa】 Transmitter
【Yaskawa】 Servo Drive&Servo Motor
【GE/Fanuc】 IC69 Series PLC
【Mitsubishi】 Servo Drive&Servo Motor

(Modicon,SMC,SICK,NORGREN,Siemens,Ebmpapst etc.)

Order Process:

1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will the PI to you.

2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.

3, We can according to your shipment to ship out the goods, Or we also can help you to ship out the goods directly. And the tracking number will send you by the next day.

4., Usually for our inventory goods only need to take about 3-5 days.

5. If you also have any questions, you can ask me any time, right below is my contact.

FAQ

* Q: Do you provide a warranty for the goods?
A: Yes, we provide a warranty for all the goods from us.

* Q: Could Wisdomlong provide technology support?
A: We're in this field for more than 8 years. If there's any problem, please contact with us, we'll provide a suggestion from our
engineer to help you solve the problem.

* Q: Does Wisdomlong keep goods in stock or only trading?
A: We have a large warehouse for goods. Keep lots of goods in the warehouse, so could promise a fast delivery.

* Q: What is your MOQ?
A: We provide you small MOQ for each item, it depends on your specific order!

* Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

* Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
