ABB DO814 3BUR001455R1 16 Channel 24V Digital Output Module for Seamless Integration

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Certification:	CE
Model Number:	DO814 3BUR001455R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Model:	DO814 3BUR001455R1	Brand:	ABB
Country Of Origin:	Sweden	Product Net Weight:	0.2kg
Product Type:	I-O_Module	Number Of Channels:	16
Type:	Digital Output

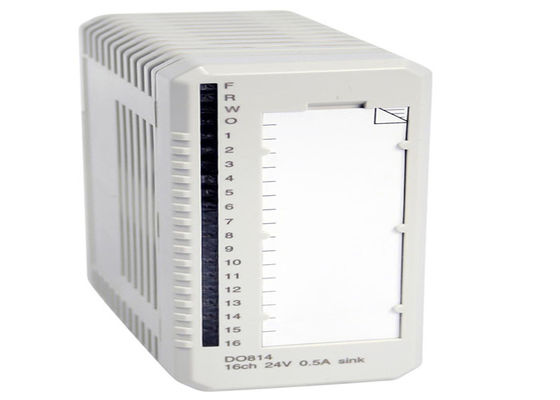

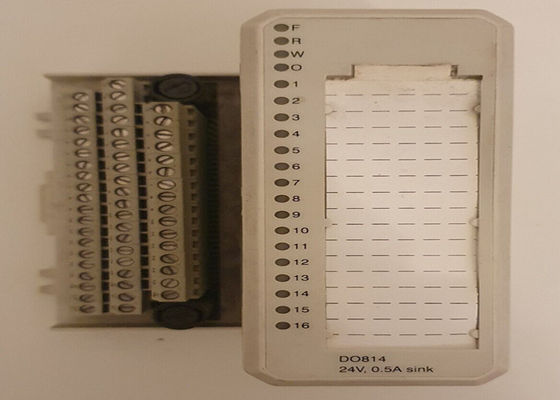

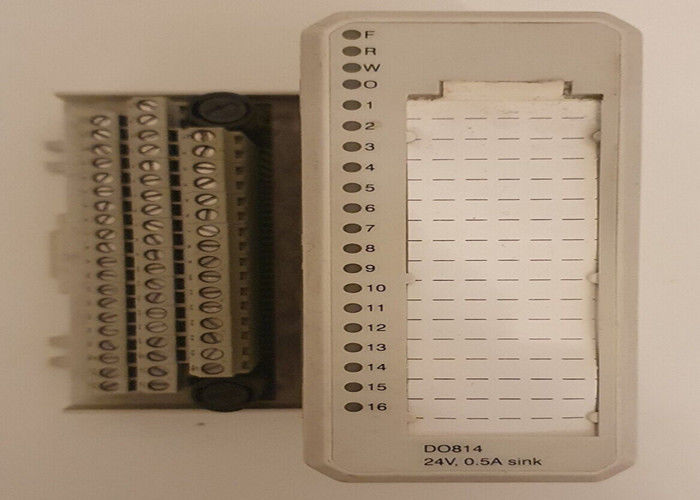

ABB DO814 3BUR001455R1 16 CHANNEL 24 V DIGITAL OUTPUT MODULE

The DO814 is a 16 channel 24 V digital output module with current sinking for the S800 I/O. The output voltage range is 10 to 30 volt and the maximum continuous current sinking is 0.5 A. The outputs are protected against short circuits and over temperature. The outputs are divided into two individually isolated groups with eight output channels and one voltage supervision input in each group.

Each output channel consists of a short circuit and over temperature protected low side switch, EMC protection components, inductive load suppression, output state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.

Features and benefits

16 channels for 24 V d.c. current sinking outputs
2 isolated groups of 8 channels with process voltage supervision
Output status indicators
OSP sets outputs to predetermined state upon error detection
Short-circuit protection to ground and 30 V
Over-voltage and over-temperature protection

General info

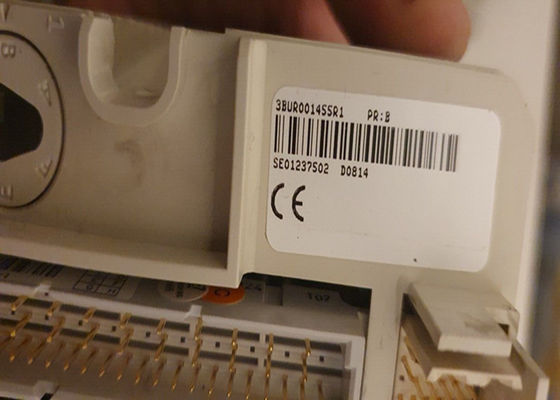

Article number	3BUR001455R1
Type	Digital Output
Signal specification	24 V d.c. (12-32 V d.c.), 0.5 A
Number of channels	16
Signal type	Current sinking, current limiting
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed data

ABB DO814 3BUR001455R1 16 Channel 24V Digital Output Module for Seamless Integration 1

Our brand:

【Honeywell】 Module DCS/PLC/Transmitter
【Emerson/Delta V】 Module/ CT Motor & Drives
【ABB】 I/O Module
【AB】 Module&Touch Screen
【Rosemount】 Transmitter
【Yokogawa】 Transmitter
【Yaskawa】 Servo Drive&Servo Motor
【GE/Fanuc】 IC69 Series PLC
【Mitsubishi】 Servo Drive&Servo Motor

(Modicon,SMC,SICK,NORGREN,Siemens,Ebmpapst etc.)

Order Process:

1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will the PI to you.

2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.

3, We can according to your shipment to ship out the goods, Or we also can help you to ship out the goods directly. And the tracking number will send you by the next day.

4., Usually for our inventory goods only need to take about 3-5 days.

5. If you also have any questions, you can ask me any time, right below is my contact.

FAQ

* Q: Do you provide a warranty for the goods?
A: Yes, we provide a warranty for all the goods from us.

* Q: Could Wisdomlong provide technology support?
A: We're in this field for more than 8 years. If there's any problem, please contact with us, we'll provide a suggestion from our
engineer to help you solve the problem.

* Q: Does Wisdomlong keep goods in stock or only trading?
A: We have a large warehouse for goods. Keep lots of goods in the warehouse, so could promise a fast delivery.

* Q: What is your MOQ?
A: We provide you small MOQ for each item, it depends on your specific order!

* Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

* Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Send your Inquiry details in the Below, Scan "The QR Code" Now!

Tag:

Contact Person: Ms. Florence Zhang

Tel: 86-18318060200

Fax: Zhang hefei

Best Products

Product Name: Digital I O Module CC-IP0101 51410056-175

Product: Digital I O Module Module

Model: CC-IP0101 51410056-175

Brand: Honeywell

Honeywell 31.2VDC Digital Input Output Experion TC-ODD321 Dc Output Module

Product Name: Digital I O Module TC-ODD321

Product: Digital I O Module

Model: TC-ODD321

Brand: Honeywell

ABB SPDSI22 Bailey Digital I O Module 16CH Universal 32 Jumpers 120VAC

Brand: ABB

Model: SPDSI22

Product ID: SPDSI22

Medium Description: 24, 48, 125 VDC, 120 VAC

TAS01 Bailey Infi 90 Turbine Autosync Module PLC Ethernet Digital Input Module

Brand: ABB

Model: TAS01

Product ID: TAS01

Medium Description: Turbine Generator Auto Synchronization Module for Hamrony Rack

ABB SPFEC12 Digital I O Module Module 15CH 4 To 20mA 1 To 5V Analog Input

Brand: ABB

Model: SPFEC12

Product ID: SPFEC12

Product Type: I-O_Module

CI522A 3BSE018283R1 CPU Ethernet Digital IoAF100 Interface Communication

Brand: ABB

Model: CI522A

Product ID: 3BSE018283R1

Product Type: Communication_Module

Isolation	Groupwise isolated from ground
Current limiting	Short circuit proof current limited output
Maximum field cable length	600 meters (656 yards)
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	Typ. 2.1 W
Current consumption +5 V Modulebus	80 mA

Front LED’s	F(ault), R(un), W(arning), O(SP), Channel 1-16 Status
Supervision	Process voltage, 1 per group
Status indication of supervision	Module Error, Module Warning, Channel error

CE mark	Yes
Electrical safety	EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification	ABS, BV, DNV, LR
Temperature, Operating	0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
Pollution degree	Degree 2, IEC 60664-1
Corrosion protection	ISA-S71.04: G3
Relative humidity	5 to 95 %, non-condensing
Max ambient temperature	55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
Protection class	IP20 according to IEC 60529
Mechanical operating conditions	IEC/EN 61131-2
EMC	EN 61000-6-4, EN 61000-6-2
Overvoltage categories	IEC/EN 60664-1, EN 50178
Equipment class	Class I according to IEC 61140; (earth protected)
RoHS compliance	DIRECTIVE/2011/65/EN (EN 50581:2012)
WEEE compliance	DIRECTIVE/2012/19/EU

Use with MTU	TU810, TU812, TU814, TU830, TU833 or TU838
Keying code	BE

Width	45 mm (1.77”)
Depth	102 mm (4.01”), 111 mm (4.37”) including connector
Height	119 mm (4.7”)
Weight	0.18 kg (0.4 lbs.)
