Name: ABB DO815 3BSE013258R1 8 Channel 24V Digital Output Module with Overload Protection
Brand: Wisdomlong Technology CO.，LTD
SKU: DO815 3BSE013258R1
Price: 1.00 USD
Availability: InStock

Home Products Digital I O Module

ABB DO815 3BSE013258R1 8 Channel 24V Digital Output Module with Overload Protection

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Certification:	CE
Model Number:	DO815 3BSE013258R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	100

Contact Now

Detailed Product Description

Model:	DO815 3BSE013258R1	Brand:	ABB
Country Of Origin:	Sweden	Product Net Weight:	0.3kg
Product Type:	I-O_Module	Signal Type::	High Side Driver, Current Limiting
Type:	Digital Output

ABB DO815 3BSE013258R1 8 CHANNEL 24 V DIGITAL OUTPUT MODULE

The DO815 is a 8 channel 24 V digital output module for the S800 I/O. The output voltage range is 10 to 30 V and the maximum continuous output current is 2 A @ 24 V. The outputs are protected against short circuits, and over load. The outputs are divided into two individually isolated groups with four output channels in each group. Each output channel consists of a short circuit and over load protected high side driver with open load detection (on active signal), EMC protection components, inductive load suppression, output status indication LEDs and optical isolation barrier.

Features and benefits

8 channels for 24 V d.c. current sourcing outputs
2 isolated groups of 4 channels with under voltage detection
OSP sets outputs to predetermined state upon communication error
Output status indicators and a channel wise error flag
Short-circuit protection to ground and positive supply
Over load protection
Open load and short-circuit detection
Two output fault operation modes: Automatic reset mode and Fault latching mode
Inductive load driving capability
Filament lamp load up to 10W

General info

Article number	3BSE013258R1
Type	Digital Output
Signal specification	24 V d.c. (10 - 32 V d.c.), 2A
Number of channels	8
Signal type	High side driver, current limiting
HART	No
SOE	No
Redundancy	No
High integrity	No
Intrinsic safety	No
Mechanics	S800

Detailed data

Isolation	Groupwise isolated from ground
Output load	< 0.25 Ω
Current limiting	Short circuit proof current limited output
Maximum field cable length	600 meters (656 yards)
Event recording accuracy	-0 ms / +1.3 ms
Rated insulation voltage	50 V
Dielectric test voltage	500 V a.c.
Power dissipation	Typ. 4 W
Current consumption +5 V Modulebus	Typ. 120 mA, Max. 150 mA
Current consumption +24 V Modulebus	0
Current consumption +24 V external	0

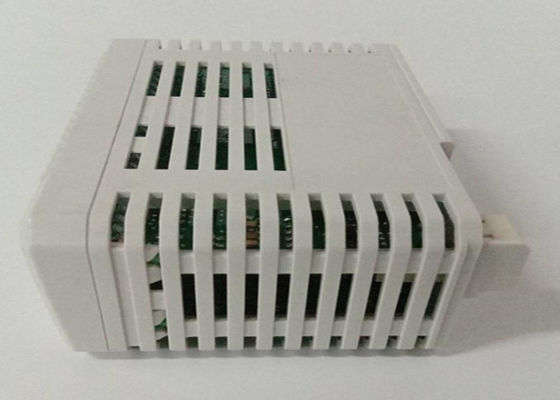

ABB DO815 3BSE013258R1 8 Channel 24V Digital Output Module with Overload Protection 1

Our brand:

【Honeywell】 Module DCS/PLC/Transmitter
【Emerson/Delta V】 Module/ CT Motor & Drives
【ABB】 I/O Module
【AB】 Module&Touch Screen
【Rosemount】 Transmitter
【Yokogawa】 Transmitter
【Yaskawa】 Servo Drive&Servo Motor
【GE/Fanuc】 IC69 Series PLC
【Mitsubishi】 Servo Drive&Servo Motor

(Modicon,SMC,SICK,NORGREN,Siemens,Ebmpapst etc.)

Order Process:

1, First, send us the brand, model code/pic of the nameplate, the quantity for inquiry. Then we will send the quote to you. after confirming the model and the quantity, then we will the PI to you.

2, You can transfer by Paypal/ Western Union/Trade assurance/ T/T. When we received the payment, then we will start to prepare the order for you asap.

3, We can according to your shipment to ship out the goods, Or we also can help you to ship out the goods directly. And the tracking number will send you by the next day.

4., Usually for our inventory goods only need to take about 3-5 days.

5. If you also have any questions, you can ask me any time, right below is my contact.

FAQ

* Q: Do you provide a warranty for the goods?
A: Yes, we provide a warranty for all the goods from us.

* Q: Could Wisdomlong provide technology support?
A: We're in this field for more than 8 years. If there's any problem, please contact with us, we'll provide a suggestion from our
engineer to help you solve the problem.

* Q: Does Wisdomlong keep goods in stock or only trading?
A: We have a large warehouse for goods. Keep lots of goods in the warehouse, so could promise a fast delivery.

* Q: What is your MOQ?
A: We provide you small MOQ for each item, it depends on your specific order!

* Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

* Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ;

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Send your Inquiry details in the Below, Scan "The QR Code" Now!

Tag:

Contact Person: Ms. Florence Zhang

Tel: 86-18318060200

Fax: Zhang hefei

Best Products

Product Name: Digital I O Module CC-IP0101 51410056-175

Product: Digital I O Module Module

Model: CC-IP0101 51410056-175

Brand: Honeywell

Honeywell 31.2VDC Digital Input Output Experion TC-ODD321 Dc Output Module

Product Name: Digital I O Module TC-ODD321

Product: Digital I O Module

Model: TC-ODD321

Brand: Honeywell

ABB SPDSI22 Bailey Digital I O Module 16CH Universal 32 Jumpers 120VAC

Brand: ABB

Model: SPDSI22

Product ID: SPDSI22

Medium Description: 24, 48, 125 VDC, 120 VAC

TAS01 Bailey Infi 90 Turbine Autosync Module PLC Ethernet Digital Input Module

Brand: ABB

Model: TAS01

Product ID: TAS01

Medium Description: Turbine Generator Auto Synchronization Module for Hamrony Rack

ABB SPFEC12 Digital I O Module Module 15CH 4 To 20mA 1 To 5V Analog Input

Brand: ABB

Model: SPFEC12

Product ID: SPFEC12

Product Type: I-O_Module

CI522A 3BSE018283R1 CPU Ethernet Digital IoAF100 Interface Communication

Brand: ABB

Model: CI522A

Product ID: 3BSE018283R1

Product Type: Communication_Module

Front LED’s	F(ault), R(un), W(arning), O(SP), Channel 1-8 Status, Channel 1-8 Fault
Supervision	Short circuit, over load, under voltage and open load
Status indication of supervision	Module Error, Module Warning, Channel error

CE mark	Yes
Electrical safety	EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous Location	C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine certification	ABS, BV, DNV, LR
Temperature, Operating	0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
Pollution degree	Degree 2, IEC 60664-1
Corrosion protection	ISA-S71.04: G3
Relative humidity	5 to 95 %, non-condensing
Max ambient temperature	55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F)
Protection class	IP20 according to IEC 60529
Mechanical operating conditions	IEC/EN 61131-2
EMC	EN 61000-6-4, EN 61000-6-2
Overvoltage categories	IEC/EN 60664-1, EN 50178
Equipment class	Class I according to IEC 61140; (earth protected)
RoHS compliance	DIRECTIVE/2011/65/EN (EN 50581:2012)
WEEE compliance	DIRECTIVE/2012/19/EU

Use with MTU	TU810, TU812, TU814, TU830
Keying code	AA

Width	45 mm (1.77”)
Depth	102 mm (4.01”), 111 mm (4.37”) including connector
Height	119 mm (4.7”)
Weight	0.2 kg (0.44 lbs.)

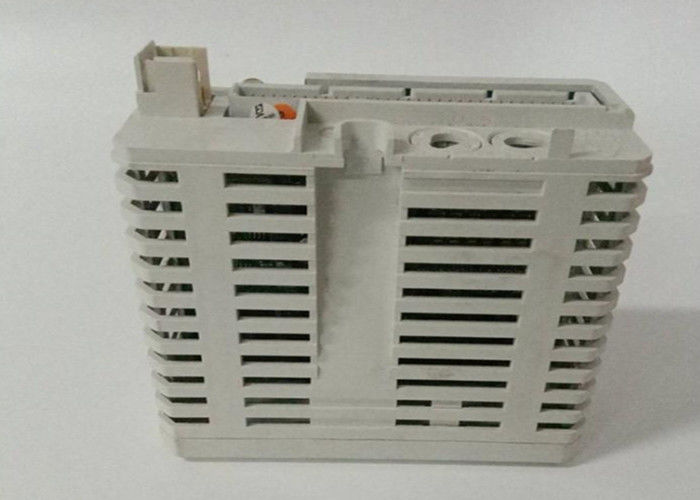

ABB DO815 3BSE013258R1 8 Channel 24V Digital Output Module with Overload Protection

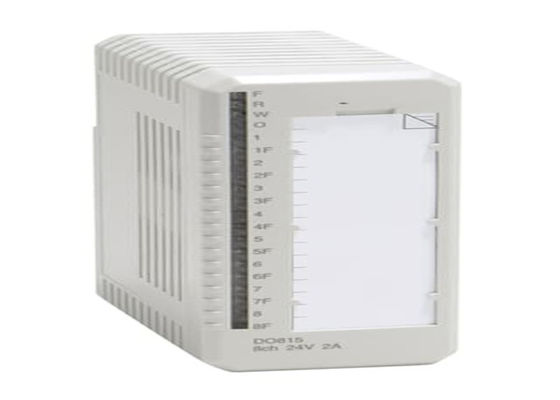

ABB DO815 3BSE013258R1 8 Channel 24V Digital Output Module with Overload Protection
