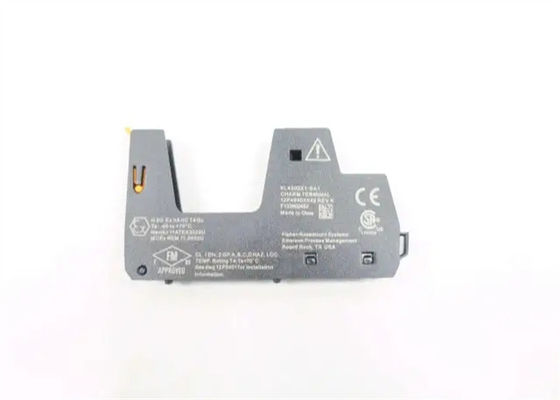

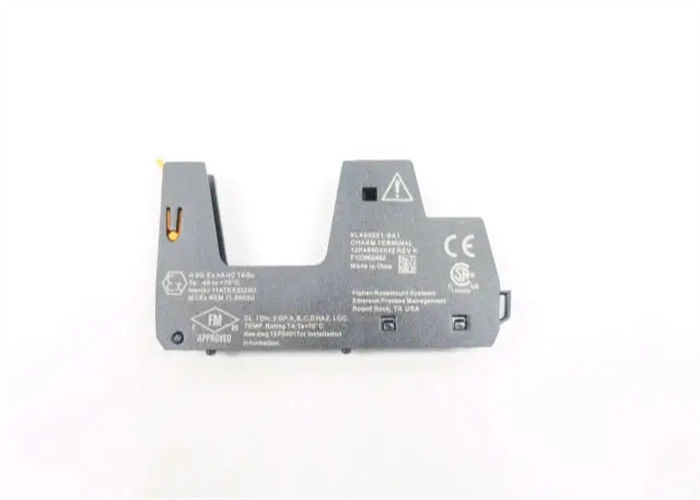

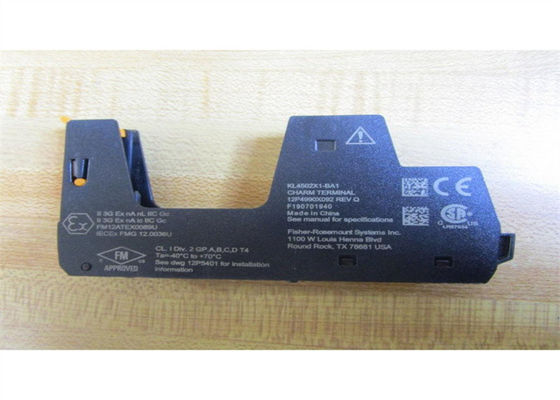

Emerson New KL4502X1-MA1 Digital I O Module 0.3lb Original Box
Description:
| Brand |
Emerson |
| Model Number |
KL4502X1-MA1 |
| Type |
Digital I O Module |
| Shipping Weight |
0.3lb |
| Dimension |
3*1*2 Inch |
| Warranty |
1 Year |
Emerson DeltaV Terminal Contact Block 12P5854X022 KL4502X1-MA1 Deltav Charm Relay Terminal
Details
Emerson KL4502X1-MA1 Deltav Charm Relay Terminal Rev C
Brand: EMERSON
Condition: New or Used
Model: KL4502X1-MA1
Shipping Weight: 0.30 lb
Shipping Dimensions: 3.00 x 1.00 x 2.00 in
SKU: D566922 (G200044)
Category: Terminal and Contact Blocks
Description:L
CHARMS can be inserted or removed under power only when the maximum power supplied to the CHARM I/O card (KL2101X1-BA1) has an open circuit voltage (Voc) of 26.4 VDC. DeltaV bulk power supplies (KJ1502X1) meet this voltage requirement when installed according to the installation instructions.
An I/O loop assessment must be completed on all energy-limited nodes.A keying system ensures compatibility between a CHARM and the CHARM terminal block when the CHARM is installed on the terminal block. The terminal block keys are automatically set the first time the CHARM is installed on the terminal block.
To install another CHARM type on a terminal block, reset the keys by removing the terminal block and releasing the keys from the locked position.
Specifications:
CHARM bus power rating: +6.3 VDC at 32 mA
Field circuit rating: +24 VDC at 25 mA
Ambient Temperature: -4 0 to 70o C
Shock: 10g ½ Sinewave for 11 msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class
Relative Humidity: 5 to 95% Non-Condensing IP 20
RatingTerminal block key position: 1A
Note:Refer to the product label for serial number and location and date of manufacture.
Warning: This product has specific instructions for installation, removal and operation in hazardous areas. Refer to document 12P5403 "DeltaV Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) Zone 2 Installation Instructions". Other installation instructions are available in the " DeltaV S-series and CHARMsHardware Installation" manual.
Models of Interface Carrier
8-Wide I/O Interface Carrier with Carrier Shield Bar VE4050S2K1C0
8-Wide I/O Interface Carrier with Carrier Shield Bar and Single Enhanced Carrier Extender Cable VE4050E1C0
8-Wide I/O Interface Carrier with Carrier Shield Bar, Single Enhanced Carrier Extender Cable, and Redundant SISNet Coax Cables VE4050E1C2
8-Wide I/O Interface Carrier with Dual Carrier Extension Cable and Carrier Shield Bar VE4050E2C0
8-Wide I/O Interface Carrier with Carrier Shield Bar, Dual Enhanced Carrier Extender Cables, and Redundant SISNet Coax Cables VE4050E2C2
2-Wide Power/Controller Carrier VE3051C0
2-Wide Power/Controller Carrier with Dual Enhanced Extender Cables VE3051C2
2-Wide Power/Controller Carrier with Single Enhanced Extender Cable VE3051C3
2-Wide Power/Controller Carrier with Single Enhanced Extender Cable and Redundant SISNet Coax Cables VE3051C5
Carrier Blank Cap VE6101
Horizontal-Mount 2-Wide Power Carrier; 12 Vdc Output VE5056
