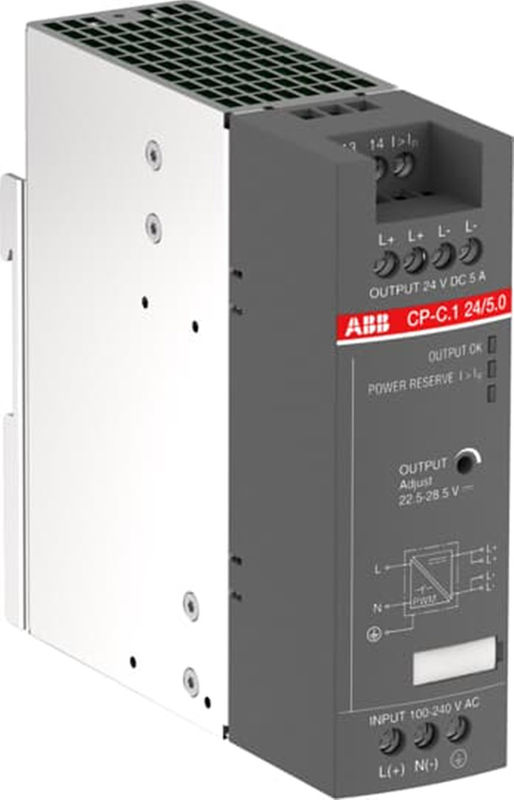

ABB 1SVR360563R1001 CP-C.1 24/5.0 Switch mode power supply
General Information
Extended Product Type: CP-C.1 24/5.0
Product ID: 1SVR360563R1001
EAN: 4013614503818
Catalog Description: CP-C.1 24/5.0 Power supply In:100-240VAC/90-300VDC Out:DC 24V/5A
Long Description:
The CP-C.1 24/5.0 is a power supply from the CP-C.1 range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-300 V DC, rated input voltage is 110-240 V AC. The rated output power is 120 W, rated output current is 5 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. The power supply provides a U/I output characteristic with a power reserve of up to 50 % and allows parallel operation to increase capacity and to enable redundancy. Further features are: power factor correction acc. to EN 61000-3-2. Redundancy unit and buffer modules are available as accessories.
Ordering
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85044095
Dimensions
Product Net Width: 40 mm
Product Net Height: 129.4 mm
Product Net Depth / Length: 136 mm
Product Net Weight: 0.74 kg
Container Information
Package Level 1 Width: 70 mm
Package Level 1 Depth / Length: 168 mm
Package Level 1 Height: 160 mm
Package Level 1 Gross Weight: 0.87 kg
Package Level 1 EAN: 4013614503818
Package Level 1 Units: box 1 piece
Technical
Function: Switch mode power supply
Number of Phases: 1
Rated Input Voltage (UIN):
100 ... 240 V AC
90 ... 300 V DC
Input Voltage (Uin):
85 ... 264 V AC
90 ... 300 V DC
Typical Input Current:
(115 V AC) 1.1 A
(230 V AC) 0.6 A
Hold-up Time: (230 V AC) min. 50 ms
Rated Frequency (f): 50 / 60 Hz
Rated Frequency Limits: 45 ... 65 Hz
Characteristic of Output: U/I characteristic curve with power reserve
Rated Output Power: 120 W
Output Power: 120 W
Rated Output Voltage: 24 V DC
Output Voltage (Uout): 24 V DC
Rated Output Current:
-25 °C ... +40 °C 7.5 A
-25 °C ... +60 °C 5 A
Output Current: 5 A
Output Current Maximum (Iout): 7.5 A
Rated Impulse Withstand Voltage (Uimp):
Input Circuit / Output Circuit 4 kV
Input Circuit / PE 4 kV
Input Circuit / Relay Contact 4 kV
Output Circuit / PE 0.5 kV
Output Circuit 0.5 kV
Rated Insulation Voltage (Ui):
Input Circuit / Output Circuit 300 V
Input Circuit / PE 300 V
Input Circuit / Relay Contact 300 V
Output Circuit / PE 50 V
Degree of Protection:
Housing IP20
Terminals IP20
Pollution Degree: 2
Connecting Capacity Input Circuit:
Flexible with Ferrule 0.5 ... 2.5 mm²
Flexible 0.5 ... 2.5 mm²
Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit:
Flexible with Ferrule 0.5 ... 2.5 mm²
Flexible 0.5 ... 2.5 mm²
Rigid 0.5 ... 4 mm²
Tightening Torque:
Auxiliary Circuit 0.5 N·m
Input Circuit 0.5 N·m
Output Circuit 0.5 N·m
Wire Stripping Length:
Auxiliary Circuit 8 mm
Input Circuit 8 mm
Output Circuit 8 mm
Recommended Screw Driver:
Input Circuit / Output Circuit PH1
Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance:
Electrical Conductive Board, Horizontal 25 mm
Electrical Conductive Board, Vertical 25 mm
Other Device Same Type, Horizontal 25 mm
Other Device Same Type, Vertical 25 mm
Mounting Position: Position 1 / 7
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
