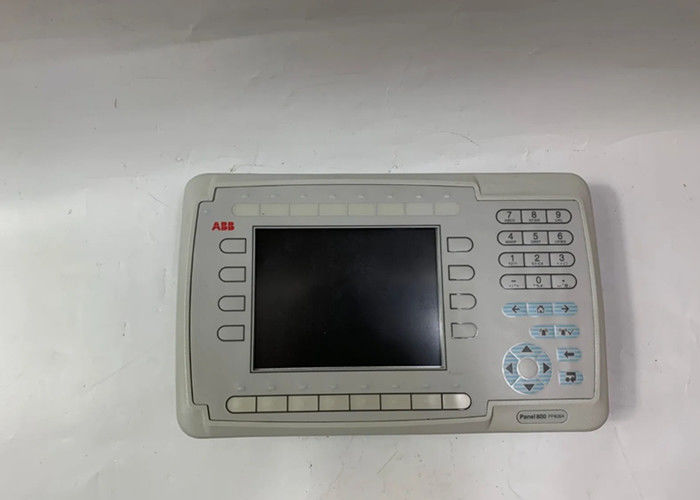

ABB PP826A 3BSE042244R3 ABB operation panel Potential-free control input

ABB PP826A 3BSE042244R3 ABB operation panel Potential-free control input

General Information

PP826A is a device produced by ABB, with the model 3BSE042244R3. The following is an introduction to its working principle, functions, and technical parameters
1. Working principle:
PP826A is a process control device used to monitor and control parameters in industrial processes. It communicates with other devices and systems, collects and processes data, and performs corresponding control operations. It can exchange data with sensors, actuators, PLCs, and other devices to achieve process monitoring and control.
2. Function:
-Data collection: PP826A can be connected to various sensors and instruments to collect process parameters in real-time, such as temperature, pressure, flow rate, etc.
-Data processing: PP826A has data processing capabilities, which can analyze and process the collected data, and extract useful information.
-Control operation: PP826A can achieve process control operation through communication with actuators and other control devices based on preset control strategies.
-Communication interface: PP826A supports multiple communication interfaces, such as Modbus, Profibus, etc., and can exchange data with other devices and systems.
-Programmability: PP826A has certain programmability, and users can program it according to their actual needs to achieve customized control functions.
3. Technical parameters:
-Input/output channels: PP826A has multiple input and output channels, which can connect multiple sensors and actuators.
-Communication interface: Supports multiple communication interfaces, such as RS485, Ethernet, etc.
-Working temperature range: usually between -20 ° C and 60 ° C.
-Power supply: usually 24V DC.
-Size and weight: The specific size and weight can vary depending on the specific model. Users can refer to the equipment's technical manual for detailed information.
Please note that the above introduction is only a general description, and the specific working principles, functions, and technical parameters may vary depending on the specific model and application. We suggest that you carefully read the technical manual and related documents of the device before using it to obtain accurate information.

Product Dimensions:

• Soft starting and stopping of 3-phase

squirrel cage motors

• Rated operational voltage: Up to 600 VACrms, 50/60 Hz

• Rated operational current: 3 A or 12 AAC 53 b

• Potential-free control input

• LED-indications for supply and operation

• Transient overvoltage protection built-in

•Integral bypassing of semiconductors

This motor controller is intended to be used to softstart/

softstop 3-phase squirrel cage induction motors and thereby

reduce the stress or wear on gear and belt/chain drives and

to give smooth operation of machines. Soft starting and/or

stopping is achieved by controlling the motor voltage.

During running operation the semiconductor is bypassed by

an internal electromechanical relay The initial torque can be adjusted from 0 to 85% of the nominal torque.

The soft-start and soft-stop time can be adjusted from 0.5

to approx. 7s.A green LED indicates supply.

Two yellow LEDs indicate Ramp up/down and Running

mode. Overload protection is not provided in this motor controller

and must therefore be installed separately.

The controller is switching 2 lines. The 3rd line is continuously connected to the load.

The motor controller provides by-passing of the semiconductors during running operation. Therefore the semiconductors can only be damaged by short-circuit currents during ramp-up and ramp-down function
