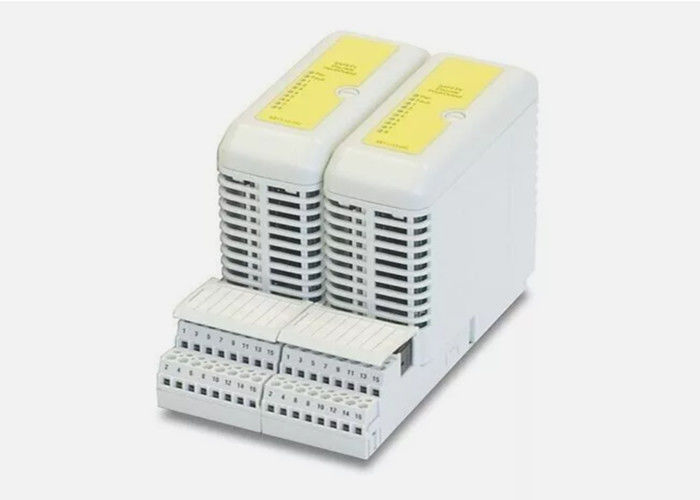

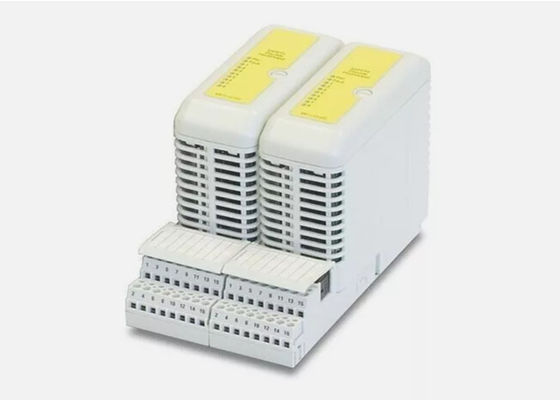

PAC8000 Remote I/O The Control Solution for Process Industries Thermocouple

PAC8000 Remote I/O The Control Solution for Process Industries Thermocouple

Introduction

PAC8000 Remote I/O is a completely modular I/O solution for both general purpose and hazardous area applications. Based upon a carrier system, PAC8000 supports a wide range of modules and I/O functions, including intrinsic safety signals. An open architecture allows communication with a variety of different fieldbuses by selecting the appropriate type of Bus Interface Module (BIM). Designed to resist extreme temperatures, humidity, corrosive materials, shocks, and vibration, PAC8000 delivers full specification performance in even the harshest environments. In ATEX environments PAC8000 excels – all components can be mounted and live worked in Zone 2 / Division 2 and ATEX Zone 1 hazardous areas. The I/O includes types that can be connected directly to intrinsically safe (Exi) or increased safety (Exe) field wiring. PAC8000 Remote I/O integrates seamlessly with PACSystems solutions and is connected via PROFINET or Modbus TCP to RX3i and RSTi-EP controllers.

Specifications

Part Number:8132-AI-UN

Analog Input Count & Type:8 point isolated universal input

Resolution & Speed:14 Bit; 11mS

Current Consumption:System 60mA

Special Capabilities:Thermocouple types B, E, J, K, N, R, S, T, W3, W5, Russian K, Russian L; RTD Types Pt100, jPt100, Pt200, Pt500, Ni120, Cu10; Volt input types: 120mV, 0-1V, 0-5V, 1-5V, 0-10V, 10V

Product Description:PAC8000 8-channel Isolated Universal Analog Input 4-20mA, Thermocouple, RTD, Voltage

Features

• PAC8000 I/O is a completely modular I/O solution for both general purpose and hazardous area applications. It offers a wide variety of I/O functions, and has an open architecture that allows communication with a variety of different field-buses by selecting the appropriate type of Bus Interface Module (BIM) or Controller.
• Field terminals (one per I/O module) snap onto the carrier and accept field wiring without the need for additional terminals or connections. They can be changed easily if damaged in the field. A comprehensive mechanical keying system ensures that equipment safety is maintained.
• Carriers form PAC8000s physical and electrical backbone by providing a mounting onto a flat panel or T- or G-section DIN rail. They support and interconnect the BIM or Controller, power supplies, I/O modules and field terminals, and carry the address, data and power lines of the internal Railbus
• Thermocouple types B, E, J, K, N, R, S, T, W3, W5, Russian K, Russian L
• RTD Types Pt100, jPt100, Pt200, Pt500, Ni120, Cu10
• Volt input types 120mV, 0-1V, 0-5V, 1-5V, 0-10V, ?10V
• 2 or 3-wire RTDs
• 2 or 4-wire transmitters
• Non-incendive field circuits
• 24 V dc bussed field power required

Harsh & Hazardous Area Operation

PAC8000 can go where other products cannot. They can be field mounted and subjected to the following: -40°C to +70°C operating range ISA Level G3 corrosion 30g shocks and 5g vibration Operation in Class I, Division 2 and Zone 2 hazardous areas with I/O module field wiring including intrinsically safe (Exi) and increased safety (Exe) options Supports UL HAZLOC C1D1 and ATEX Zone 1 hazardous areas with I/O module field wiring including intrinsically safe (Exi) and increased safety (Exe) options High Availability PAC8000 supports PROFINET System Redundancy (PNSR), enabling synchronized independent controllers to service the I/O and transition from active to back-up controller without interruption. With controllers separated up to 10 kilometers from each other, processes will be resilient from physical disruption. Consider unplanned downtime a thing of the past. Variety of I/O Modules Beyond just analog and digital I/O, a broad range of PAC8000 I/O modules are available, including options for low-level instrumentation, AC mains, and intrinsically safe signals. 4, 8, 16, and 32 field channels modules are available, and all modules provide comprehensive diagnostic information.

High Availability

PAC8000 supports PROFINET System Redundancy (PNSR), enabling synchronized independent controllers to service the I/O and transition from active to back-up controller without interruption. With controllers separated up to 10 kilometers from each other, processes will be resilient from physical disruption. Consider unplanned downtime a thing of the past. Variety of I/O Modules Beyond just analog and digital I/O, a broad range of PAC8000 I/O modules are available, including options for low-level instrumentation, AC mains, and intrinsically safe signals. 4, 8, 16, and 32 field channels modules are available, and all modules provide comprehensive diagnostic information.
