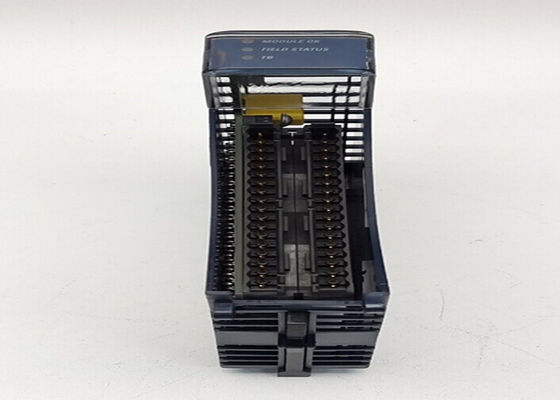

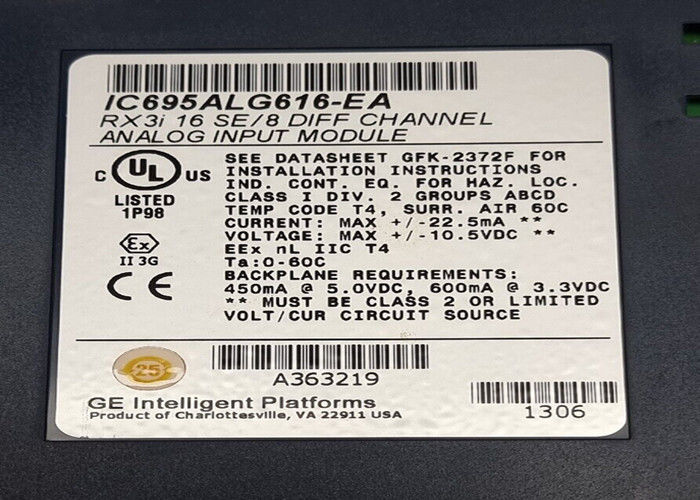

GE IC695ALG616 PACSystems™ RX3i Analog Input module, current/voltage, 16/8 channel
Product description
The IC695ALG616 is a 16/8 Channel, Non-Isolated, Differential, Voltage/Current, Analog Input module from the GE Fanuc RX3i Series. This module provides 16 single-ended or 8 differential input channels. This module must be located on an RX3i Universal Backplane. See specifications for this unit on IC695ALG616's website page.
The IC695ALG616 Module is an analog input module that is made in the RX3i PACSystems series by GE Fanuc Automation. This module is a specific type of module that is a non-isolated differential analog input current/voltage module that includes 16 single-ended or 8 differential input channels. Different power ranges can be configured with each of the input channels on this module, and these ranges are current and voltage ranges of 0 to 20 milliamps, 4 to 20 milliamps, and +/-20 milliamps of current and +/-10 Volts, 0 to 10 Volts, +/-5 Volts, 0 to 5 Volts, and 1 to 5 Volts DC of voltage. This module can be used with a box-style, an extended box-style, a spring-style, or an extended spring-style terminal block. The GE Fanuc Automation IC695ALG616 Analog Input Module is installed in the RX3i Universal Backplane.
Some of the features that come incorporated in the GE Fanuc Automation IC695ALG616 Analog Input Module are full auto-calibration, an on-board error checking feature, and an open-circuit detection feature for all the voltage inputs. The module also comes with a high alarm, a low alarm, a high-high alarm, and a low-low alarm along with a fault reporting feature that is selectable per channel. The GE Fanuc Automation IC695ALG616 Analog Input Module has positive and negative rate of change alarms and it goes through an auto-calibration at start-up. This module supports hot insertion and removal from the rack (insertion and removal under power.) This module operates with a voltage range of -10 to +10 Volts and an external power supply voltage range of 18 to 30 Volts DC.
Specifications
| Part number |
IC695ALG616
|
| Dimensions |
34 x 145 x 140 mm |
| Manufacturer |
General Electric Multilin |
| Manufacturing Location |
Markham, Ontario, Canada |
| Resolution & Speed |
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR |
| Analog Input Count & Type |
UL, UL HAZLOC |
| Angecy |
UL, UL HAZLOC |
| Approvals |
Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR |
| Internal Powe |
3.3V: 450mA; 5V: 600 mA |
| Current Range |
0-20 mA, 4-20 mA, +/-20 mA |
| Number of Inputs |
16 single-ended or 8 differential |
Features
- High-speed and patented technology for faster throughput
- Hot swap capability
- A variety of voltage ranges and current capacities to meet your application needs.
Technical Information
| Input Ranges |
Current: 0 to 20mA, 4 to 20mA, ±20mA Voltage: ±10V, 0 to 10V, ±5V, 0 to 5V, 1 to 5V |
| Backplane Power Requirements |
ALG608: ALG616: ALG626:
ALG628:
|
200 mA maximum @ 5.0V +5% / -2.5%,
200 mA maximum @ 3.3V +5% / -3%
350 mA maximum @ 5.0V +5% / - 2.5%,
200 mA maximum @ 3.3V +5% / - 3%
400 mA maximum @ 5.0V +5% / - 2.5%,
200 mA maximum @ 3.3V +5% / - 3%
260 mA maximum @ 5.0V +5% / - 2.5%,
200 mA maximum @ 3.3V +5% / - 3%
|
|
| Power Dissipation within Module |
IC695ALG608: IC695ALG626: |
2.58 W maximum; IC695ALG616:
4.50 W maximum; IC695ALG628:
|
4.25 W maximum
2.83 W maximum
|
| Thermal Derating |
IC695ALG608 and ALG616: no derating IC695ALG628: no derating
Module IC695ALG626 has no thermal derating in voltage mode. For thermal derating for module IC695ALG626 in current mode, refer to page 4.
|
| Resolution |
24-bit ADC converted to Floating Point or Integer |
| Input Data Format |
Configurable as floating point IEEE 32-bit or 16-bit integer in a 32-bit field |
| Filter Options |
8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz |
| HART Communications |
Version 5.0 HART protocol supported on modules IC695ALG626 and IC695ALG628. |
| Input Impedance |
>100 kï— voltage inputs |
| Current Input Resistance |
249 ï— ±1% |
| Open Circuit Detection time |
1 second maximum |
| Overvoltage |
±60 VDC continuous, maximum |
| Overcurrent |
±28mA continuous, maximum |
| Normal Mode Noise Rejection in dB |
|
At 50Hz |
At 60Hz |
| 8 Hz filter |
85 |
85 |
| 12 Hz filter |
85 |
85 |
| 16 Hz filter |
35 |
62 |
| 40 Hz filter |
3 |
6 |
| 200 Hz filter |
0 |
0 |
| 500 Hz |
0 |
0 |
| Common Mode Noise Rejection |
120dB minimum @ 50/60 Hz with 8 Hz filter 110dB minimum @ 50/60 Hz with 12 Hz filter |
| Channel-Channel DC Crosstalk |
-80 dB minimum (single ended mode)
-80 dB minimum (differential mode, grounded common)
-60 dB minimum (differential mode, floating common)
|
|
Isolation Voltage terminal block to
backplane/chassis
|
Opto-isolated, transformer isolated
250 VAC continuous/1500 VAC for 1 minute
|
| |
|
|
|
|
|
|
Analog Module Scan Time (in milliseconds)
Configured Filter
8 Hz filter
12 Hz filter
16 Hz filter
40 Hz filter
200 Hz filter
500 Hz filter [with filtering and rate detection disabled]
Configured Filter
8 Hz filter
12 Hz filter
16 Hz filter
40 Hz filter
200 Hz filter
500 Hz filter
[with filtering and rate
detection disabled]
|
The module scan for analog signals can consist of up to four acquisition cycles. Each cycle includes a specific set of channels. Total Scan Time depends on the number of acquisition cycles
in the scan, the configured filter option, and whether channels are analog or HART.
|
| Number of Acquisition Cycles in the Scan (IC695ALG608/616/626/628- Ex and earlier) |
| 1 |
2 |
3 |
4 |
| Analog |
HART |
Analog |
HART |
Analog |
HART |
Analog |
HART |
| 121 |
128 |
241 |
254 |
362 |
380 |
482 |
506 |
| 81 |
88 |
161 |
174 |
242 |
260 |
322 |
346 |
| 61 |
68 |
121 |
134 |
182 |
200 |
242 |
266 |
| 21 |
28 |
41 |
54 |
62 |
80 |
82 |
106 |
| 5 |
12 |
9 |
22 |
14 |
32 |
18 |
42 |
| 3 |
N/A |
5
[6]
|
N/A |
7
[9]
|
N/A |
9
[12]
|
N/A |
| Number of Acquisition Cycles in the Scan (C695ALG608/616/626/628- Fx and later) |
| 1 |
2 |
3 |
4 |
| Analog |
HART |
Analog |
HART |
Analog |
HART |
Analog |
HART |
| 122 |
124 |
247 |
248 |
367 |
375 |
494 |
500 |
| 82 |
85 |
164 |
169 |
247 |
255 |
329 |
337 |
| 62 |
65 |
127 |
130 |
188 |
191 |
252 |
258 |
| 25 |
26 |
50 |
50 |
76 |
72 |
100 |
93 |
| 6 |
12 |
12 |
17 |
19 |
24 |
26 |
32 |
| 3 |
N/A |
7
[6]
|
N/A |
11
[9]
|
N/A |
15
[12]
|
N/A |
| HART Data Scan Time (in seconds) |
The HART data scan can consist of up to four acquisition cycles (similar but asynchronous to the analog scan time). Each cycle includes a specific set of channels. Total HART scan time depends on the number of channels enabled for HART within a specific set of channels, number of retries,
enabling/disabling of slot variables, and use and configuration settings of pass-thru commands.
|
| Channels in Group Enabled for HART: |
Each HART Data channel updates every: |
| One |
0.7 second (typical) |
| Two |
1.9 seconds (typical) |
| Three |
3.0 seconds (typical) |
| Four |
4.0 seconds (typical) |
|
Calibrated Accuracy In the presence of severe RF interference
(IC 801-3, 10V/M),
accuracy may be degraded by ±1.5% of range.
|
From 13°C – 33°C:
±5V, ±10V, ± 20 mA: 0.05% of range.
0 to 10V, 0 to 5V, 1 to 5V, 0 to 20 mA: 0.1% of range.
4 to 20 mA: 0.125% of range.
|
|
From 0°C – 60°C:
0 to 10V, 0 to 5V, 1 to 5V: 0.2% of range.
0 to 20 mA: 0.25% of range.
4 to 20 mA: 0.3125% of range.
±5V, ±10V: 0.1% ±20 mA: 0.125% of range.
|
| Calibration Interval |
12 months typical to meet accuracy specifications over time. Offset can be applied as a periodic calibration adjustment. |
