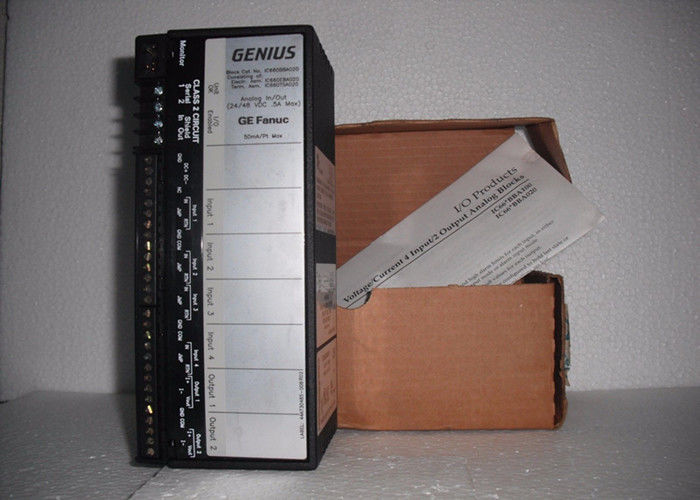

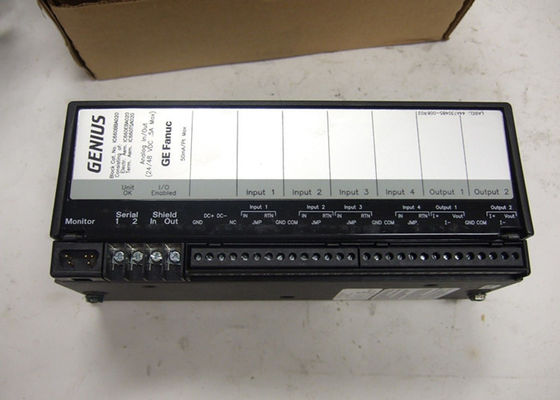

GE Fanuc IC660TSA020 terminal assembly is a terminal assembly for the I/O block

The GE Fanuc IC660TSA020 terminal assembly is a terminal assembly for the IC660BBA020 I/O block. The IC660BBA020 I/O block is a DC analog I/O block.

The IC660BBA020 is a voltage/current analog block in the GE Fanuc Genius I/O series. It has four input and two output circuits. Two types of analog blocks are available with a power supply of 115 VAC and 24/48 VDC. IC660BBA020 supports five analog ranges: 0-10 volts DC; -10 volts DC to +10 volts DC; -5 volts DC to +5 volts DC; 0-5 volts DC; and 4-20 mA/1-5 volts DC. The internal power supply of this block can drive a current load of 300 Ohms. Configurable block features include independent scaling; fault reports which can be enabled or disabled depending on input/output; selectable input filter time up to 1024ms; powerup default values for each output; and Low/High Alarm detection, among others.

IC660BBA020 is compatible with any handheld monitor IC66*HHM500, though HHM501 requires a change in configuration. The serial bus uses terminals 1 to 4 with AWG wires. Field devices use terminal 5 to 32 with AWG wires. Terminals 6 (DC+) and 7 (DC-) connect the power source to the 24/48 VDC. H and N terminals connect the 115 VAC block with the 250V, 1/8Amp slow blow fuse. Terminals 5, 12, 28, and 20 are for ground. Three terminals named common are for a source. The user can connect input voltage device between V+ and IN and V- and RTN terminal in series. The user can connect output voltage device to terminals COM and VOUT. JMP terminal is for jumper connection. Terminals I+ and I- are for the current mode. The first four input circuits convert incoming current or voltage signal to digital count with optional scaling. Circuit numbers 5 and 6 give output scaled digital count from CPU. I/O Enabled and Unit OK LEDs indicate the operating status of the block. The diagnostics system indicates fault messages.

Technical Specifications

Rated Voltage: 24/48 VDC
of Points: 4 Inputs / 2 Outputs
Input Range: 0-10 VDC, -10 to +10 VDC, -5 to +5 VDC, 0-5 VDC, 4-20 mA
Output Range: 0-10 VDC, -10 to +10 VDC, -5 to +5 VDC, 0-5 VDC, 4-20 mA
Operating Voltage: 18 - 56 VDC
Points per Common: One group of 4 Inputs and one group of 2 Outputs
