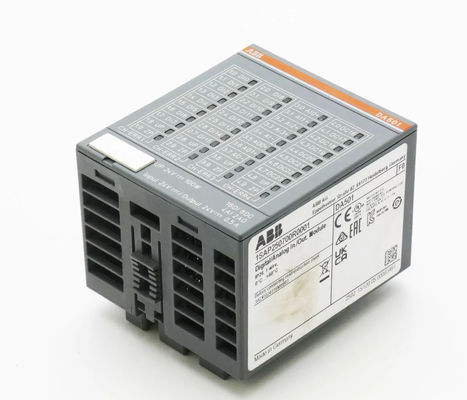

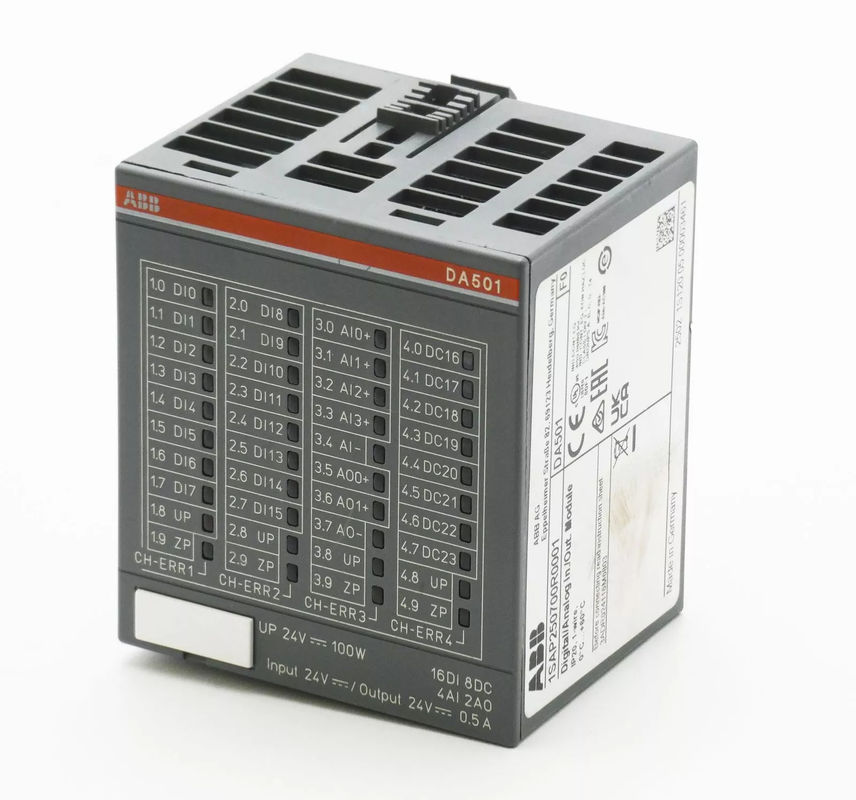

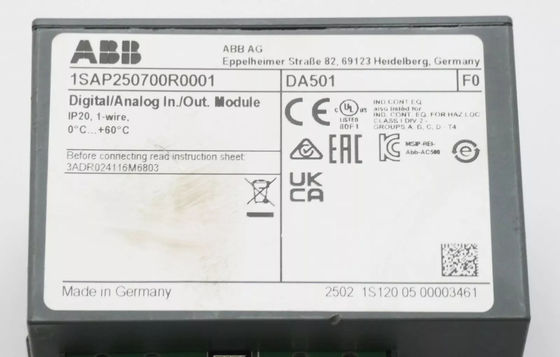

DA501 1SAP250700R0001 Digital I O Module ABB Brand New Original

DA501 1SAP250700R0001 Digital I O Module ABB Brand New Original

Description:

General Information
Extended Product Type: DA501

Product ID: 1SAP250700R0001
ABB Type Designation: DA501

EAN: 4016779681094

Catalog Description: Digital/analog I/O module. 16 DI: 24VDC. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A (DA501)

Long Description: DA501: S500 Digital/analog I/O module. 16 DI: 24VDC. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A. 1-wire.

Ordering CN8: 85389091

Invoice Description: Digital/analog I/O module. 16 DI: 24VDC. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A (DA501)
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece

Selling Unit of Measure: piece

Dimensions
Product Net Weight: 0.121 kg
Product Net Depth / Length: 62 mm
Product Net Height: 76 mm
Product Net Width: 67.5 mm
Gross Weight: 0.145 kg

Package Level 1 Depth / Length: 84 mm
Package Level 1 Height: 72 mm
Package Level 1 Width: 71 mm
Package Level 1 Units: 1 carton

Technical Function: 16 DI: 24VDC. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A
Analog Inputs: 4

Input Signal: U, I, RTD, DI
Analog Outputs: 2
Output Signal: U, I
Resolution: Analog Input 13 bit
Analog Output 13 bit

Number of Digital Inputs: 16
Number of Digital Configurable I/Os: 8
Input Voltage Type: DC
Input Voltage (Uin): 24 V DC
Input Current: 5 mA

Maximum Input Voltage: 30 V
Delay Time (τ): 0.1 … 32 ms
Output: Transistor
Output Voltage Type: DC
Output Voltage (Uout): 24 V DC

Output Current: 0.5 A
Degree of Protection: Housing IP20
Rated Voltage (Ur): 24 V DC
Supply Voltage: Rated 24 V DC
Range 20.4 … 28.8 V DC

Ambient Air Temperature: Operation 0 ... +60 °C
Storage -40 ... +70 °C

Additional Information
Product Main Type: DA501
Product Name: Distributed Automation I/Os

Classifications eClass: 27-24-22-02
ETIM 8: EC001421 - PLC analogue/digital I/O-module
UNSPSC: 32151705

Environmental SCIP: 1fc7f915-57ff-434f-8915-10ff0f449771 Germany (DE)
WEEE B2C / B2B: Business To Business
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
