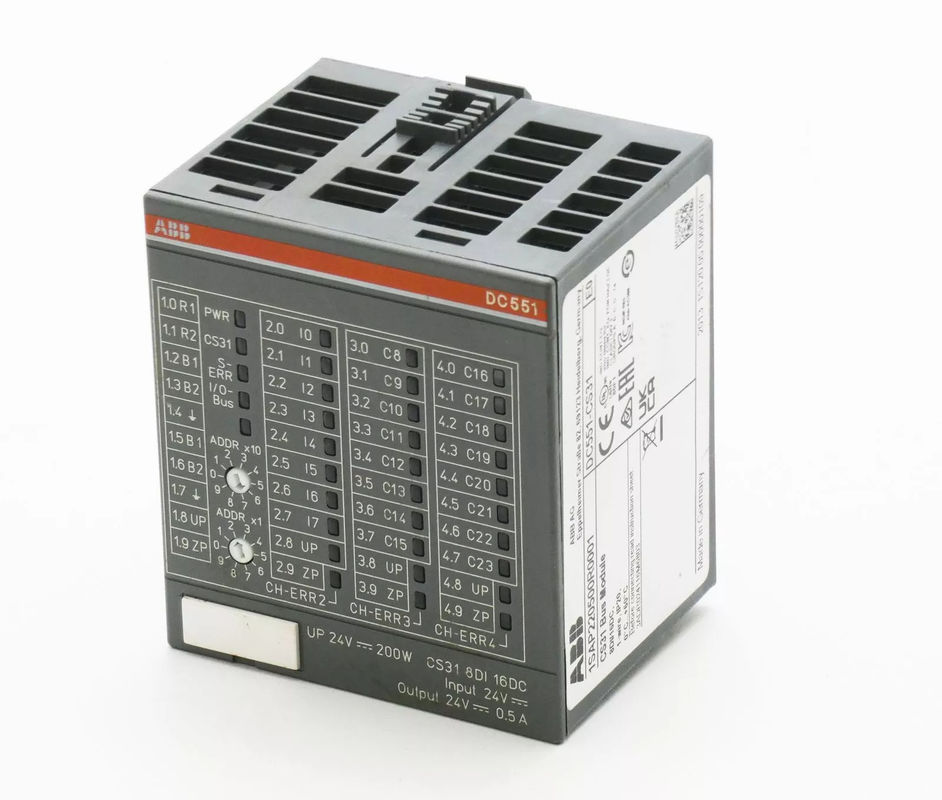

I/O Digital Module ABB Brand DC-551 CS31 New In Original Box

I/O Digital Module ABB Brand DC-551 CS31 New In Original Box

Description:

Extended Product Type: DC551-CS31
Product ID: 1SAP220500R0001
ABB Type Designation: DC551-CS31
EAN: 4016779649056

Catalog Description:

Interface module. CS31 slave. 8 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A (DC551-CS31)

Long Description: DC551-CS31: S500 Interface module. CS31 slave. 8 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A. Extendable by up to 7 I/O modules

Ordering CN8: 85389091
Invoice Description: Interface module. CS31 slave. 8 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A (DC551-CS31)
Made To Order: N

Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit of Measure: piece

Dimensions

Product Net Weight: 0.12 kg
Product Net Depth / Length: 62 mm
Product Net Height: 76 mm
Product Net Width: 67.5 mm
Gross Weight: 0.144 kg

Package Level 1 Depth / Length: 84 mm
Package Level 1 Height: 72 mm
Package Level 1 Width: 71 mm
Package Level 1 Units: 1 carton

Technical Function: CS31 slave. 8 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A

Number of Hardware Interfaces:

Industrial Ethernet 0
Other 0
Parallel 0
RS-232 0
RS-422 0

RS-485 0
Serial TTY 0
USB 0
Wireless 0
Number of Analog Configurable I/Os: 0

Analog Inputs: 0
Analog Outputs: 0
Number of Digital Inputs: 8
Number of Digital Outputs: 0
Number of Digital Configurable I/Os: 16

Input Voltage Type: DC
Input Voltage (Uin): 24 V DC
Input Current: 5 mA
Delay Time (τ): 0.1 … 32 ms
Output: Transistor

Output Voltage Type: DC
Output Voltage (Uout): 24 V DC
Output Current: 0.5 A
Output Voltage Maximum: 20.4 … 28.8 V
Degree of Protection: IP20

Supply Voltage: 20.4 ... 28.8 V DC
Ambient Air Temperature: Operation 0 ... +60 °C
Storage -40 ... +70 °C

Additional Information
Product Main Type: DC551
Product Name: Distributed Automation I/Os

Classifications eClass: 27-24-26-07
ETIM 8: EC001604 - Fieldbus, decentr. periphery - communication module
UNSPSC: 32151705
