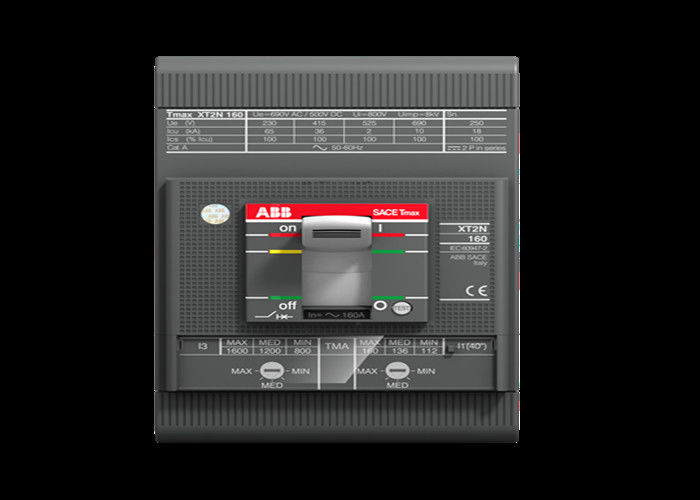

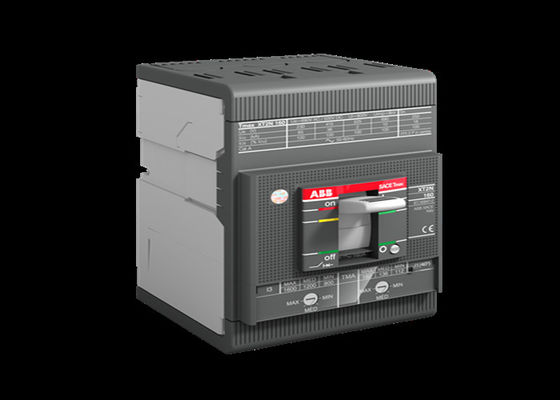

Name: ABB 1SDA067604R1 XT2H 160 TMA 160-1600 3p F F FIXED THREE-POLE WITH FRONT TERMINALS
Brand: Wisdomlong Technology CO.，LTD
SKU: 1SDA067604R1
Price: 1.00 USD
Availability: InStock

Home Products Other

ABB 1SDA067604R1 XT2H 160 TMA 160-1600 3p F F FIXED THREE-POLE WITH FRONT TERMINALS

Product Details:

Place of Origin:	China (CN)
Brand Name:	ABB
Certification:	CE
Model Number:	1SDA067604R1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Brand:	ABB	Model:	1SDA067604R1
Product ID:	1SDA067604R1	Long Descriptio:	C.BREAKER TMAX XT2H 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 160 I3=800...1600 A
CN8::	85389091	Catalog Description:	XT2H 160 TMA 160-1600 3p F F

ABB 1SDA067604R1 XT2H 160 TMA 160-1600 3p F F FIXED THREE-POLE WITH FRONT TERMINALS

General Information

Extended Product Type:
XT2H 160 TMA 160-1600 3p F F
Product ID:
1SDA067604R1
EAN:
8015644015008
Catalog Description:
XT2H 160 TMA 160-1600 3p F F
Long Description:
C.BREAKER TMAX XT2H 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 160 I3=800...1600 A

Ordering
Order Code US and Canada:
XT2HE3160BFF000XXX
E-Number (Finland):
3638054
EAN:
8015644015008
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362090

Dimensions
Product Net Width:
90 mm
Product Net Height:
130 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
1.4 kg

Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
130 mm
Package Level 1 Height:
208 mm
Package Level 1 Depth / Length:
145 mm
Package Level 1 Gross Weight:
1.659 kg
Package Level 1 EAN:
8015644015008

ABB EcoSolutions

ABB EcoSolutions:
Yes

Circular Value

Circular Design Principles Recyclability Rate:
Design for Closing Resource Loops - Standard EN45555 - 55.70 %
Conflict Minerals Reporting Template (CMRT):
9AKK108467A5658
End of Life Instructions:
9AKK108468A2348
Group Waste to Landfill Target:
UL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA:
9AKK108467A8326

Eco Transparency

Environmental Product Declaration - EPD:
9AKK108469A1856
9AKK108468A1891

Environmental
Environmental Information:
9AKK108467A6707
REACH Declaration:
9AKK108466A1425
RoHS Information:
9AKK108466A1424
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Additional Information

Circuit Breaker Type to be Associated:
Power Distribution
Connecting Capacity Main Circuit:
Busbar 32.5..100 mm²
Current Type:
AC/DC
Electrical Durability:
120 cycles per hour
8000 cycle
Mechanical Durability:
240 cycles per hour
25000 cycle
Number of Poles:
3
Opening Time:
CB with SOR 15 ms
CB with UVR 15 ms
Order Multiple:
1 piece
Power Loss:
at Rated Operating Conditions per Pole 16.15 W
Product Main Type:
SACE Tmax XT
Product Name:
Moulded Case Circuit Breaker
Product Type:
Automatic Circuit Breaker
Rated Current (In):
160 A
Rated Frequency (f):
50 / 60 Hz
Rated Voltage (Ur):
690 V
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii):
800…1600 A
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics):
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 70 kA
Show more
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 70 kA
Show more
Rated Uninterrupted Current (Iu):
160 A
Recommended Screw Driver:
Main Circuit M6
Release:
TMA
Release Type:
TM
Setting Range:
112...160 A
Short-Circuit Performance Level:
H
Standards:
IEC60947-2
Sub-type:
XT2
Terminal Connection Type:
Front
Terminal Type:
Bolt
Tightening Torque:
6 N·m
Version:
F
CAD Dimensional Drawing:
1SDH002230A1001

ABB 1SDA067604R1 XT2H 160 TMA 160-1600 3p F F FIXED THREE-POLE WITH FRONT TERMINALS 0
