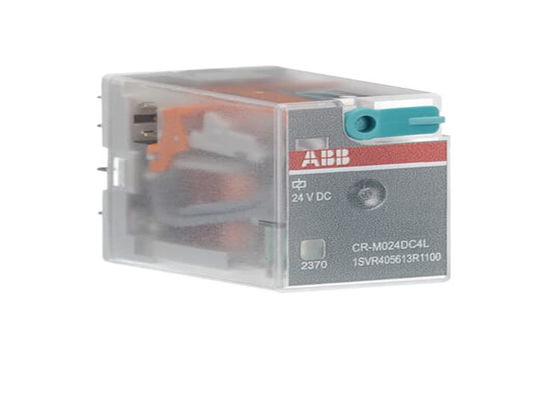

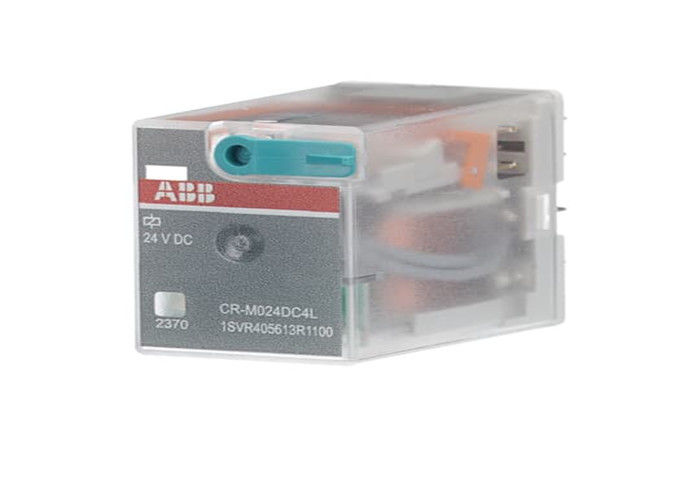

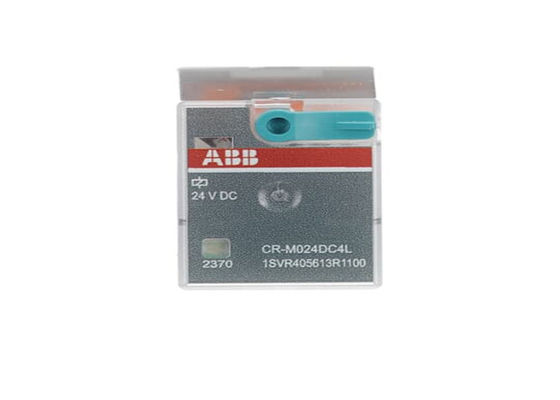

ABB CR-M024DC4L 1SVR405613R1100 pluggable interface relay is a miniature relay.

Product Details:

Place of Origin:	China (CN)
Brand Name:	ABB
Certification:	CE
Model Number:	CR-M024DC4L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Brand:	ABB	Model:	CR-M024DC4L
Product ID:	1SVR405613R1100	CN8::	85364900
Catalog Description:	CR-M024DC4L Pluggable Interface Relay 4c/o, A1-A2=24VDC, 250V/6A, LED	Long Descriptio:	The CR-M024DC4L Pluggable Interface Relay Is A Miniature Relay, Which Is To Be Plugged Into A Suitable ABB CR-M Socket

ABB CR-M024DC4L 1SVR405613R1100 pluggable interface relay is a miniature relay.

General Information

Extended Product Type:
CR-M024DC4L
Product ID:
1SVR405613R1100
EAN:
4013614497728
Catalog Description:
CR-M024DC4L Pluggable interface relay 4c/o, A1-A2=24VDC, 250V/6A, LED
Long Description:
The CR-M024DC4L pluggable interface relay is a miniature relay, which is to be plugged into a suitable ABB CR-M socket. Plugged into a socket, the combination of relay and socket may be seemlessly snap-on mounted onto a DIN Rail.This relay operates with a 24 V DC rated control supply voltage and has a 4 c/o (SPDT) output with contacts rated at 250 V / 6A, enabling the possibility of switching multiple circuits with a single input signal. The relay has an integrated test button which is used for the manual actuation of the relay by locking it's output contacts. The test button facilitates easy testing and commissioning. The relay also has an integrated LED, which provides the visual indication of the energization of the relay coil. Standard sockets, logic sockets, pluggable function modules, holders and markers are available as accessories. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.

Ordering

EAN:
4013614497728
Minimum Order Quantity:
10 piece
Customs Tariff Number:
85364900

Dimensions
Product Net Width:
21.2 mm
Product Net Height:
35.6 mm
Product Net Depth / Length:
27.5 mm
Product Net Weight:
0.033 kg

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
300 V AC
Pilot Duty UL/CSA:
B300
Flammability According to UL94:
HB

Technical

Function:
Pluggable miniature interface relay CR-M
Sub-Function:
Relay with built in LED
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Voltage:
250 V AC
Output:
4 c/o (SPDT) contacts
Output Signal:
250 V / 6 A
Terminal Type:
Flat-Pin Connections
Rated Operational Current AC-12 (Ie):
(230 V) 6 A
Rated Operational Current AC-15 (Ie):
(120 V) 1.5 A
(230 V) 1 A
Rated Operational Current DC-12 (Ie):
(24 V) 6 A
Rated Operational Current DC-13 (Ie):
(24 V) 2 A
(250 V) 0.1 A
Rated Insulation Voltage (Ui):
250 V
Degree of Protection:
IP40
Mounting Position:
1
Standards:
CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61810-1
UL 508

Environmental

Ambient Air Temperature:
Operation -40 ... +70 °C
Storage -40 ... +85 °C
Maximum Operating Altitude Permissible:
Without Derating 2000 m

Material Compliance

Conflict Minerals Reporting Template (CMRT):
9AKK108467A5658
RoHS Information:
1SVD982021-0003
RoHS Status:
Following EU Directive 2011/65/EU
