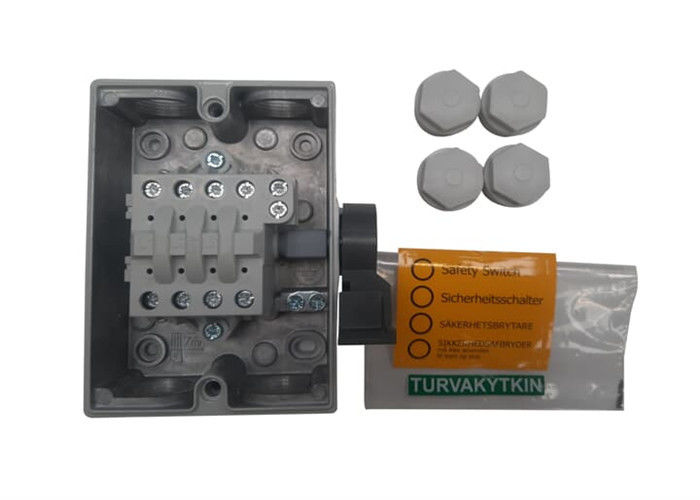

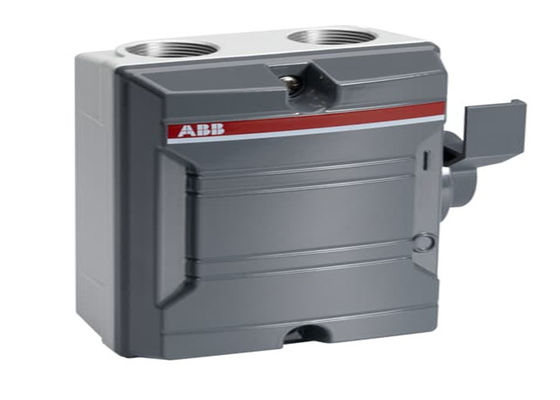

ABB LBAS316TPN 2CMA142430R1000 Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC.

ABB LBAS316TPN 2CMA142430R1000 Safety switch, 3-p. 415V AC23 16A, 7.5kW. Mounted auxiliary contact: 1NO0NC.


General Information


Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363030
Country of Origin:
Bulgaria (BG)






Dimensions
Product Net Width:
111 mm
Product Net Height:
130 mm
Product Net Depth / Length:
60 mm
Product Net Weight:
0.57 kg





Technical
Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 25 A
(500 V) 25 A
(690 V) 16 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 16 A
(500 V) 16 A
(690 V) 10 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 7.5 kW
(500 V) 7.5 kW
(690 V) 7.5 kW
Conventional Free-air Thermal Current (Ith):
32 A
Conventional Thermal Current (Ithe):
Fully Enclosed 32 A
Rated Impulse Withstand Voltage (Uimp):
8 kV
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 690 V
Rated Operational Voltage:
Main Circuit 690 V
Handle Color:
Grey
Handle Type:
Side-operated handle
Standards:
IEC 60947-1, -3
Number of Poles:
3
Neutral Type:
Fixed neutral
Connecting Capacity Main Circuit:
Screw Clamp 0.75 ... 10 mm²
Screw Clamp / PE Terminal 1pc,0.75 ... 10 mm²
Cable Cross-Section:
0.75 ... 10 mm²
Wire Stripping Length:
7 mm
Recommended Screw Driver:
Main Circuit Pozidriv 2
Cable Entry Position:
Top and/or Bottom
Cable Outlets Per Side:
2xM25 / 2xM25
Degree of Protection:
acc. to IEC 60529 IP65
Impact Resistance Rating:
Housing IK09
Enclosure Material:
Aluminium
Maximum Mounted Auxiliary Contacts:
2 NO, 0 NC
Mounted Auxiliary Contacts:
1 NO, 0 NC
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
1
Tightening Torque:
Main Circuit 1.2 N·m
Rated Current (In):
16 A


Technical UL/CSA

Wire Stripping Length:
7 mm
Recommended Screw Driver:
Main Circuit Pozidriv 2
Tightening Torque:
Main Circuit 1.2 N·m

Environmental

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
2009-01
Toxic Substances Control Act - TSCA:
1SCC340095D0201


Container Information
Package Level 1 Units:
box 1 piece
Package Level 1 Width:
112 mm
Package Level 1 Depth / Length:
131 mm
Package Level 1 Height:
62 mm
Package Level 1 Gross Weight:
0.57 kg
Package Level 1 EAN:
7392696424301


Classifications

Object Classification Code:
Q
2CMT005069
ETIM 7:
EC000216 - Switch disconnector
ETIM 8:
EC000216 - Switch disconnector
ETIM 9:
EC000216 - Switch disconnector (low voltage)
UNSPSC:
39122205
IDEA Granular Category Code (IGCC):
5166 >> Safety switch
eClass:
V11.1 : 27371403
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3601681
E-Number (Norway):
1428735
