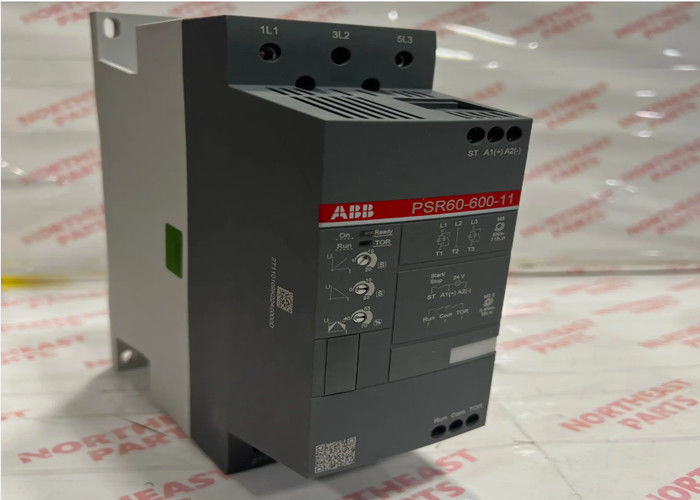

ABB PSR60-600-11 1SFA896112R1100 PSR60-600-11 Softstarter - 60 A - 208 ... 600 V AC

ABB PSR60-600-11 1SFA896112R1100 PSR60-600-11 Softstarter - 60 A - 208 ... 600 V AC


General Information

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
1SFC132012C0201
Instructions and Manuals:
1SFC132079M9901
CAD Dimensional Drawing:
2CDC001079B0201
Wiring Diagram:
N/A

Dimensions

Product Net Width:
180 mm
Product Net Height:
220 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 15 kW
(400 V) 30 kW
(500 V) 37 kW
Rated Operational Current - In-Line Connection (Ie):
60 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS495 45 ... 63
Integrated Electronic Overload:
No
Adjustable Rated Motor Current Ie:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
IP10
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5 mm²
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR60
Function:
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection:
IP10

Material Compliance

Conflict Minerals Reporting Template (CMRT):
9AKK108467A5658
REACH Declaration:
2CMT2022-006481
RoHS Information:
2CMT2022-006500
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA:
2CMT2023-006524
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:
CQC2008010304295498
Declaration of Conformity - CCC:
2020980304001090
Declaration of Conformity - CE:
2CMT004861

Container Information

Package Level 1 Width:
195 mm
Package Level 1 Depth / Length:
86 mm
Package Level 1 Height:
230 mm
Package Level 1 Gross Weight:
2.3 kg
Package Level 1 EAN:
7320500477236
Package Level 1 Units:
box 1 piece

Classifications

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
