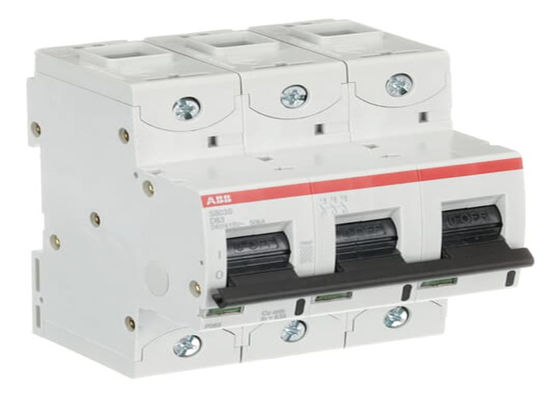

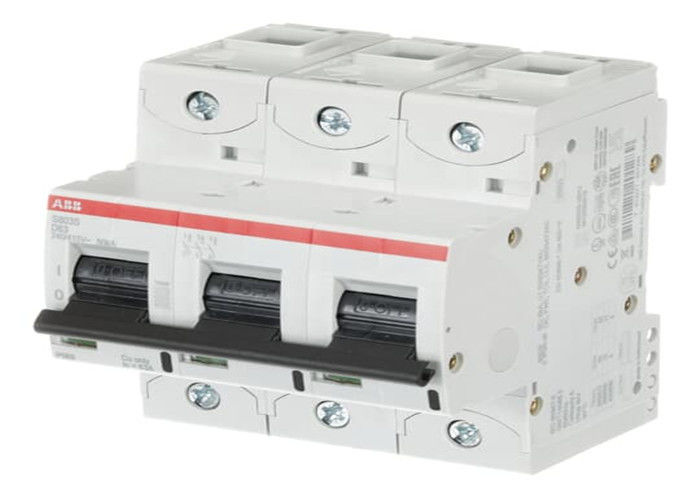

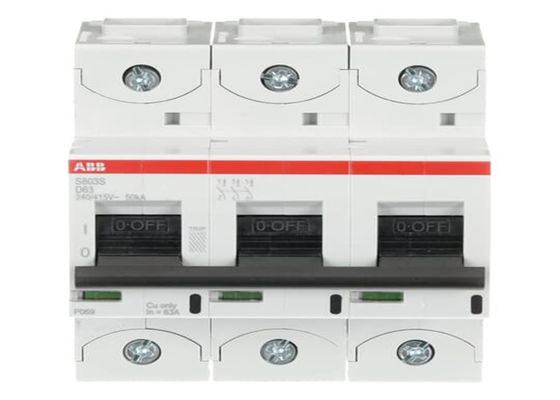

Name: ABB 2CCS863001R0631 The S803S-D63 is a 3-pole High Performance Circuit breaker with D-Characteristic
Brand: Wisdomlong Technology CO.，LTD
SKU: S803S-D63
Price: 1.00 USD
Availability: InStock

Home Products Other

ABB 2CCS863001R0631 The S803S-D63 is a 3-pole High Performance Circuit breaker with D-Characteristic

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Certification:	CE
Model Number:	S803S-D63

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	New in original box
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	1

Contact Now

Detailed Product Description

Brand:	ABB	Model:	S803S-D63
Product ID:	2CCS863001R0631	Customs Tariff Number:	807785315
Catalog Description:	S803S-D63 High Performance MCB	Long Description:	The S803S-D63 Is A 3-pole High Performance Circuit Breaker With D-Characteristic, With Cage Terminal And A Rated Current Of 63 A.

ABB 2CCS863001R0631 The S803S-D63 is a 3-pole High Performance Circuit breaker with D-Characteristic

General Information

Extended Product Type:
S803S-D63
Product ID:
2CCS863001R0631
EAN:
7612271201289
Catalog Description:
S803S-D63 High Performance MCB
Long Description:
The S803S-D63 is a 3-pole High Performance Circuit breaker with D-Characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-D63 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-D63 more comfortable. Due to the fast arc extinction of S803S-D63 your application will be secured.

Technical

Standards:
IEC/EN 60947-2
IEC/EN 60898-1
UL 1077
Tripping Characteristic:
D
Type of Residual Current:
Standard Version
Rated Operational Voltage:
acc. to IEC 60898-1 400 V AC
acc. to IEC 60947-2 690 V AC
Operational Voltage:
Maximum 230/400 V AC
Minimum 12 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 690 V
Rated Impulse Withstand Voltage (Uimp):
8 kV
Input Voltage Type:
AC/DC
Rated Current (In):
63 A
Rated Short-Circuit Capacity:
(400 V AC) 25 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(415 V AC) 50 kA
(440 V AC) 30 kA
(500 V AC) 15 kA
(690 V AC) 6 kA
(375 V DC) 30 kA
Rated Service Short-Circuit Breaking Capacity (Ics):
(415 V AC) 40 kA
(440 V AC) 22.5 kA
(500 V AC) 11 kA
(690 V AC) 4 kA
(375 V DC) 30 kA
Frequency (f):
50 ... 60 Hz
Rated Frequency (f):
50/60 Hz
Power Loss:
19.2 W
at Rated Operating Conditions per Pole 6.4 W
Contact Position Indication:
ON / OFF / TRIP
Energy Limiting Class:
3
Electrical Endurance:
6000 cycle
Mechanical Endurance:
6000 cycle
Number of Protected Poles:
3
Number of Poles:
3
Overvoltage Category:
IV
Tightening Torque:
3.5 N·m
31 in·lb
Release Type:
D
Actuator Marking:
I / O
Housing Material:
Insulation group I, RAL 7035
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
Any
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
Yes
Remarks:
Connection from top and bottom Connecting with CU only IP40 in enclosure with cover Cage terminal with captive screw
Connecting Capacity:
Flexible 0 … 50 mm²
Rigid 0 … 70 mm²
Terminal Type:
Screw Terminals

Material Compliance

RoHS Information:

9AKK107680A3903

2CCC005083D0202

RoHS Status:

Following EU Directive 2011/65/EU

RoHS Date:

20170426

REACH Declaration:

9AKK108469A6125

REACH Information:

No data - If REACH inform is not yet available for a certain product

REACH Date:

20190320

Conflict Minerals Reporting Template (CMRT):

9AKK108468A3363

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Reference Ambient Air Temperature:
acc. to IEC60947-2 30 °C
acc. to EN60898-1 30 °C
Degree of Protection:
IP20
Pollution Degree:
3
Resistance to Vibrations:
1 mm 2 - 13.2 Hz
0.7g with Load 100% x Ie 13.2 - 100 Hz
Environmental Information:
2CCY413207D0203

Technical UL/CSA

Interrupting Rating acc. to UL1077:
(480Y / 277 V AC) 14 kA
(600Y / 347 V AC) 6 kA

Dimensions

Width in Number of Modular Spacings:
4.5
Product Net Width:
81 mm
Product Net Height:
95 mm
Product Net Depth / Length:
82.5 mm
Product Net Weight:
735 g
Size:
3 modules
Built-In Depth (t2):
82.5 mm
Dimension Diagram:
2CCC413003C0201

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
770 g
E-Number (Finland):
3212258
E-Number (Switzerland):
807785315

Certificates and Declarations

CB Certificate:
9AKK107680A0857
CCC Certificate:
9AKK108469A3021
Declaration of Conformity - CE:
2CCC005083D0202
DNV GL Certificate:
2CCC413018D0201
ESTI Certificate:
2CCC413020D0101
KC Certificate:
9AKK107680A0932
LR Certificate:
2CCC413017D0201
RINA Certificate:
2CCC413019D0201
UL Certificate:
9AKK107680A2286
VDE Certificate:
2CCC413039D0601

Installation

Instructions and Manuals:
2CCC413016M0008

Popular Downloads

Data Sheet, Technical Information:
9AKK108468A9560
9AKK108468A9561
9AKK108468A9562

Classifications

ETIM 8:
EC000042 - Miniature circuit breaker (MCB)
ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business
CN8:
85362020
UNSPSC:
39121603
eClass:
V11.0 : 27141901
IDEA Granular Category Code (IGCC):
4899 >> Miniature circuit breaker (MCB) screw-in model
Object Classification Code:
F
