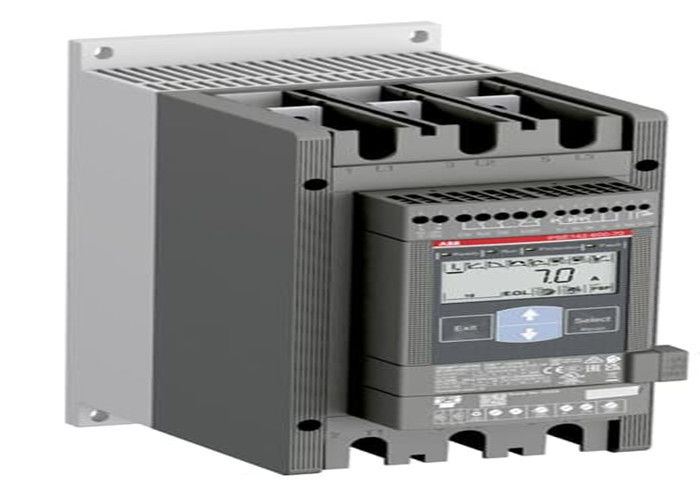

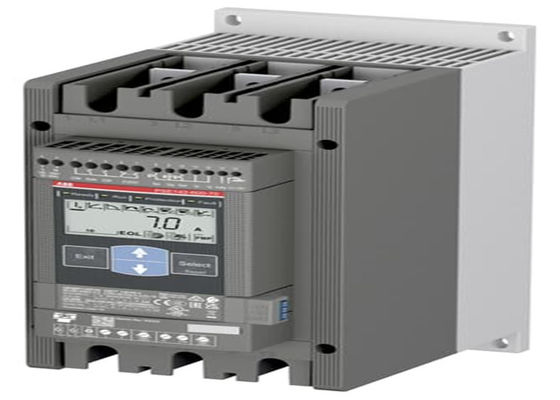

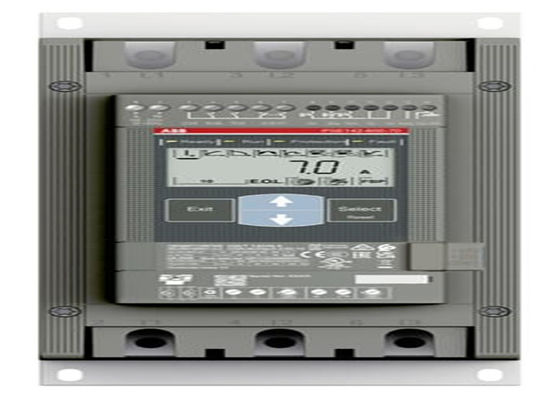

ABB PSE142-600-70 1SFA897110R7000 has a rated maximum operational current of 142 A with an operating voltage span

ABB PSE142-600-70 1SFA897110R7000 has a rated maximum operational current of 142 A with an operating voltage span


General Information

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
1SFC132012C0201
Instructions and Manuals:
1SFC132057M0201
CAD Dimensional Drawing:
2CDC001079B0201
Wiring Diagram:
N/A

Dimensions

Product Net Width:
130 mm
Product Net Height:
295 mm
Product Net Depth / Length:
220 mm
Product Net Weight:
4.4 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 40 kW
(400 V) 75 kW
(500 V) 90 kW
Rated Operational Current - In-Line Connection (Ie):
143 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Adjustable Rated Motor Current Ie:
30 ... 100 %
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
IP00
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5 mm²
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 18 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE142
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 159.3
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Degree of Protection:
IP00

Material Compliance

Conflict Minerals Reporting Template (CMRT):
9AKK108467A5658
REACH Declaration:
2CMT2022-006481
RoHS Information:
2CMT2022-006500
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA:
2CMT2023-006524
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

CQC Certificate:
CQC2011010304468089
Declaration of Conformity - CCC:
2020980304001545
Declaration of Conformity - CE:
2CMT2015-005447

Container Information

Package Level 1 Width:
203 mm
Package Level 1 Depth / Length:
282 mm
Package Level 1 Height:
363 mm
Package Level 1 Gross Weight:
5.4 kg
Package Level 1 EAN:
7320500400685
Package Level 1 Units:
box 1 piece

Classifications

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
