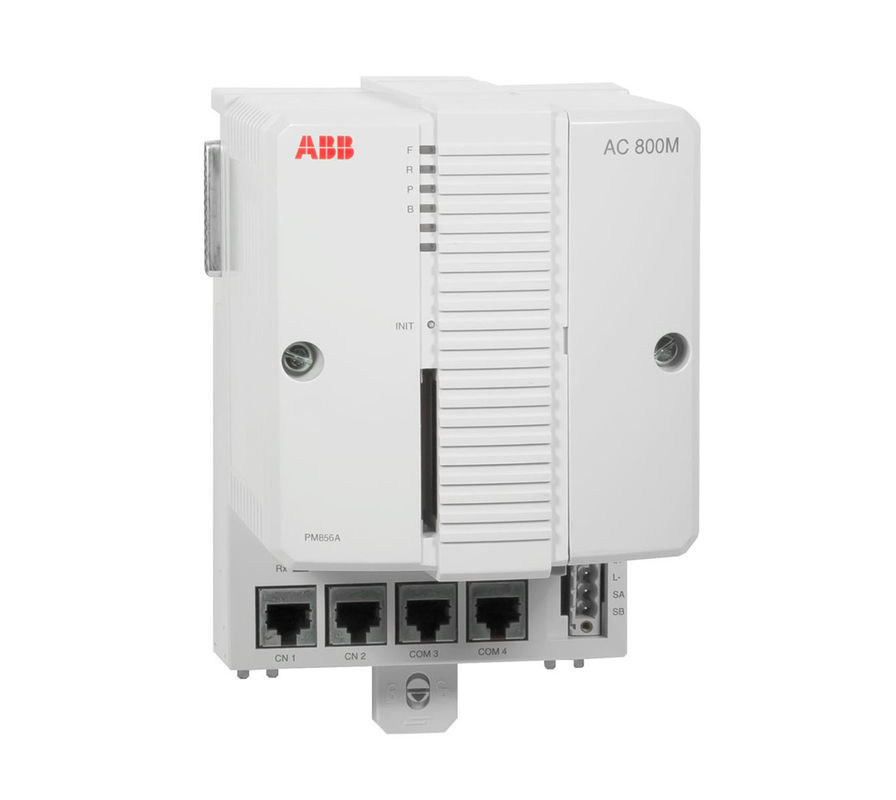

ABB AC800M Series PM856AK01 Processor Module Brand Original New
Description:
Product ID: 3BSE066490R1
ABB Type Designation: PM856AK01
Catalog Description: PM856AK01 Processor Unit
Long Description: 24MHz and 16MB
Package including:
- PM856A, CPU
- TP830, Baseplate
- TB850, CEX-bus terminator
- TB807, ModuleBus terminator
- Battery for memory backup (4943013-6)
- No license included
Product Type: Central_Unit
Ordering
HS Code: 853710-- Boards, panels, consoles, desks, cabinets and other bases, equipped with two or more apparatus of heading 85.35 or 85.36, for electric control or the distribution of electricity, including those incorporating instruments or apparatus of Chapter 90, and numerical control apparatus, other than switching apparatus of heading 85.17.- For a voltage not exceeding 1,000 V
Customs Tariff Number: 85371091
Dimensions
Product Net Depth / Length: 155 mm
Product Net Height: 200 mm
Product Net Width: 130 mm
Product Net Weight: 1.1 kg
Classifications
Dangerous Goods UN Classification:
Class 9: Miscellaneous Dangerous Substances and Articles, Including Environmentally Hazardous Substances
Dangerous Goods UN Number: UN3091-PI970
Environmental
RoHS Status: Following EU Directive 2011/65/EU
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries: 1
Battery Chemical Composition: Lithium
Battery Type: Portable
Battery Weight: 9 g
SCIP: ab16e437-acb8-454f-a9e5-3f7c21e47215 Sweden (SE)
Features and benefits
- Reliability and simple fault diagnosis procedures
- Modularity, allowing for step-by-step expansion
- IP20 Class protection without the requirement for enclosures
- The controller can be configured with 800xA control builder
- The controller has full EMC certification
- Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
General info
| Article number |
3BSE066490R1 (PM856AK01) |
| Redundancy |
No |
| High Integrity |
No |
| Clock Frequency |
24 MHz |
| Performance, 1000 boolean operations |
0.46 ms |
| Performance |
0.46 ms |
| Memory |
16 MB (from 800xA 5.1 FP4) |
| RAM available for application |
10.337 MB (from 800xA 5.1 FP4) |
| Flash memory for storage |
Yes |
Detailed data
| Processor type |
MPC860 |
| Switch over time in red. conf. |
NA |
| No. of applications per controller |
32 |
| No. of programs per application |
64 |
| No. of diagrams per application |
128 |
| No. of tasks per controller |
32 |
| Number of different cycle times |
32 |
| Cycle time per application programs |
Down to 1 ms |
| Flash PROM for firmware storage |
2MB |
| Power supply |
24 V d.c. (19.2-30 V d.c.) |
| Power consumption +24 V typ/max |
180 / 300 mA |
| Power dissipation typ. |
4.32 W (7.2 W max) |
| Redundant power supply status input |
Yes |
| Built-in back-up battery |
Lithium, 3.6 V |
| Real-time clock stability |
100 ppm (approx. 1 h/year) |
| Clock synchronization |
1 ms between AC 800M controllers by CNCP protocol |
| Event queue in controller per OPC client |
Up to 3000 events |
| AC 800M transm. speed to OPC server |
36-86 events/sec ,113-143 data messages/sec |
| Comm. modules on CEX bus |
12 |
| Supply current on CEX bus |
Max 2.4 A |
| I/O clusters on Modulebus with non-red. CPU |
1 electrical, 7 optical |
| I/O clusters on Modulebus with red. CPU |
NA |
| I/O capacity on Modulebus |
Max 96 I/O modules |
| Modulebus scan rate |
0 - 100 ms (actual time depending on number of I/O modules) |
| Supply current on Electrical Modulebus |
24 V : max 1.0 A
5 V : max 1.5 A |
| Ethernet channels |
2 |
| Ethernet interface |
Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole) |
| Control Network protocol |
MMS (Manufacturing Message Service) and IAC (Inter Application Communication) |
| Recommended Control Network backbone |
100 Mbit/s switched Ethernet |
| RS-232C interface |
2 (one general, 1 for service tool) |
| RS-232C interface (COM3) (non red. only) |
RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support |
| RS-232C interface (COM4) (non red. only) |
RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support |
