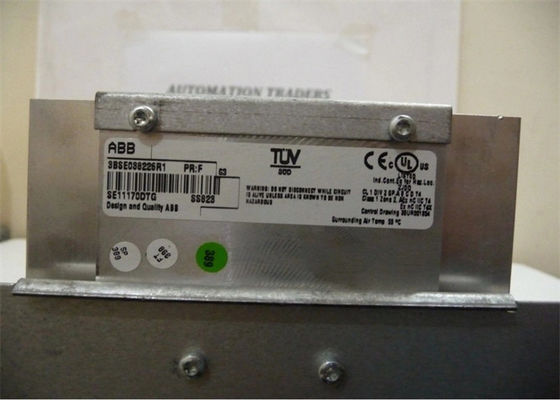

ABB AC800M Series Power Volting Unit 3BSE038226R1 New In Box

ABB AC800M Series Power Volting Unit 3BSE038226R1 New In Box

Description:

Product ID: 3BSE038226R1
ABB Type Designation: SS823
Catalog Description: SS823 Power Voting Unit

Long Description: Required in a High Integrity 800xA system. One per power supply unit, also at redundant configurations.

Input d.c. 24 V. Dual 24 V to single 24 V, 20A.
DIN rail mounted.

Product Type: Power_Supply

Ordering

HS Code: 850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters

Customs Tariff Number: 85044082

Dimensions

Product Net Depth / Length: 145 mm
Product Net Height: 132 mm
Product Net Width: 116 mm
Product Net Weight: 0.87 kg

Environmental

RoHS Status: Following EU Directive 2011/65/EU
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Number of Batteries: 0
SCIP: 5bfc88a4-22d4-485b-821e-8e0f6a697f4b Sweden (SE)

The Voting Units SS822Z, SS823 and SS832 have beenspecifically designed to work as a control unit within a redundant power supply configuration. The output connections from two Power Supply Units are connected to the Voting Unit.

The Voting Unit separates the redundant Power Supply Units, supervises the voltage supplied, and generates supervision signals to be connected to the power consumer. Green LED’s, mounted on the front panel of the voting unit, provide a visual indication that correct output voltage is being delivered.

Simultaneously with the green LED illuminating, a voltage free contact closes the path to the corresponding “OK connector”. Voting Unit trip levels, are factory preset.
