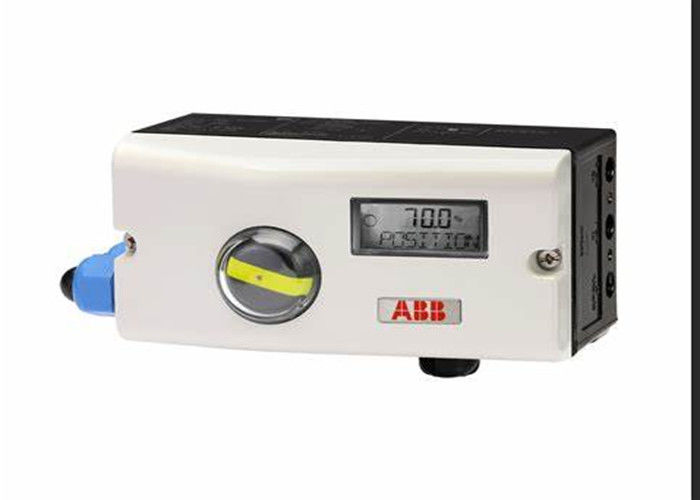

ABB V18345-1020121001 TZIDC Intelligent Positioner Field Instruments

ABB V18345-1020121001TZIDC Intelligent Positioner Field Instruments

V18345-1020121001 Description:

The ABB TZIDC Intelligent Positioner (SKU V18345-1020121001) is designed to deliver precise control for industrial valves. It combines advanced accuracy, versatile control capabilities, and effortless setup through auto stroke functions. This positioner is suitable for mounting on both rotary and linear control valves, offering flexibility in various applications.

• TZIDC-120 Intelligent Positioner: V18345 - intelligent, configurable with indicator and operator panel
• Optional mechanical kit for digital position feedback: 1 - Case made of aluminium, varnished,protection IP 65 (NEMA 4X) for mounting to linear actuators acc. to DIN/IEC 534 / NAMUR or to rotary actuators acc. to VDI/VDE 3845 also ready for integral mounting
• 0
• Input / communication port: 2 - with connector plug for LKS adapter and FSK module for HART communication
• Explosion protection: 0 - without
• Output / safe position (in case of an electrical power failure): 1 - Single acting, fail safe
• Connections: 2 - Cable: Thread 1/2-14 NPT; Air pipe: Thread 1/4-18 NPT
• Option modules for analog or digital position feedback: 1 - Plug-in module analog position feedback (sign. range 4 / 20 mA)

Key Features:

• High-precision control for valves
• Compatibility with rotary and linear actuators
• User-friendly configuration with auto stroke functions
• Communication options: HART, Profibus, and Fieldbus
• Supports single and double acting actuators
• Fail-safe and fail-freeze options
• Intrinsically safe for hazardous environments
• FM/CSA and ATEX approvals for safety compliance
• Built-in operating panel for on-site control and monitoring
• Remote configuration via communication interface

• Manufacturer : ABB
• Product no : V18345-1021120001
• Product type : Electro-Pneumatic Positioner TZIDC
• V18345 : TZIDC = intelligent, configurable with indicator and operator panel
• Case : 10 = Aluminum Case IP 65 (NEMA 4X) No Mechanical Indicator
• Input/Communication : 2 = 4-20ma with LKS Adapter with connector plug for LKS adapter and FSK module for HART communication
• Explosion protection : 1 = FM/CSA
• Output / safe position : 1 = Double Acting, Fail Freeze
• Connections : 2 = Electrical: 1/2-14 NPT; Air: 1/4-18 NPT
• Analog Feedback : 0 = without
• Mech Feedback : 00 = None
• Design : 1 = Standard
• Shipping Weight : 3 Kg

Specific details such as voltage ratings, communication interfaces, supported BACnet features (objects, services), and physical dimensions would be specified in technical datasheets.
