PM866AK02 /PM866K02 Ethernet 10 Module ABB Redundant Processor Digital IO Module Units

PM866AK02 /PM866K02 Ethernet 10 Module ABB Redundant Processor Digital IO Module Units

3BSE050199R6

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

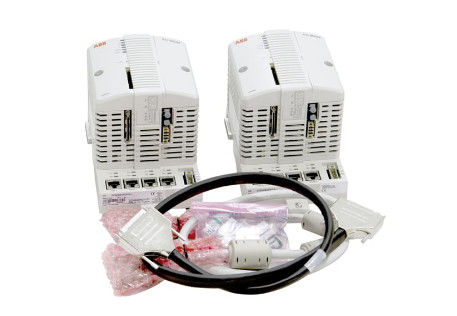

Package including:
2 pcs PM866A, CPU
2 pcs TP830, Baseplate, width =115mm
2 pcs TB807, ModuleBus terminator
1 pcs TK850, CEX-bus expansion cable
1 pcs TK851, RCU-Link cable
2 pcs Battery for memory backup (4943013-6) 1 for each CPU

Features and benefits

• ISA Secure certified - Read more
• Reliability and simple fault diagnosis procedures
• Modularity, allowing for step-by-step expansion
• IP20 Class protection without the requirement for enclosures
• The controller can be configured with 800xA control builder
• The controller has full EMC certification
• Sectioned CEX-Bus using a pair of BC810 / BC820
• Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
• Built-in redundant Ethernet Communication ports

• General info

  Article number	3BSE081637R1 (PM866AK02)
  Redundancy	Yes
  High Integrity	No
  Clock Frequency	133 MHz
  Performance, 1000 boolean operations	0.09 ms
  Performance	0.09 ms
  Memory	64 MB
  RAM available for application	51.389 MB
  Flash memory for storage	Yes

• Detailed data

  Processor type	MPC866
  Switch over time in red. conf.	Max 10 ms
  No. of applications per controller	32
  No. of programs per application	64
  No. of diagrams per application	128
  No. of tasks per controller	32
  Number of different cycle times	32
  Cycle time per application programs	Down to 1 ms
  Flash PROM for firmware storage	4 MB
  Power supply	24 V DC (19.2-30 V DC)
  Power consumption +24 V typ/max	210 / 360 mA
  Power dissipation	5.1 W (8.6 W max)
  Redundant power supply status input	Yes
  Built-in back-up battery	Lithium, 3.6 V
  Clock synchronization	1 ms between AC 800M controllers by CNCP protocol
  Event queue in controller per OPC client	Up to 3000 events
  AC 800M transm. speed to OPC server	36-86 events/sec, 113-143 data messages/sec
  Comm. modules on CEX bus	12
  Supply current on CEX bus	Max 2.4 A
  I/O clusters on Modulebus with non-red. CPU	1 electrical + 7 optical
  I/O clusters on Modulebus with red. CPU	0 eletrical + 7 optical
  I/O capacity on Modulebus	Max 96 (single PM866) or 84 (red. PM866) I/O modules
  Modulebus scan rate	0 - 100 ms (actual time depending on number of I/O modules)
  Supply current on Electrical Modulebus	24 V : max 1.0 A 5 V : max 1.5 A
  Ethernet channels	2
  Ethernet interface	Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole)
  Control Network protocol	MMS (Manufacturing Message Service) and IAC (Inter Application Communication)
  Recommended Control Network backbone	100 Mbit/s switched Ethernet
  Real-time clock stability	100 ppm (approx. 1 h/year)
  RS-232C interface	2 (one general, 1 for service tool)
  RS-232C interface (COM3) (non red. only)	RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTS-CTS support
  RS-232C interface (COM4) (non red. only)	RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS support

• Environment and certification

  Temperature, Operating	+5 to +55 °C (+41 to +131 °F)
  Temperature, Storage	-40 to +70 °C (-40 to +158 °F)
  Temperature changes	3 °C/minutes according to IEC/EN 61131-2
  Pollution degree	Degree 2 according to IEC/EN 61131-2
  Corrosion protection	G3 compliant to ISA 71.04
  Relative humidity	5 to 95 %, non-condensing
  Emitted noise	< 55 dB (A)
  Vibration	10 < f < 50 Hz: 0.0375 mm amplitude, 50 < f < 150 Hz: 0.5 g acceleration, 5 < f < 500 Hz: 0.2 g acceleration
  Rated Isolation Voltage	500 V a.c.
  Dielectric test voltage	50 V
  Protection class	IP20 according to EN 60529, IEC 529
  Altitude	2000 m according to IEC/EN 61131-2
  Emission & Immunity	EN 61000-6-4, EN 61000-6-2
  Environmental conditions	Industrial
  CE Mark	Yes
  Electrical Safety	EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201
  Hazardous location	UL 60079-15, cULus Class 1, Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X
  ISA Secure certified	Yes
  Marine certificates	DNV-GL (currently PM866: ABS, BV, DNV-GL, LR)
  TUV Approval	No
  RoHS compliance	EN 50581:2012
  WEEE compliance	DIRECTIVE/2012/19/EU

• Dimensions

  Width	119 mm (4.7 in.)
  Height	186 mm (7.3 in.)
  Depth	135 mm (5.3 in.)
  Weight (including base)	K01 1200 g (2.6 lbs) / K02 2700 g (5.95 lbs)
