Product Description for 1SFL657001R7022:

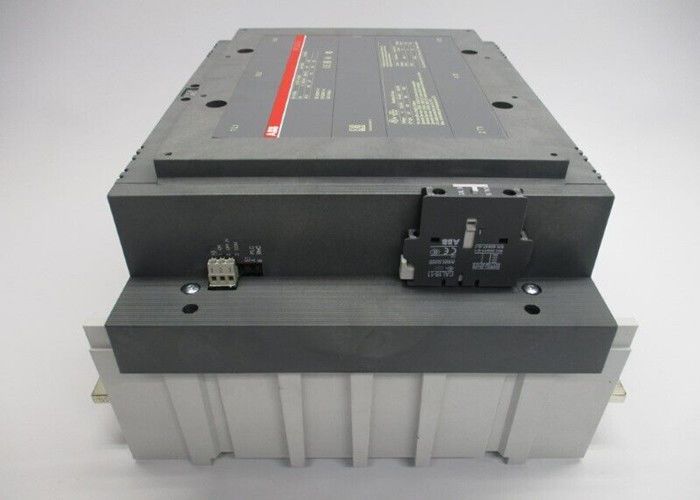

The AF1350-30-22-70 is an extended product type contactor with a product ID 1SFL657001R7022 and an EAN of7320500250150. This contactor is designed to be used for controlling motors up to 475 kW/400 V AC or 800 hp/480 V UL and switching power circuits up to 1350 A (AC-1) or 1350 A UL general use.

With the AF technology, this contactor has a wide control voltage range of 100-250 V 50/60 Hz and DC, which enables it to manage large voltage variations, reducing energy consumption, and ensuring smooth operations even in unstable networks. The contactor has a block type design, and it comes with pre-mounted auxiliary contacts and main circuit bars.

The AF1350-30-22-70 is capable of withstanding electrical surges as it has built-in surge protection. This feature makes it a compact solution for protecting connected devices and overall system safety. Additionally, this contactor is easily extensible with add-on auxiliary contact blocks and an additional range of accessories.

The AF1350-30-22-70 is a 3-pole-1000V IEC or 1000 V UL contactor with excellent features that make it invaluable in various applications. Its wide voltage range, surge protection, and easy extendability set it apart from other contactors in the market.

The contactor's primary function is to control motors up to 475 kW/400 V AC or 800 hp/480 V UL and switch power circuits up to 1350 A (AC-1) or 1350 A UL general use. This capability makes it a perfect fit for applications that require high power output.

Additionally, the contactor has a block type design, which makes it easy to connect and integrate into existing systems. It comes with pre-mounted auxiliary contacts and main circuit bars, saving time and effort during installation. The contactor's surge protection feature ensures reliable operation and protects connected devices from electrical surges.

The AF1350-30-22-70 is easily extensible with add-on auxiliary contact blocks and an additional range of accessories. This feature allows users to customize the contactor to their specific needs and applications.

Features for 1SFL657001R7022:

AF1350-30-22-70 is a 3-pole contactor that can be used in high voltage applications up to 1000 V for both IEC and UL standards. This makes it suitable for a wide range of motor control applications in industrial settings.

Designed to control motors up to 475 kW at 400 V AC (AC-3 rating) or 800 hp at 480 V according to UL standards, the AF1350-30-22-70 is capable of handling power circuits up to 1350 A in AC-1 duty (normal AC load). With robust performance under heavy loads, it guarantees uninterrupted operation and offers long-term reliability.

The contactor also operates with a wide control voltage range of 100-250 V AC (50/60 Hz) and DC, accommodating varying voltage conditions commonly encountered in industrial environments. This feature contributes to energy efficiency by reducing panel energy consumption and ensures reliable operation even in unstable power networks.

Built-in surge protection provides added reliability and longevity to the contactor, minimizing the risk of damage from electrical surges and offering a compact solution that simplifies installation and maintenance. The block-type design of AF technology enhances durability and allows for easy extension with add-on auxiliary contact blocks and a wide range of compatible accessories. This flexibility makes it adaptable to different application requirements and configurations.

Technical Parameters for 1SFL657001R7022:

The AF technology stands out due to its unique block-type design. This design feature not only enhances the durability of the technology but also makes it simple to extend through add-on auxiliary contact blocks and compatibility with a wide range of other accessories. With this flexibility, the AF technology can adapt to various application requirements and system configurations.

The block-type design of the AF technology makes it easy for users to customize their system to fit their specific needs. By adding auxiliary contact blocks and accessories, users can create a unique set up that can handle a wide range of applications. Moreover, the durability of the technology ensures that it can continue to perform its functions reliably over a long period.

The adaptability of the AF technology makes it ideal for various industries, including manufacturing, transportation, and energy. With its block-type design, the technology allows for easy integration into existing systems, making it a cost-effective solution for upgrading and expanding operations. The compatibility with other accessories and the easy extension offered by the auxiliary contact blocks give users the flexibility to modify and customize their systems as required.

Applications for 1SFL657001R7022:

The device is specifically crafted to regulate motors that have an impressive capacity of up to 475 kW at 400 V AC, based on AC-3 standards. Additionally, it can also manage a powerful 800 hp at 480 V, conforming with UL standards.

Given its significantly high motor control ability, it is an optimal choice for various industrial applications, wherein regulating large motors with high capacity is necessary.

Support and Services for 1SFL657001R7022:

The Digital I/O Module is a high-performance module that provides digital input and output functionality for industrial automation applications. It offers reliable and accurate data acquisition and control capabilities for a wide range of industrial processes.

The module features a compact and rugged design that makes it suitable for use in harsh industrial environments. It supports a variety of input and output configurations that can be easily configured through its intuitive software interface.

Our technical support team is available to assist with any questions or issues related to the Digital I/O Module. We offer a range of services, including installation support, troubleshooting, and repair services. Our team is highly trained and experienced in providing timely and effective solutions to any technical issues you may encounter.

In addition, we offer a range of training services to help you get the most out of your Digital I/O Module. Our training programs cover topics such as module installation, configuration, and maintenance, and are designed to help you optimize the performance and reliability of your system.

Overall, the Digital I/O Module is a powerful and reliable solution for industrial automation applications, and our team is committed to providing the support and services you need to ensure optimal performance and uptime.

Packing and Shipping for 1SFL657001R7022:

Product Packaging for Digital I O Module:

• The Digital I O Module will be packed in a sturdy cardboard box.
• The box will be sealed with adhesive tape to prevent any damage during shipping.
• The product will be wrapped in bubble wrap to ensure that it remains secure and protected during transportation.
• The box will include an instruction manual and any necessary cables or accessories.

Shipping Information:

• The Digital I O Module will be shipped via a reputable courier service.
• The shipping cost will be calculated based on the destination and weight of the package.
• The estimated delivery time will depend on the destination and courier service used.
• The customer will receive a tracking number to monitor the delivery status of the package.

FAQ for 1SFL657001R7022:

Q1. What is the brand name of the Digital I O Module?

A1. The brand name of the Digital I O Module is ABB.

Q2. What is the model number of the Digital I O Module?

A2. The model number of the Digital I O Module is 1SFL657001R7022.

Q3. Where is the Digital I O Module manufactured?

A3. The Digital I O Module is manufactured in Sweden.

Q4. Is the Digital I O Module CE certified?

A4. Yes, the Digital I O Module is CE certified.

Q5. What is the minimum order quantity of the Digital I O Module?

A5. The minimum order quantity of the Digital I O Module is 1.

Q6. What is the packaging of the Digital I O Module?

A6. The Digital I O Module is packaged in a carton box.

Q7. What is the delivery time for the Digital I O Module?

A7. The delivery time for the Digital I O Module is 3-5 working days.

Q8. What are the payment terms for the Digital I O Module?

A8. The payment terms for the Digital I O Module are T/T.

Q9. What is the supply ability of the Digital I O Module?

A9. The supply ability of the Digital I O Module is 100 pcs/day.
