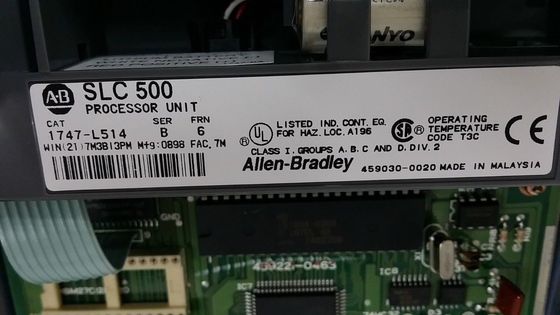

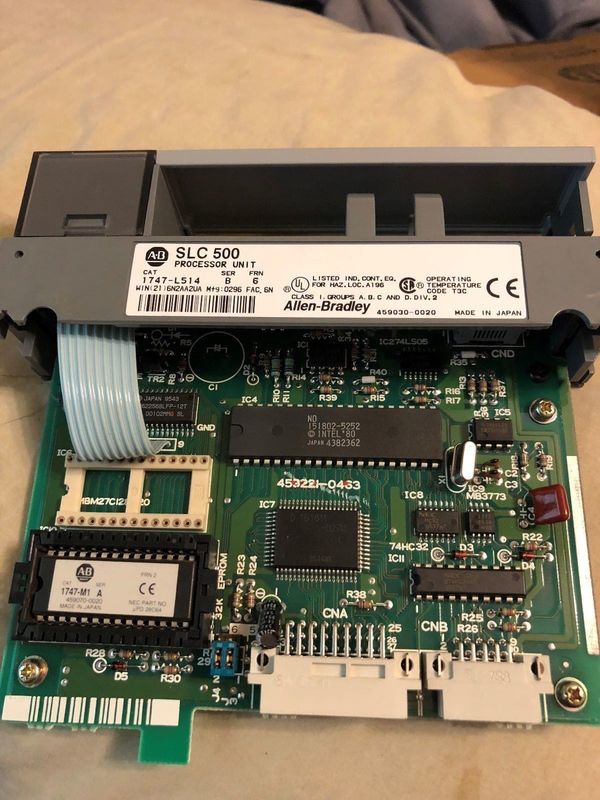

AB 1747-L514 SLC 500 Modular Hardware Style The Top Pick for Industrial Automation

Product Description:1747-L514

• 16-bit Processor: Delivers efficient execution of control programs, enhancing system performance.

• User Memory: Offers 8 KB of memory for storing user programs and data, accommodating a range of application needs.

• I/O Compatibility: Works seamlessly with various SLC 500 I/O modules, allowing for flexible configuration tailored to specific requirements.

• Communication Protocols: Supports multiple protocols, including DH+ and DH-485, enabling connectivity with other devices and networks for data exchange.

• Programming Environment: Compatible with RSLogix 500 software, simplifying the programming and configuration process for users.

• Built-in Diagnostics: Includes features for monitoring system health and troubleshooting, ensuring reliable operation.

Features:1747-L514

• 16-bit Microprocessor: Provides efficient processing power for executing control programs quickly.

• Memory Capacity: Offers 8 KB of user memory for program storage, accommodating various application requirements.

• I/O Module Compatibility: Works with a wide range of SLC 500 I/O modules, allowing for customizable system configurations.

• Communication Support: Compatible with DH+ and DH-485 protocols, facilitating connections to other devices and networks.

• User-Friendly Programming: Programmable using RSLogix 500 software, making it accessible for users with varying experience levels.

• Built-in Diagnostics: Features diagnostic tools to monitor system performance and assist with troubleshooting issues.

• Modular Design: Fits into the SLC 500 chassis, allowing for easy integration and expansion within control systems.

Technical Parameters:1747-L514

• Processor Type: 16-bit microprocessor.

• User Memory:

  • 8 KB of RAM.

• I/O Capacity: Supports up to 30 I/O modules, depending on the configuration.

• Input Voltage:

  • 24V DC nominal.

• Current Draw:

  • Approximately 100 mA from the backplane.

• Communication Protocols:

  • DH+ and DH-485.

• Operating Temperature:

  • 0°C to 60°C (32°F to 140°F).

• Storage Temperature:

  • -40°C to 85°C (-40°F to 185°F).

• Relative Humidity:

  • 5% to 95% (non-condensing).

• Dimensions:

  • Approximately 118 mm (4.65 in) high, 25 mm (1 in) wide, and 90 mm (3.54 in) deep.

• Weight:

  • Approximately 0.5 kg (1.1 lbs).

Applications:1747-L514

• Manufacturing Automation: Used for controlling machinery and production processes, ensuring efficient operation.

• Process Control: Integrates with sensors and actuators in process industries, enabling real-time monitoring and control of processes.

• Packaging Systems: Manages packaging machinery, coordinating various components for streamlined operations.

• Material Handling: Controls conveyor systems and other material handling equipment, optimizing workflow in warehouses and factories.

• Building Automation: Facilitates control of HVAC, lighting, and security systems in commercial buildings.

• SCADA Integration: Works with Supervisory Control and Data Acquisition (SCADA) systems for remote monitoring and control of industrial processes.

• Robotics: Supports robotic systems, enabling precise control and integration with other automation components.

Customization:1747-L514

• I/O Configuration: Users can select from a wide range of compatible SLC 500 I/O modules to tailor the system to specific requirements, allowing for customized input and output configurations.

• Communication Settings: The module supports multiple communication protocols (DH+ and DH-485), which can be configured based on the existing network infrastructure and device compatibility.

• Programming Options: Utilizing RSLogix 500 software, users can develop custom logic and control algorithms tailored to their specific application needs.

• Diagnostic Tools: Custom diagnostic routines can be implemented to monitor specific parameters and enhance troubleshooting capabilities.

• Labeling: Users can create custom labels for the module and its components, improving identification and clarity within control panels.

• Modular Expansion: The modular design allows for easy expansion and integration with additional modules, enabling customization of system size and functionality.

Support and Services:1747-L514

Our team of technical support specialists are available to assist with any questions or issues related to our Other product. We offer a range of services including installation support, troubleshooting, and product maintenance. Our goal is to ensure that our customers have a seamless experience when using our product and that any technical issues are resolved in a timely and efficient manner. Please don't hesitate to reach out to our support team if you need any assistance.
