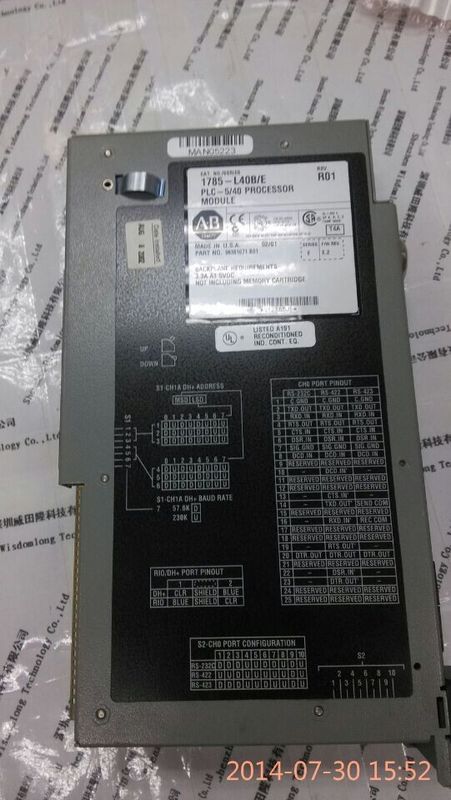

ALLEN-BRADLEY 1785-L40B E Enhanced PLC-5 Programmable Controllers

Product Description:1785-L40B E

• High Processing Power: The 1785-L40B E offers enhanced processing speed, allowing it to execute multiple control instructions quickly and efficiently.

• Memory: With 40 KB of user memory, it supports larger programs and more extensive data management, enabling sophisticated automation strategies.

• I/O Compatibility: The controller is compatible with various SLC 500 I/O modules, providing flexibility in configuring input and output requirements.

• Communication Capabilities: It includes built-in DH+ and serial communication ports, facilitating integration with other devices, networks, and systems.

• Modular Architecture: The design allows for easy expansion, accommodating additional modules as needed to adapt to changing automation needs.

Features:1785-L40B E

• Processing Power: High-speed processor capable of handling complex control tasks and executing multiple instructions per scan.

• Memory Capacity: 40 KB of user memory, allowing for larger and more complex programs.

• I/O Module Compatibility: Supports a wide range of SLC 500 I/O modules for flexible input and output configurations.

• Built-in Communication Ports: Equipped with DH+ and serial communication ports for seamless integration with other devices and networks.

• Modular Design: Allows for easy expansion by adding additional I/O and communication modules as needed.

• Real-Time Diagnostics: Features diagnostic capabilities to monitor system performance and troubleshoot issues effectively.

• User-Friendly Programming: Compatible with RSLogix 500 software for intuitive programming and configuration.

• Environmental Ratings: Designed to operate in various industrial environments, typically rated for 0°C to 60°C (32°F to 140°F) temperature range.

Technical Parameters:1785-L40B E

Applications:1785-L40B E

• Manufacturing Automation: Controls assembly lines, robotics, and material handling systems for efficient production processes.

• Process Control: Manages operations in industries such as chemical processing, food and beverage, and pharmaceuticals for precise control.

• Water and Wastewater Treatment: Used in monitoring and controlling pumps, valves, and sensors in treatment facilities.

• Building Automation: Integrates with HVAC systems, lighting control, and security systems for commercial and industrial buildings.

• Packaging Systems: Coordinates packaging machinery to ensure smooth operation and synchronization across various stages.

• Conveyor Systems: Manages conveyor belts and sorting systems to optimize material flow and logistics.

• CNC and Machine Control: Provides precise control for CNC machines and other automated machinery.

• Data Acquisition: Collects and processes data from various sensors and devices for monitoring and performance optimization.

Customization:1785-L40B E

• Program Logic Development: Users can create and modify control programs using RSLogix 500, tailoring the logic to meet unique operational requirements.

• I/O Configuration: Customize the selection and arrangement of compatible SLC 500 I/O modules to fit specific input/output needs for various sensors and actuators.

• Communication Settings: Adjust parameters for built-in DH+ and serial communication ports to optimize integration with other devices and networks.

• User Interface Design: Develop custom Human-Machine Interfaces (HMIs) to provide operators with tailored dashboards for real-time monitoring and control.

• Alarm and Event Management: Set up customized alarm conditions and event logging to improve monitoring and response capabilities.

• Redundancy and Reliability: Implement redundancy configurations for critical applications, ensuring high availability and system reliability.

• Firmware Updates: Regularly update the firmware to incorporate new features, improvements, or security enhancements tailored to evolving needs.

• Integration with Legacy Systems: Customize configurations to ensure seamless communication with older equipment and systems, facilitating upgrades without extensive overhauls.
