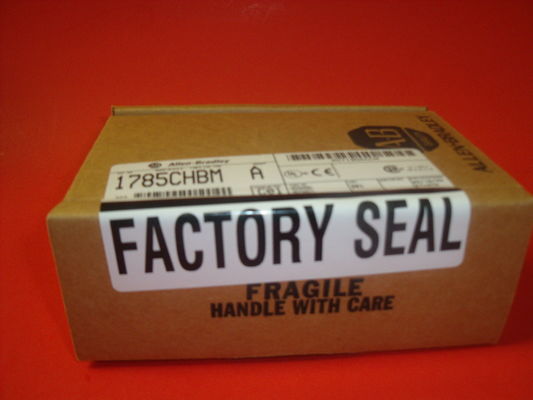

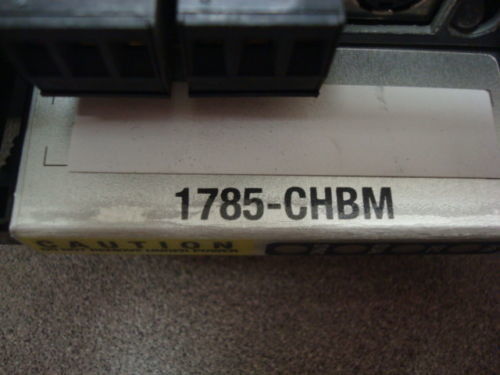

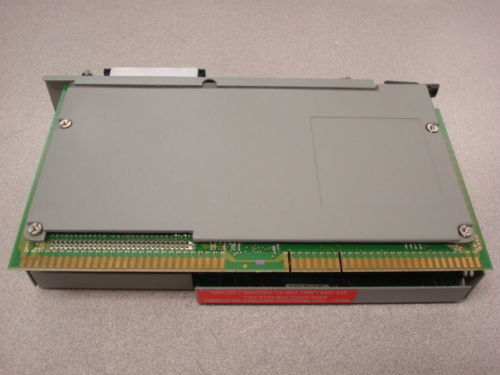

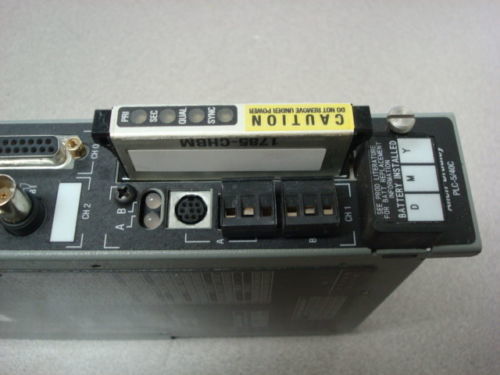

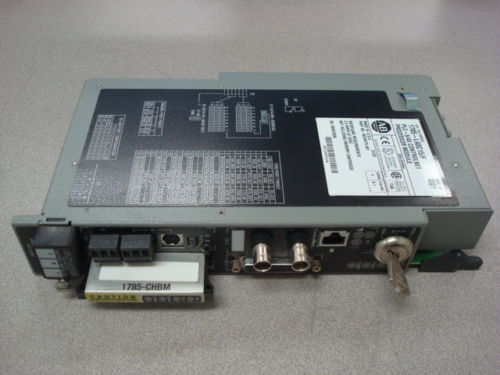

ALLEN-BRADLEY 1785-CHBM PLC-5 Backup Communication Module

Product Description:1785-CHBM

• Protocol Support: Primarily designed for ControlNet, enabling deterministic and reliable data transfer in automation environments.
• Integration: Modular design allows for easy installation and compatibility with existing Allen-Bradley systems, enhancing overall system capabilities.
• Diagnostics: Equipped with diagnostic features to monitor network health and troubleshoot communication issues efficiently.
• Real-Time Performance: Supports high-speed data transmission, making it suitable for applications requiring immediate response and control.

Features:1785-CHBM

• ControlNet Protocol: Supports ControlNet for high-speed, deterministic communication in real-time applications.

• Modular Design: Easily integrates into SLC 500 and ControlLogix systems, allowing for flexible configurations.

• High Data Throughput: Capable of handling substantial data traffic, making it ideal for complex automation tasks.

• Diagnostic Tools: Includes built-in diagnostics for monitoring network performance and troubleshooting communication issues.

• Scalability: Supports expansion options, allowing for adaptation to changing system needs and growth.

• User-Friendly Configuration: Configured through software tools like RSLogix 500 or Studio 5000, facilitating easy setup and adjustments.

• LED Indicators: Features status LEDs to provide visual feedback on communication health and operational status.

Technical Parameters:1785-CHBM

Applications:1785-CHBM

• Manufacturing Automation: Facilitates communication between PLCs, sensors, and actuators in automated production lines.

• Process Control: Integrates multiple devices for efficient monitoring and control of processes in industries like chemical and food processing.

• Data Acquisition: Collects real-time data from various sources for analysis, enhancing decision-making and operational efficiency.

• Remote Monitoring: Enables remote access to system data, allowing for efficient monitoring and control from different locations.

• Machine Integration: Connects legacy systems with modern equipment, promoting interoperability and smoother upgrades.

• SCADA Systems: Supports supervisory control and data acquisition applications, providing reliable communication links.

• Building Management Systems: Used in HVAC, lighting, and security management within industrial and commercial buildings.

Customization:1785-CHBM

• Protocol Configuration: While primarily designed for ControlNet, users can configure specific settings related to network communication, such as data rates and node addressing.

• Diagnostic Settings: Customize diagnostic parameters to monitor specific network metrics and performance indicators relevant to your application.

• Integration with Legacy Systems: Tailor the module's configuration to ensure seamless integration with older equipment, enhancing interoperability in mixed environments.

• User Interface Development: Create custom user interfaces or dashboards for monitoring and controlling processes through HMI or SCADA systems.

• Redundancy Configurations: Depending on the criticality of the application, set up redundancy options to ensure high availability and reliability.

• Firmware Updates: Regularly update firmware to include new features, enhancements, or security improvements based on the latest industry standards.

• Custom Mounting Solutions: Design specific enclosures or mounting arrangements to fit unique installation environments, such as harsh conditions or space constraints.

• Software Integration: Use programming tools like RSLogix 500 or Studio 5000 to develop custom logic or data handling routines tailored to specific automation tasks.
