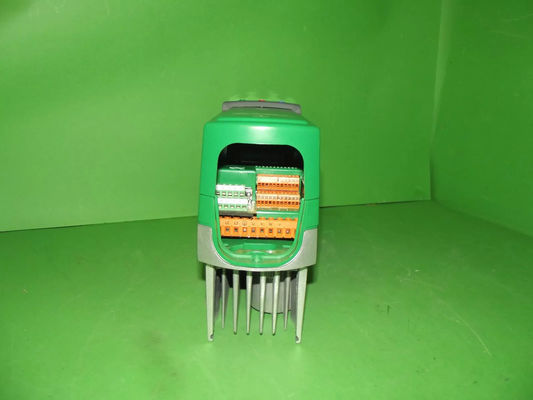

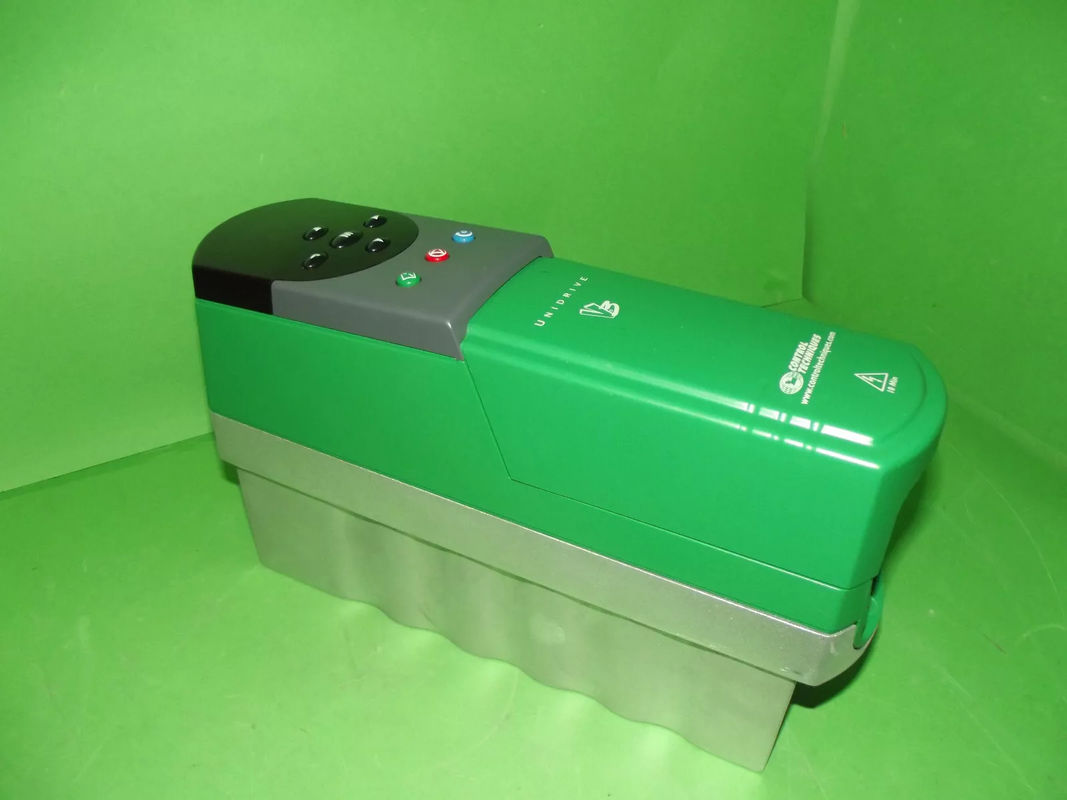

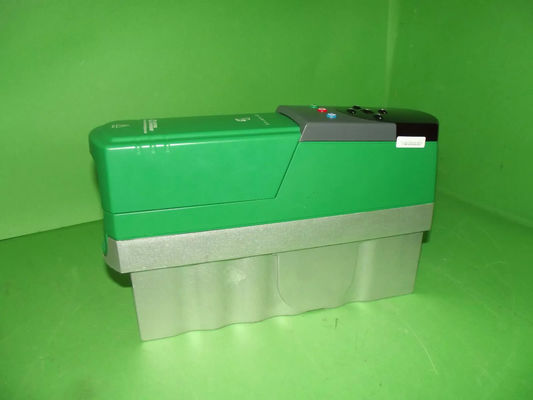

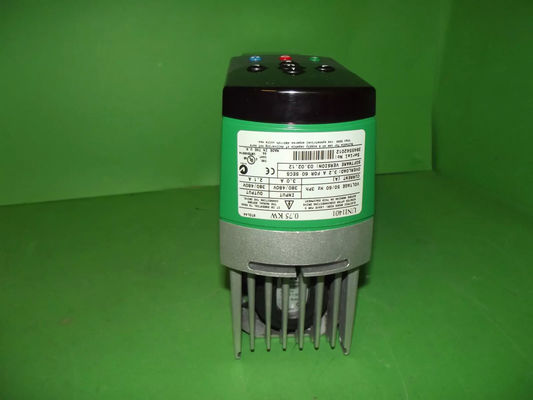

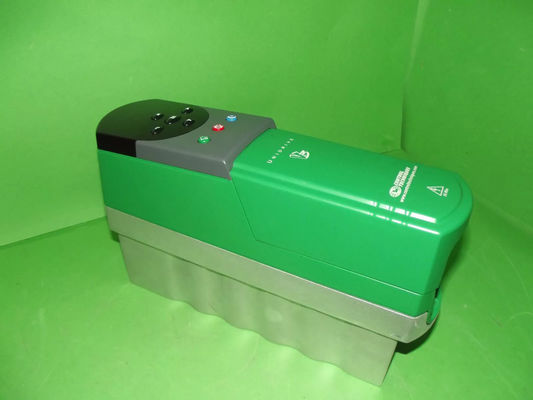

EMERSON UNI1402 Control Techniques Emerson Unidrive Frequenzumrichter

Product Description:UNI1402

The Emerson UNI1402 is a Variable Frequency Drive (VFD) designed for industrial applications requiring precise motor control, flexibility, and energy efficiency. Part of Emerson's UNI Series, the UNI1402 offers advanced features for various types of motors, including induction motors, synchronous motors, and permanent magnet motors.

The UNI1402 is suitable for controlling the speed, torque, and performance of motors across a broad range of industries. Below, I'll provide an overview of its features, specifications, applications, and customization options.

Features:UNI1402

• • Control Methods: The UNI1402 supports multiple control methods, offering flexibility depending on the application's needs:
    • V/f Control (Volts per Frequency): Ideal for general-purpose applications where load-dependent speed control is not necessary.
    • Sensorless Vector Control (SVC): Suitable for applications that require higher torque precision at low speeds, such as conveyors, pumps, and compressors.
    • Closed-Loop Vector Control (CLVC): Provides high performance for demanding applications where precise motor control is essential, such as in material handling, packaging, and textile industries.
    • Flux Vector Control: High-performance method for controlling motor torque and speed with more accuracy and efficiency, commonly used in industrial processes like CNC machines or robotics.

• Energy Efficiency

  • Energy Saving Mode: The UNI1402 adjusts motor speed based on load, helping to minimize energy consumption. It helps reduce power usage, especially in applications like fans, pumps, and compressors, where speed and load often vary.
  • Load Compensation: The drive automatically adjusts its output to match load fluctuations, ensuring that energy is not wasted and optimizing overall performance.

• Communication and Networking

  • Communication Protocols: The drive supports a variety of industrial communication standards to integrate into existing automation systems:
    • Modbus RTU (serial communication)
    • Ethernet/IP for Ethernet-based communication
    • CANopen for high-speed communication in motion control applications
    • Profibus and Profinet (optional), enabling compatibility with Siemens-based control systems.
  • Communication Expansion: The UNI1402 can be equipped with additional communication modules to support more protocols or improve network flexibility.

• Advanced Protection and Diagnostics

  • Motor Protection: Includes overload protection, overcurrent protection, thermal protection, overvoltage protection, and under-voltage protection. These features help safeguard the motor and the drive from damage.
  • Fault Diagnostics: The drive provides detailed fault and event logs, enabling quick identification of potential issues. Real-time diagnostics help with troubleshooting and can also be used to monitor operational data such as current, voltage, frequency, and motor temperature.
  • Protection Features: Protection against short circuits, ground faults, and phase failure are also integrated.

• User Interface and Control

  • LCD Display and Keypad: The UNI1402 features a user-friendly keypad with an LCD display, providing easy access to parameters, real-time data, fault codes, and status updates. The display can be configured to show parameters like motor speed, voltage, current, and more.
  • Customizable Parameters: Users can adjust various settings, such as acceleration/deceleration times, motor protection limits, speed reference, and torque limits, according to their application requirements.
  • Remote Control: It supports remote operation through digital inputs and communication networks, allowing operators to monitor and control the drive from a central location or external control panels.

• Compact and Robust Design

  • Space-saving Design: The drive’s compact design ensures it fits in tight spaces, even in challenging environments.
  • Environmental Durability: Available with different enclosure options:
    • IP20 (NEMA 1) for general indoor use.
    • IP54 and IP66 for outdoor or harsh environments where protection against dust, water, and chemicals is required.
  • Wide Temperature Range: The UNI1402 can operate in a broad temperature range, typically from -10°C to +50°C (some models allow operation up to 60°C with derating), making it suitable for a variety of industrial environments.

• Customizable Speed Control

  • Speed Range: The drive typically supports a frequency range from 0 to 400 Hz, allowing for fine control of motor speed, which is particularly useful in high-speed applications.
  • Acceleration/Deceleration Settings: Customizable ramp-up and ramp-down times ensure smooth motor starts and stops, which reduces mechanical stress and improves the longevity of both the drive and the motor.
  • S-Curve Acceleration: For smoother transitions in speed control, the UNI1402 supports S-curve acceleration/deceleration, minimizing the shock load on motors and other components during startup and stopping.

• Braking Control

  • Dynamic Braking: For applications that require rapid stopping (e.g., elevators, cranes, and other systems with high inertia), the UNI1402 can be equipped with dynamic braking resistors to safely dissipate energy and prevent overheating.
  • Regenerative Braking: In some applications, the drive may be configured for regenerative braking, where excess energy is fed back into the grid.

Technical Parameters:UNI1402

• Voltage Range: Available in different voltage configurations, typically:
  • 200-240V AC (single-phase or three-phase)
  • 380-480V AC (three-phase)
  • 500-600V AC (three-phase)
• Input Frequency: 50 Hz / 60 Hz.
• Input Current: The input current depends on the drive's power rating, typically ranging from 5A to 200A.

2. Output Power

• Output Voltage: Matches the motor’s rated voltage.
• Output Frequency: Typically ranges from 0 to 400 Hz.
• Output Power: The power range for the UNI1402 is typically from 0.75 kW (1 HP) to 200 kW (250 HP), depending on the model and application.

3. Motor Control Methods

• V/f Control: For standard applications.
• Sensorless Vector Control (SVC): Provides better performance in variable load conditions.
• Closed-Loop Vector Control (CLVC): High-precision control for dynamic load changes.
• Flux Vector Control: Advanced torque control for high-performance operations.

4. Environmental Specifications

• Operating Temperature: Typically from -10°C to 50°C (with derating up to 60°C).
• Storage Temperature: -20°C to 60°C.
• Humidity: 95% RH (non-condensing).
• Altitude: Can operate up to 1000 meters above sea level without derating.

5. Protection Features

• Overload, overcurrent, overvoltage, under-voltage, and thermal protection.
• Short-circuit and ground fault protection.
• Phase failure protection and stall detection.

6. Communication and I/O

• Digital Inputs (DI): For functions like start/stop, speed setpoint, fault alarms, etc.
• Analog Inputs (AI): For external sensors, e.g., pressure, flow, or temperature sensors.
• Relay Outputs: For alarm notifications and system status.
• Communication Protocols: Includes Modbus RTU, Ethernet/IP, CANopen, and options for Profibus and Profinet.

Applications:UNI1402

• Pumps: For water treatment, HVAC systems, and industrial pumps where energy efficiency and load adaptation are critical.
• Fans: In HVAC, ventilation, and exhaust systems where precise speed control is needed.
• Conveyor Systems: For material handling in manufacturing, mining, logistics, and packaging.
• Cranes and Hoists: In applications requiring smooth acceleration and deceleration, as well as precise load control.
• Compressors: For HVAC, refrigeration, and industrial air compressors.
• Mixers and Extruders: In food processing, chemical industries, and manufacturing processes.
• Elevators and Escalators: For safe, smooth operation with energy-efficient control and load handling.
• Textile and CNC Machines: For precise control of motors in high-performance machinery.
• Robotics: For motion control applications that require high-precision motor control.

.

Customization:UNI1402

• Motor Control Mode: Customize control modes (V/f, SVC, CLVC) depending on the application’s need for torque control, precision, and dynamic performance.
• Communication Protocols: Integrate the drive into existing systems with support for protocols like Modbus RTU, Ethernet/IP, CANopen, Profibus, or Profinet.
• Additional I/O: Customize digital and analog I/O options, such as inputs for remote controls, sensors, or feedback devices.
• Protection Settings: Adjust protection parameters (overload, thermal protection, fault detection) to match motor specifications and environmental conditions.
• Energy Efficiency Settings: Enable energy-saving modes and load compensation to optimize power consumption for varying loads.

Support and Services:UNI1402

Our team of technical support specialists is available to assist you with any issues you may encounter with your Other product. Our services include:

• Remote technical support to diagnose and troubleshoot any software or hardware issues
• Repair services for any hardware malfunctions
• Software updates and upgrades
• Product training and tutorials to help you get the most out of your Other product

We pride ourselves in providing excellent customer service and quick turnaround times for all support and repair requests.
