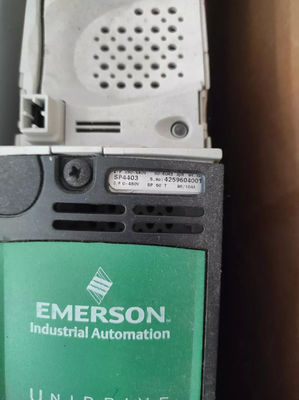

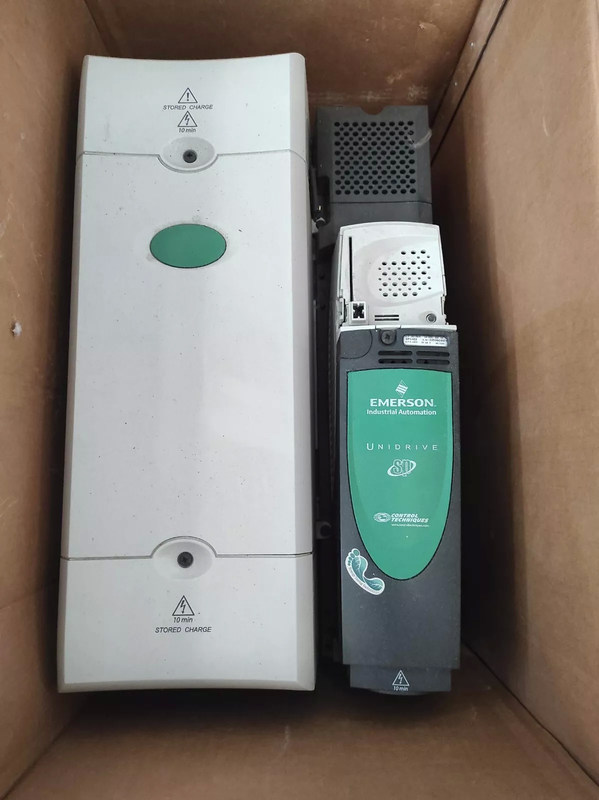

EMERSON UNI1401 Control Techniques Emerson Unidrive Frequenzumrichter

Product Description:UNI1401

The Emerson UNI1401 is a universal drive designed for a wide range of industrial applications requiring efficient motor control, flexibility, and reliable operation. As part of Emerson's drive family, the UNI1401 serves as a versatile, energy-efficient solution for controlling the speed and torque of motors in both standard and demanding environments.

The UNI1401 is designed to meet the needs of industries that require seamless integration with various automation systems, and it can handle a variety of motor types, including induction motors, synchronous motors, and permanent magnet motors. Below is an overview of the key features, specifications, and applications of the Emerson UNI1401.

Features:UNI1401

• Universal Motor Control

  • Flexible Control Options: The UNI1401 can be used for both V/f control (Volts per Hertz) and sensorless vector control, providing high performance in general-purpose applications as well as more demanding processes that require precise torque and speed control.
  • Closed-Loop Vector Control: For applications where precision and dynamic performance are critical, the UNI1401 supports closed-loop vector control (CLVC), providing high torque and speed regulation even at low speeds and under varying load conditions.
  • Multi-motor Support: The drive can handle different types of motors, making it adaptable for multi-motor configurations or systems that require switching between motor types without changing the drive.

• Energy Efficiency

  • Energy Saving Functionality: The UNI1401 is designed to optimize energy usage by adjusting motor speed based on load demand. This helps reduce energy consumption, particularly in applications like pumps, fans, and compressors.
  • Dynamic Energy Management: The drive offers features like PID control and load compensation, automatically adjusting the motor speed to optimize efficiency based on real-time load feedback.

• Communication and Integration

  • Communication Protocols: The UNI1401 supports a variety of communication protocols, allowing it to seamlessly integrate into existing automation systems:
    • Modbus RTU for integration with PLCs and SCADA systems.
    • CANopen for applications that require high-speed communication.
    • Ethernet/IP for modern industrial networks with remote control and monitoring capabilities.
  • Flexible I/O Options: The drive comes with configurable digital and analog inputs and outputs, which can be customized to fit specific application needs. This includes control inputs for speed setpoint, start/stop, fault signals, and more.

• Advanced Protection and Diagnostics

  • Motor Protection: The UNI1401 includes comprehensive motor protection features such as overload protection, overcurrent protection, and thermal protection to prevent damage to the motor and drive.
  • Fault Diagnostics: The drive provides built-in diagnostics to help detect faults early and improve troubleshooting efficiency. Users can access real-time data and fault logs, enabling quick response times to potential issues.
  • Short-Circuit and Ground Fault Protection: The drive is equipped with protection features that can detect short circuits or grounding issues, improving safety and reliability.

• User Interface

  • Digital Keypad and Display: The UNI1401 features a user-friendly digital keypad and LCD display that simplifies setup, parameter adjustment, and monitoring. The display can be customized to show various operating parameters, fault conditions, and performance data.
  • Remote Operation: The drive can be controlled remotely via communication protocols like Ethernet/IP or Modbus RTU, providing flexibility for systems where local control is not feasible.

• Environmental Durability

  • Compact Design: The UNI1401 is designed with a compact, space-efficient form factor suitable for tight installations and environments where space is limited.
  • NEMA and IP Ratings: The drive is available in a variety of enclosure ratings to suit different operating environments:
    • NEMA 1 (IP20) for indoor use.
    • NEMA 4X (IP66) for use in harsh environments where exposure to dust, water, or chemicals may occur.
  • Wide Operating Temperature Range: The drive can operate in environments with temperatures from -10°C to 50°C, making it suitable for a variety of industrial settings.

• Flexible Speed Control

  • Speed Range: The UNI1401 typically offers an output frequency range from 0 to 400 Hz, allowing for fine control of motor speed.
  • Acceleration/Deceleration Control: The drive can be configured to achieve smooth acceleration and deceleration profiles, which are essential for reducing mechanical stress on equipment, preventing abrupt starts or stops, and improving system longevity.

• Energy and Load Compensation

  • PID Control: The UNI1401 supports PID control for applications where maintaining a constant setpoint (e.g., pressure, flow, or temperature) is required. It allows the drive to adjust the motor speed automatically to keep the system variables within desired thresholds.
  • Load Feedback and Compensation: The drive adjusts motor output based on load variations, ensuring optimal energy use without overloading the system. This is particularly useful in pumps, fans, and other systems where load can vary significantly.

Technical Parameters:UNI1401

• Voltage Range: Typically available in the following voltage configurations:
  • 200-240V AC (single-phase or three-phase)
  • 380-480V AC (three-phase)
  • 500-600V AC (three-phase)
• Input Frequency: Supports 50 Hz/60 Hz input.
• Input Current: The current varies by drive size and motor power, but it typically ranges from 5A to 200A depending on the specific model.

2. Output Power

• Output Voltage: Matches the motor’s rated voltage, typically 230V or 460V depending on the motor.
• Output Frequency: The frequency range is typically 0 to 400 Hz, offering a wide range of control.
• Output Power: Generally supports a power range from 0.75 kW (1 HP) to 200 kW (250 HP) depending on the model and configuration.

3. Motor Control Methods

• V/f Control: For general-purpose applications.
• Sensorless Vector Control (SVC): For applications requiring better torque control at low speeds.
• Closed-Loop Vector Control (CLVC): For precision in applications requiring high torque, especially under varying loads.
• Flux Vector Control: Advanced control method for high-performance applications.

4. Environmental Specifications

• Operating Temperature: Typically ranges from 0°C to 50°C (some models can operate up to 60°C with derating).
• Storage Temperature: -20°C to 60°C.
• Humidity: 95% RH (non-condensing).
• Altitude: Usually rated for operation up to 1000 meters above sea level without derating.

5. Protection Features

• Overcurrent Protection, Overload Protection, Overvoltage/Undervoltage Protection, Short-Circuit Protection, Ground Fault Protection, and Thermal Protection.

6. Communication and I/O

• Digital Inputs (DI): Customizable for start/stop, fault signals, and other control functions.
• Analog Inputs (AI): For feedback from sensors, such as speed, temperature, pressure, or flow sensors.
• Relay Outputs: For triggering alarms, fault signals, or process status updates.
• Communication Protocols: Supports Modbus RTU, Ethernet/IP, CANopen, and other common industrial protocols.

Applications:UNI1401

• Control Modes:

  • V/f Control: This is ideal for standard applications where the motor’s speed is adjusted based on the frequency-to-voltage ratio. It is simple to configure and is effective for pumps, fans, and conveyors where precise torque control is not required.
  • Sensorless Vector Control (SVC): For applications requiring better performance at low speeds, sensorless vector control improves motor efficiency and torque control without the need for an encoder. This method is commonly used in high-torque, low-speed applications like mixers, crushers, and conveyors.
  • Closed-Loop Vector Control (CLVC): For more advanced applications where precise control of torque and speed under varying load conditions is necessary, CLVC uses feedback from the motor’s encoder for highly accurate control. This is perfect for industries like material handling, CNC machines, or precise conveyor systems.
  • Flux Vector Control: In high-performance applications where dynamic response and maximum torque are required (such as in robotics or CNC machinery), the drive can be customized for flux vector control for more precise motor performance.

• Motor Parameters:

  • Auto-tuning: The UNI1401 can be configured to automatically detect motor parameters, allowing for optimized settings based on the motor’s specifications. This eliminates the need for manual calculations and adjustments.
  • Motor Protection Settings: Set customizable overload protection thresholds, current limits, thermal protection, and stall detection to ensure the motor operates within its safe parameters.

2. Acceleration and Deceleration Customization

• Ramp-Up and Ramp-Down Time:
  • Customize the acceleration and deceleration times based on application requirements. For applications with high mechanical stress or where gradual starts/stops are necessary (such as in conveyors or elevators), slow ramp-up/ramp-down can be set. For processes requiring faster response times, these ramps can be reduced.
• S-Curve Acceleration: For smoother motor starts and stops, you can implement S-curve acceleration, which provides a more gradual change in speed to reduce mechanical wear and improve system stability.

3. Input/Output Customization

• Digital Inputs (DI):

  • Customize the digital inputs for functions such as start/stop, speed reference, mode switching, or fault signals. For example, a digital input could be assigned to a limit switch for start/stop control in a conveyor system.
  • Remote Start/Stop: Configure remote control inputs from an external device such as a PLC or external operator panel to start or stop the drive, allowing for centralized control.

• Analog Inputs (AI):

  • The UNI1401 supports analog inputs for continuous feedback from sensors. For example, you can configure an analog input to control the speed setpoint based on real-time process data, such as flow, pressure, or temperature readings from external sensors.
  • PID Control: Use PID control to maintain a specific setpoint (e.g., temperature, pressure) by automatically adjusting the motor speed based on feedback from analog sensors.

• Relay Outputs:

  • Configure relay outputs for alarm signals, fault notifications, or process status monitoring. For instance, you can set a relay to trigger if the motor exceeds a certain current level, indicating an overload situation.
  • Fault Log Output: The drive can also output fault codes to an external device or monitor, allowing for more effective troubleshooting.

Customization:UNI1401

• Pumps and Compressors:

  • The drive is ideal for controlling the speed of pumps and compressors in industries like water treatment, HVAC, and petrochemical. It can reduce energy consumption by adjusting motor speed to match load conditions.

• Fans and Ventilation Systems:

  • Used in HVAC systems, industrial fans, and blowers, where precise airflow control and energy savings are important.

• Conveyor Systems:

  • For material handling applications in manufacturing, logistics, and mining, where speed and load flexibility are needed.

• Mixers and Extruders:

  • Precision motor control is essential in processes like mixing, blending, and extrusion. The UNI1401’s closed-loop vector control provides stability in such demanding applications.

• Elevators and Cranes:

  • Used to control the speed and torque of motors in cranes, hoists, and elevators, where smooth acceleration and deceleration are essential for safety and reliability.

• Packaging and Material Processing:

  • For equipment such as conveyors, fillers, and labeling machines, the UNI1401 can improve system performance and reduce wear by offering smooth speed control.

• Energy Management:

  • The drive’s energy-saving features are beneficial in industries where reducing power consumption is crucial. The UNI1401 helps reduce operational costs, particularly in processes with variable loads.

• Food and Beverage Industry:

  • For controlling pumps, fans, mixers, and conveyors in food processing and packaging, where hygiene and reliability are top priorities.
