General Electric DS200RTBAG2A Auxiliary Interface Panel

Product Description:DS200RTBAG2A

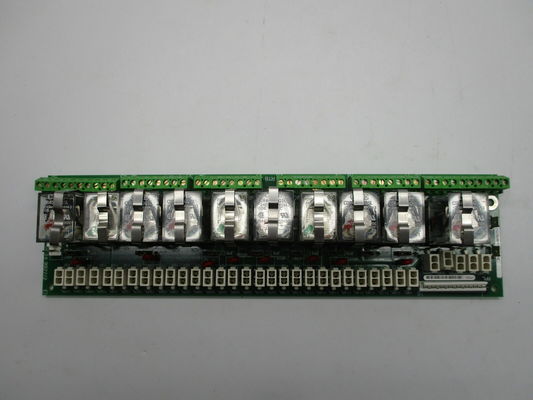

1. • Board Layout and Connectors
     • The DS200RTBAG2A is a printed circuit board designed with a layout that accommodates its various components. It has a 16 - pin connector (RPL) and a 2 - pin connector (OPT PL) which are crucial for its input - output (I/O) connection to the LTBA board. These connectors are strategically placed to ensure easy and reliable cabling, allowing for efficient signal transfer between different boards in the system. The pin - out configuration of these connectors is designed to support specific functions such as power supply, signal input, and output, which are essential for the proper operation of the relay - based functions of the board.
   • Relay Configuration
     • The board is equipped with ten relays, which are divided into two types: DPDT (Double - Pole Double - Throw) and 4PDT (Four - Pole Double - Throw). There are seven DPDT relays, each containing two C - type contacts. These contacts have a contact rating of 10A, which means they can handle a relatively high current load. The coil voltage of these relays is 110VDC, and they are located between K20 - K26. The other three relays are of the 4PDT type, with each relay having four contacts and a contact rating of 1A. The coil voltage for these 4PDT relays is also 110VDC. This combination of different relay types and configurations provides flexibility in terms of the types of circuits and signals that can be controlled and switched.
   • Protection Mechanisms
     • All the on - board relays are protected by 130VAC Metal - Oxide Varistors (MOVs). These MOVs play a critical role in safeguarding the relays from voltage surges and transient over - voltages. In an industrial environment, electrical systems are often subject to power fluctuations, lightning strikes, and other sources of electrical interference. The MOVs act as a first line of defense, absorbing excess voltage and preventing damage to the sensitive relay components. This protection helps to ensure the long - term reliability and stability of the relay - based control functions of the DS200RTBAG2A.
2. Function - Specific Features
   • Power and Voltage Specifications
     • The DS200RTBAG2A operates at a working voltage of 220V and has an output frequency of 51. The specific voltage and frequency requirements are designed to match the power - supply standards of many industrial settings. The 220V operating voltage provides the necessary power to drive the relays and other components on the board. The output frequency of 51 is likely related to the internal processing or the electrical characteristics of the signals being generated or processed. These specifications ensure that the board can function properly within the context of the overall electrical system it is part of.
   • Communication Capabilities
     • The board has built - in Ethernet user - support communication. This allows it to connect to other devices and systems through an Ethernet network. It supports SRTP (Secure Real - Time Transport Protocol) and Modbus TCP/IP application protocols. The SRTP support provides a secure way to transmit real - time data, which is crucial for applications where data integrity and privacy are important. The Modbus TCP/IP support enables seamless integration with a wide range of industrial - control systems that use the Modbus protocol for communication. This communication functionality allows the DS200RTBAG2A to exchange information such as status updates, control commands, and sensor data with other components in the system.
   • Programming and Processing Features
     • The DS200RTBAG2A offers an expandable processing capacity. This means that users can build more powerful systems without the need to change the software. It is programmable through Proficy Logic Developer PLC Machine Edition. This software provides a user - friendly environment for programming the board. The supported programming languages include Ladder Diagram (LDI), Instruction List (IL), Structured Text (ST), and C Block. These languages offer different programming paradigms, allowing programmers with different backgrounds and preferences to develop custom - control logic for the board. For example, the Ladder Diagram language is intuitive for those familiar with traditional relay - logic diagrams, while the Structured Text language is more suitable for complex algorithmic programming.

Features:DS200RTBAG2A

• • Versatile Relay Types and Ratings
    • The presence of two types of relays, DPDT and 4PDT, provides flexibility in circuit configuration. The seven DPDT relays with 10A contact rating are suitable for handling high - current applications such as power - switching circuits. For example, they can be used to control the power supply to heavy - duty motors or large - scale industrial equipment. The three 4PDT relays with 1A contact rating are more appropriate for applications where multiple low - power signals need to be switched or routed, like in a control - panel circuit for indicating lights or small - scale actuators.
    • The 110VDC coil voltage for all relays ensures consistent and reliable operation. It allows for efficient power consumption and enables the relays to respond quickly to control signals. This coil voltage is a standard value that simplifies the power - supply requirements and compatibility with other components in the system.
  • Relay Protection
    • The use of 130VAC Metal - Oxide Varistors (MOVs) to protect all relays is a significant feature. These MOVs prevent damage to the relays from voltage surges and transient over - voltages. In an industrial environment with frequent power fluctuations and electrical noise, this protection is essential. It extends the lifespan of the relays and reduces the likelihood of relay - failure - related system malfunctions. For example, in a plant with large - scale machinery that can cause power - line disturbances, the MOV - protected relays can continue to operate smoothly.
• Communication - Related Features
  • Ethernet - Based Communication
    • The built - in Ethernet user - support communication is a key feature. It enables the DS200RTBAG2A to connect to a wide range of devices and systems in an industrial network. Ethernet is a widely - used and high - speed communication standard, allowing for efficient data transfer over long distances and in complex network topologies. This connection can be used to integrate the board into a plant - wide Supervisory Control and Data Acquisition (SCADA) system or to communicate with other Programmable Logic Controllers (PLCs) and Human - Machine Interfaces (HMIs).
    • The support for SRTP and Modbus TCP/IP application protocols enhances its communication capabilities. SRTP provides a secure communication channel, which is crucial for applications dealing with sensitive data such as production - process - related information or security - related control signals. Modbus TCP/IP is a well - established industrial - communication protocol that allows for seamless interaction with a vast number of industrial - automation devices and systems.
• Programming and Expandability Features
  • Expandable Processing Capacity
    • The expandable processing capacity of the DS200RTBAG2A is a valuable feature. It allows users to upgrade and enhance the functionality of the system without having to rewrite the software. This means that as the requirements of the industrial process change or expand, the board can adapt to handle more complex control tasks and a larger number of I/O connections. For example, in a manufacturing plant that is increasing its production capacity and adding more equipment, the board can be easily reconfigured to manage the additional control requirements.
  • Programming Language Support
    • The support for multiple programming languages including Ladder Diagram (LDI), Instruction List (IL), Structured Text (ST), and C Block provides flexibility for programmers. Different languages are suitable for different types of programming tasks and user - preferences. The LDI language is beneficial for those who are more familiar with traditional electrical - relay - based logic diagrams, as it provides a visual and intuitive way to program control logic. The ST and C Block languages, on the other hand, are more powerful for implementing complex algorithms and data - processing functions. The ability to choose from these languages allows for efficient and customized programming of the board's functions.

Technical Parameters:DS200RTBAG2A

1. • Power Supply
     • Voltage: The DS200RTBAG2A operates with a working voltage of 220V AC (Alternating Current). This voltage level is a standard industrial power - supply voltage in many regions and is used to power the internal components such as relays and communication modules.
     • Frequency: It has an output frequency of 51 Hz. The frequency is related to the AC power supply and affects the operation of components such as the relays and any internal oscillators or timers. A stable frequency is important for accurate timing - based operations and to ensure that the electrical equipment connected to the board functions properly.
   • Relay Parameters
     • DPDT Relays: There are seven Double - Pole Double - Throw (DPDT) relays. Each DPDT relay has two C - type contacts. The contact rating for these contacts is 10A. This means that each contact can handle a maximum current of 10A, allowing them to be used in circuits with relatively high - power loads. The coil voltage of these DPDT relays is 110VDC (Direct Current), which is the voltage required to energize the relay coil and cause the contacts to change state.
     • 4PDT Relays: The board also contains three Four - Pole Double - Throw (4PDT) relays. Each 4PDT relay has four contacts with a contact rating of 1A. These relays are suitable for applications where multiple low - power signals need to be switched or routed. The coil voltage of the 4PDT relays is also 110VDC.
   • Protection Device Specifications
     • The on - board relays are protected by 130VAC Metal - Oxide Varistors (MOVs). MOVs are non - linear voltage - dependent resistors that conduct heavily when the voltage across them exceeds a certain threshold. In this case, the 130VAC rating indicates the voltage level at which the MOVs start to conduct and divert excessive voltage, protecting the relays from voltage surges and transient over - voltages.
2. Communication Interface Parameters
   • Ethernet
     • Communication Standard: The board features built - in Ethernet user - support communication. It adheres to the Ethernet standards, which typically include IEEE 802.3 for the physical - layer and data - link - layer protocols. This allows it to communicate with other Ethernet - enabled devices in a local - area - network (LAN) or wide - area - network (WAN) environment.
     • Supported Protocols: It supports SRTP (Secure Real - Time Transport Protocol) and Modbus TCP/IP application protocols. SRTP provides a secure means of transmitting real - time data, with features such as encryption and authentication to protect the integrity and privacy of the communication. Modbus TCP/IP is a widely - used industrial - communication protocol that enables seamless communication between the DS200RTBAG2A and other industrial - automation devices, such as Programmable Logic Controllers (PLCs), sensors, and actuators.
3. Processing and Programming Parameters
   • Processing Capacity
     • The DS200RTBAG2A has an expandable processing capacity. While the exact details of the processing power (such as the number of instructions per second or the amount of memory available for processing) may not be specified, the expandability allows users to build more powerful systems without the need to change the software. This implies that additional functionality can be added, such as handling more I/O (Input/Output) points, more complex control algorithms, or more extensive communication tasks.
   • Programming Languages
     • It is programmable through Proficy Logic Developer PLC Machine Edition. The supported programming languages include Ladder Diagram (LDI), Instruction List (IL), Structured Text (ST), and C Block. Each language has its own characteristics:
     • Ladder Diagram (LDI): A graphical programming language that resembles electrical - relay - logic diagrams. It is intuitive for users with an electrical - engineering background and is well - suited for simple control - logic implementation such as basic motor - control circuits or simple sequential - operation circuits.
     • Instruction List (IL): A text - based programming language that provides a low - level, step - by - step approach to programming. It is useful for precise control of the processor's operations and is often used for implementing fine - grained control algorithms.
     • Structured Text (ST): A high - level programming language similar to traditional programming languages like Pascal or C. It is suitable for more complex algorithmic programming, such as implementing advanced control strategies like PID (Proportional - Integral - Derivative) control or state - machine - based control.
     • C Block: Allows for the integration of C - language code into the programming environment. This is beneficial for users who want to use existing C - language libraries or algorithms, or for implementing highly - optimized or specialized functions that are more easily written in C.

Applications:DS200RTBAG2A

1. • Motor Control and Protection
     • In industrial settings, the DS200RTBAG2A can be used to control and protect motors. The DPDT relays with 10A contact rating are suitable for handling the power supply to large motors. For example, in a manufacturing plant with conveyor belts, the relays can be used to start, stop, and reverse the motors that drive the belts. The 110VDC coil voltage of the relays ensures reliable operation and quick response to control signals. The Metal - Oxide Varistors (MOVs) protecting the relays prevent damage from voltage surges during motor startup and shutdown, which are common sources of electrical stress.
     • The board's communication capabilities, such as Ethernet and Modbus TCP/IP support, allow for remote monitoring and control of the motor - control system. Operators can send commands to start or stop motors and receive status updates such as motor - running status, current consumption, and temperature (if connected to appropriate sensors) from a central control room.
   • Process Automation and Sequencing
     • In chemical or food - processing plants, the DS200RTBAG2A can be used to automate and sequence various processes. The expandable processing capacity and support for multiple programming languages like Ladder Diagram (LDI), Instruction List (IL), Structured Text (ST), and C Block enable the implementation of complex process - control logic. For example, it can control the opening and closing of valves, the operation of pumps, and the activation of heaters in a chemical - reaction process. The relays can switch the power supply to these components according to a predefined sequence and based on real - time sensor data (such as temperature, pressure, or flow - rate sensors) received through the communication interfaces.
2. Power - Generation and - Distribution Systems
   • Substation Automation
     • In electrical substations, the DS200RTBAG2A can play a role in automation and protection. The relays can be used to control the switching of circuit breakers and isolation switches. The 4PDT relays with 1A contact rating can be used to handle the control and indication signals of these switching devices. The Ethernet - based communication with support for SRTP and Modbus TCP/IP allows for secure and efficient communication with other substation automation devices such as Intelligent Electronic Devices (IEDs), Remote Terminal Units (RTUs), and Supervisory Control and Data Acquisition (SCADA) systems. The MOV - protected relays safeguard against voltage surges caused by lightning strikes or power - grid disturbances that can affect the substation equipment.
     • The board can also be used for power - quality monitoring and control. By connecting appropriate sensors (such as voltage and current sensors) through its I/O connectors and using the processing and communication capabilities, it can monitor parameters like voltage sags, swells, and harmonics. Based on this monitoring, it can trigger control actions such as adjusting the tap - changer settings of transformers or activating reactive - power - compensation devices.
3. Building Automation and Facility Management
   • HVAC System Control
     • In Heating, Ventilation, and Air - Conditioning (HVAC) systems, the DS200RTBAG2A can control the operation of various components. The relays can be used to turn on and off compressors, fans, and pumps. For example, in a large commercial building, the board can control the cooling - tower fans and the chiller - compressor motors. The communication interfaces allow for integration with a building - management system, enabling remote control and energy - management features. The expandable processing capacity can be utilized to implement more advanced control strategies such as demand - response programs, where the HVAC system adjusts its operation based on the building's energy - demand and - cost conditions.
     • Lighting - System Control
     • The DS200RTBAG2A can also be used to control lighting systems. The relays can switch the power supply to different lighting circuits, such as fluorescent - lamp circuits or LED - lighting groups. The programming capabilities allow for the implementation of lighting - control schedules based on time - of - day, occupancy - sensing, or daylight - harvesting concepts. For example, the board can dim the lights during daylight hours or turn them off when a room is unoccupied, helping to save energy and provide a more comfortable environment.

Customization:DS200RTBAG2A

• • Using Ladder Diagram (LDI)
    • With the support of LDI programming language, users can create custom relay - like control logic. For example, in a conveyor - belt system, you can design a sequence where the DS200RTBAG2A activates the motor to start the belt, and then based on a sensor input (like an object - detection sensor), it can trigger another relay to activate a sorting mechanism. The intuitive graphical nature of LDI makes it easy to visualize and implement such sequential and interlocking control logic.
  • Instruction List (IL) and Structured Text (ST)
    • For more complex algorithms and decision - making processes, IL and ST come into play. In a process - control application such as a chemical - reaction vessel, you can use IL to precisely control the timing and sequence of adding different chemicals. ST can be used to implement more advanced control strategies. For example, you can write code to adjust the temperature and pressure inside the vessel based on a PID (Proportional - Integral - Derivative) control algorithm. The flexibility of these languages allows for fine - tuning the control parameters according to the specific requirements of the chemical - reaction process.
  • C Block Integration
    • The ability to use C - language code through C Block provides a powerful option for customization. In applications where high - performance computing or access to specific C - libraries is required, this is a great advantage. For example, if you want to implement a custom - encryption algorithm for secure communication of critical process - control data, you can use C Block to integrate the C - language code for the encryption algorithm.
• Communication Protocol Customization
  • Ethernet - Based Protocols
    • The board's support for Ethernet allows for customization of communication protocols. While it already supports SRTP and Modbus TCP/IP, users can configure how these protocols are used. For example, in a network - intensive industrial - automation setup, you can adjust the settings of the Modbus TCP/IP protocol to optimize the data - transfer rate and packet - size for efficient communication between the DS200RTBAG2A and other PLCs or HMIs. You can also configure security settings for SRTP, such as encryption keys and authentication methods, to enhance the security of the real - time data - transfer process.

2. Hardware Customization

• Relay Configuration and Wiring
  • Relay Wiring Customization
    • The ten relays on the board can be wired differently according to the specific application. For example, in a power - distribution system, the DPDT relays can be wired to create redundant power - switching circuits. The 4PDT relays can be used to provide multiple control - signal paths for different protection devices. The pin - out of the connectors associated with the relays can be adjusted to match the external wiring requirements of the system.
  • Adding External Relays or Contactors
    • Depending on the power - handling or switching requirements, additional external relays or contactors can be added to the system. The DS200RTBAG2A can be used to control these external devices through its output signals. For example, if you need to handle a higher - current load than the existing relays can manage, you can add high - power contactors and use the board's relays to control their activation.
• Connector Customization
  • I/O Connector Pin - Out
    • The 16 - pin (RPL) and 2 - pin (OPT PL) connectors can have their pin - assignments customized. In an application where you want to connect specific sensors or actuators with non - standard pin - out requirements, you can reconfigure the pins to match the device - connection needs. For example, if you have a custom - designed temperature - sensor module with a different power - and - data - pin configuration, you can adjust the RPL connector's pin - out to establish a proper connection.
  • Adding Expansion Connectors
    • For enhanced functionality, expansion connectors can be added to the board. This can be used to connect additional modules such as signal - conditioning modules, communication - expansion modules, or power - distribution - enhancement modules. For example, if you need to add wireless - communication capabilities to the system, you can attach a wireless - communication - module - connector and integrate a suitable module to enable remote data - transfer without relying solely on the Ethernet connection.
