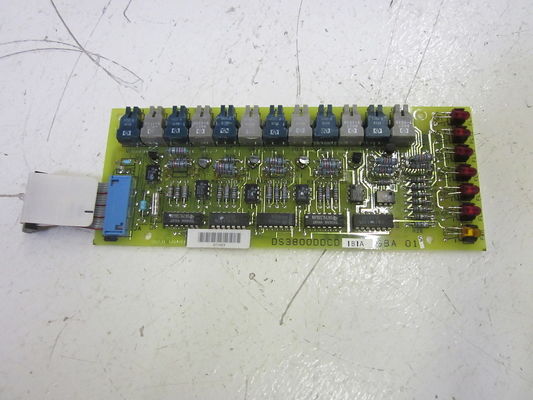

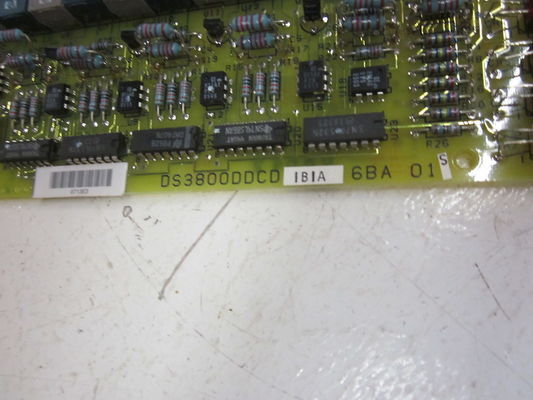

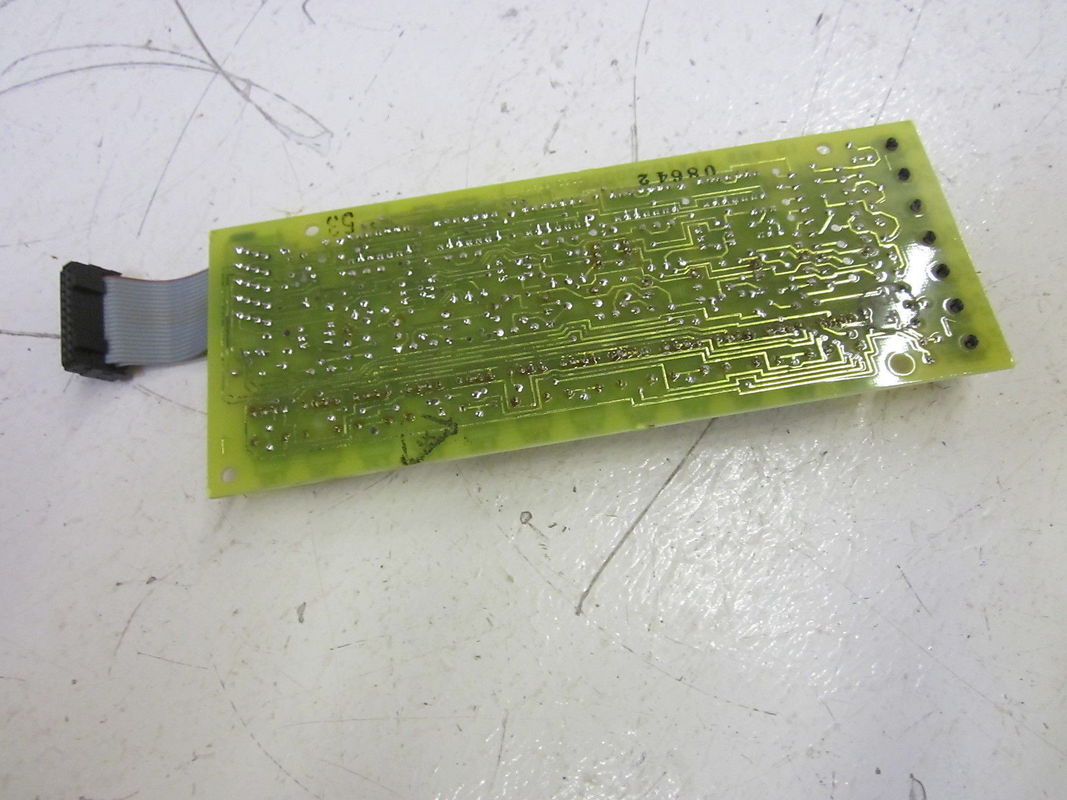

General Electric DS3800DDCD Auxiliary Interface Panel

Product Description:DS3800DDCD

• Input Signal Range: The analog input channels can handle a specific range of input voltages or currents. Commonly, they can accept signals within a range like -10V to +10V for voltage signals or 4 - 20mA (milliamps) for current signals. However, depending on the specific configuration and the sensors being used, other ranges may also be supported. The ability to handle these standard ranges makes it compatible with a wide variety of sensors that measure physical quantities such as temperature, pressure, and flow rate in industrial processes. For example, many temperature sensors output a voltage within the -10V to +10V range that varies with the temperature, and pressure sensors might produce a current in the 4 - 20mA range proportional to the pressure.
• Resolution: The analog input channels have a specified resolution, usually expressed in bits. A higher-resolution analog input channel, such as a 16-bit resolution channel, can distinguish between smaller variations in the input signal compared to a lower-resolution one. For instance, a 12-bit analog input might have a resolution of approximately 4.88mV (for a ±10V input range), while a 16-bit input could have a resolution of around 0.305mV for the same range. This higher precision is essential for accurately measuring physical quantities in industrial applications, as it allows for more detailed analysis and more precise control actions based on the measured values.
• Sampling Rate: The device has a defined sampling rate for the analog input channels, which indicates how often it takes samples of the incoming analog signals. The sampling rate is typically specified in samples per second (Hz). A higher sampling rate allows for more frequent measurements of the physical quantity being monitored, providing a more detailed and accurate representation of its variations over time. In a fast-changing industrial process, like a chemical reaction where temperature and pressure can fluctuate rapidly, a higher sampling rate ensures that the device can capture these changes promptly and make appropriate control decisions based on the latest data.

Analog Output



• Output Signal Range: Analog output channels on the DS3800DDCD can generate analog voltage or current signals within a defined range, which is often similar to the input range for consistency and ease of use. For example, if the input range for analog signals is -10V to +10V, the analog output channels might also be able to generate voltages within this range. The accuracy of the analog output is of utmost importance, as it directly impacts the precision with which actuators like valves or variable speed drives can be controlled.
• Accuracy: The device has a specified accuracy for its analog output, usually expressed as a percentage of the full-scale output range. For example, an analog output with an accuracy of ±0.1% of the full-scale range ensures that the generated output signal is within a very narrow tolerance of the desired value. This high level of accuracy is crucial for precisely setting the position of a valve to control fluid flow or adjusting the speed of a variable speed drive in industrial applications.
• Settling Time: The analog output channels have a defined settling time, which is the time it takes for the output signal to stabilize within a specified tolerance after a change in the control command. A short settling time is desirable, especially in applications where quick and precise adjustments are required. For instance, in a process where the flow rate of a chemical needs to be adjusted rapidly by changing the position of a control valve, a short settling time on the analog output ensures that the valve reaches the desired position quickly and accurately.



Features:DS3800DDCD

• Input Voltage Range: The DS3800DDCD operates within a specific supply voltage range, which could be something like 24VDC or 120/240VAC. The device incorporates built-in power supply circuits that regulate the input voltage to ensure stable operation even in the presence of some degree of voltage fluctuation. Industrial power supplies often experience variations due to factors like the operation of other heavy machinery or electrical equipment in the same facility, and the power supply circuits within the DS3800DDCD help to mitigate these effects, maintaining consistent performance.
• Power Consumption: The power consumption of the device varies depending on its operating state. In an idle state, when it is not actively processing data or driving multiple I/O devices, the power consumption is relatively low. However, when it is engaged in tasks such as processing large amounts of sensor data, executing control commands, or powering multiple output devices, the power consumption increases. The specific power consumption values in different states are usually provided by the manufacturer to assist in proper system design and power management in industrial applications.



Operating Temperature

Temperature Range: The device is designed to function within a certain temperature range, usually spanning from -20°C to +60°C or potentially wider in some cases. This wide temperature tolerance allows it to be used in various industrial environments, whether it's a cold outdoor installation, like a power generation plant in a cold climate region, or a hot factory floor where heat-generating equipment is present. The components and packaging of the DS3800DDCD are carefully selected and designed to withstand these temperature variations without significant performance degradation, ensuring reliable operation over an extended period.

Technical Parameters:DS3800DDCD

Automated Production Lines



• Robotic Arm Control: In automotive manufacturing, electronics assembly, and other industries with automated production processes, the DS3800DDCD is used to control the precise movements of robotic arms. It can receive input signals from sensors that detect the position and orientation of workpieces or parts on the production line. Based on this information and custom-programmed control logic, it directs the robotic arms to perform tasks such as welding, painting, picking and placing components, and assembly operations with high accuracy. For example, in an electronics factory, it can ensure that delicate components are precisely placed on a circuit board during the assembly process.
• Conveyor Belt Management: The device manages the operation of conveyor belts to maintain a smooth flow of materials between different workstations. It monitors the status of products on the conveyor using optical sensors connected to its digital inputs. Based on this monitoring, it adjusts the speed and direction of the belts through its digital outputs to prevent jams and ensure efficient transfer of parts from one stage of production to another. In a food packaging plant, it coordinates the movement of products from the filling station to the sealing and labeling stations.
• Quality Control and Inspection: It plays a crucial role in quality control by interfacing with various inspection sensors. For instance, it can connect to vision systems that check for defects in manufactured products, such as cracks in metal parts, incorrect labeling, or flaws in painted surfaces. Based on the data received from these sensors, the DS3800DDCD can trigger alarms, stop the production line, or mark defective items for further inspection or rejection, ensuring that only products meeting the required quality standards are passed on to the next stage or shipped to customers.

CNC Machining Centers



• Tool Movement and Speed Control: In computer numerical control (CNC) machining operations, the DS3800DDCD interprets the programmed instructions (usually in the form of G-code) and controls the movement of machine tools along multiple axes. It sends precise control signals to the motors that drive the cutting tools, enabling accurate shaping of workpieces. Additionally, the analog output channels of the device can adjust the spindle speed and feed rate of the cutting tool based on real-time sensor data. For example, if a force sensor detects excessive load on the cutting tool during a milling operation, the device can reduce the spindle speed or feed rate to prevent tool breakage and improve the quality of the machined parts.
• Process Monitoring and Optimization: The device continuously monitors various parameters of the CNC machine, including temperature sensors on the spindle, lubrication system pressure sensors, and vibration sensors. If any of these parameters deviate from the normal operating range, it can take preventive measures like adjusting the cutting parameters, triggering an alarm for the operator, or even shutting down the machine to avoid damage. By analyzing the collected data over time, it can also help in optimizing the machining process to improve productivity and part quality.

2. Power Generation Industry

Fossil Fuel Power Plants



• Coal Feeding and Combustion Control: In coal-fired power plants, the DS3800DDCD controls the operation of coal feeders to ensure a consistent supply of coal to the furnace. It can adjust the speed of the feeder conveyors based on the power demand and the level of coal in the bunker, which is monitored through sensors connected to its digital and analog inputs. The device also manages the combustion process by controlling the air flow into the furnace. By receiving signals from oxygen sensors and temperature sensors in the combustion chamber, it can regulate the opening of dampers and fans to optimize the air-fuel ratio, maximizing the efficiency of power generation while minimizing emissions.
• Turbine and Generator Monitoring: For steam turbines in these plants, the DS3800DDCD monitors parameters like turbine speed, steam pressure, and temperature. Based on this real-time data, it can adjust the governor settings to maintain a stable rotational speed and control the steam inlet valves to regulate power output. In case of abnormal conditions, such as a sudden drop in steam pressure or an excessive increase in turbine vibration, it can trigger emergency shutdown procedures to protect the turbine and other associated equipment. It also participates in the plant's overall monitoring and maintenance systems by communicating with other control systems and sending data related to equipment status and performance to a central monitoring station.
• Auxiliary System Management: The device controls various auxiliary systems in the power plant, such as cooling water pumps, lubrication systems, and condensate pumps. It ensures that these systems operate within the required parameters by adjusting the speed and operation of the pumps based on sensor inputs related to temperature, pressure, and flow rate. This helps in maintaining the proper functioning of the main power generation equipment and improving the overall reliability of the plant.

Renewable Energy Power Plants



• Wind Turbine Control: In wind farms, the DS3800DDCD is used to control the pitch angle of wind turbine blades. By receiving wind speed and direction data from anemometers and other sensors connected to its analog inputs, it can adjust the pitch angle of the blades to optimize the power capture efficiency of the turbine. It also manages the operation of the generator and the grid connection system. When the wind speed is within the operating range, it ensures that the generated power is smoothly integrated into the electrical grid by controlling the power converter and monitoring grid parameters like voltage and frequency. In case of high winds or other abnormal conditions that could damage the turbine, it can initiate blade feathering and shutdown procedures to protect the equipment.
• Solar Power Plant Operation: In solar power plants, the device controls the tracking mechanism of solar panels to ensure they are always oriented towards the sun for maximum sunlight absorption. It can receive input from light sensors and use this information to adjust the position of the panels throughout the day. Additionally, it monitors the performance of the photovoltaic cells by tracking parameters like voltage, current, and power output. If any cell shows signs of underperformance or failure, it can alert maintenance personnel and help in isolating the faulty component for repair or replacement. The DS3800DDCD also coordinates the operation of inverters and other electrical components in the solar power plant to ensure efficient conversion and transmission of the generated electricity to the grid.

3. Chemical Processing Industry

Chemical Reactors



• Temperature and Pressure Control: The DS3800DDCD plays a vital role in controlling the key parameters of chemical reactors. It can regulate the temperature inside the reactor by adjusting the flow rate of heating or cooling media through its analog output channels, which control valves connected to the heating or cooling systems. Temperature sensors within the reactor send analog signals to the device's inputs, and based on the programmed control logic, it maintains the desired temperature setpoint. Similarly, it controls the pressure within the reactor by opening or closing pressure relief valves or adjusting the flow of reactants and products in and out of the reactor. For example, if the pressure inside the reactor exceeds a certain threshold, it can quickly open a relief valve to prevent a dangerous situation.
• Reactant Dosing and Process Monitoring: The device manages the dosing of reactants by precisely controlling the flow of chemicals into the reactor based on the reaction requirements and the current state of the reaction, as determined by sensors monitoring parameters like reactant concentrations and reaction rates. It continuously monitors various sensors for any signs of abnormal conditions such as leaks, excessive temperature spikes, or abnormal pressure fluctuations. If any such issues are detected, it can immediately trigger emergency shutdown procedures, isolate the reactor from the rest of the process, and notify plant operators and safety systems.
• Safety and Emergency Response: In chemical processing, safety is of utmost importance. The DS3800DDCD is designed to quickly respond to any hazardous situations. It can interface with emergency shutdown systems, fire suppression systems, and ventilation systems. In case of a chemical spill, fire, or other emergencies, it can activate the appropriate safety measures to protect personnel, equipment, and the environment.

Applications:DS3800DDCD

Custom Control Logic Design



• Tailoring Decision-Making Structures: Users can create highly customized control logic using programming tools compatible with the DS3800DDCD. Conditional statements like "if-then-else" can be designed to handle specific conditions in the industrial process. For example, in a manufacturing plant where different product models are produced, the control logic can be programmed such that if the detected product is of a certain model, specific assembly steps or machine settings are applied. In an automotive assembly line, if the vehicle being assembled is an electric model, the device can direct different components to be installed compared to a gasoline-powered model.
• Implementing Looping Constructs: Looping structures are useful for repetitive tasks. For instance, in a packaging operation where multiple items need to be packaged in a set pattern, a loop can be programmed to repeat the steps of picking an item, placing it in a package, and sealing the package for a predefined number of cycles. This can be customized based on the quantity of items per package or the overall packaging requirements of the production run. In a bottling plant, a loop can control the filling and capping process for each bottle passing through the line.
• Incorporating Arithmetic Operations: Arithmetic operations can be integrated into the control logic to perform calculations based on sensor inputs. In a chemical mixing process, the device can calculate the exact amounts of different chemicals to be added based on real-time flow rate measurements from flow meters and the desired concentration ratios. In a heating or cooling system, it can determine the appropriate time to maintain a certain temperature based on the heat transfer rate and the volume of the space being conditioned.

Function Integration and Expansion



• Adding New Functions Based on Sensors: As new sensors are introduced to monitor additional parameters in an industrial process, the DS3800DDCD can be customized to integrate and utilize the data from these sensors. For example, in a power generation plant, if a new sensor is installed to measure the sulfur content in emissions, a function can be written to process this data. The function could then trigger alerts if the sulfur content exceeds regulatory limits or adjust the combustion process to optimize emissions control.
• Developing Custom Subroutines: Custom subroutines can be developed to enhance the functionality of the device. In a food processing line, a subroutine could be created to perform a specific image analysis on products passing through a vision system. This subroutine might check for the uniformity of food coloring or the presence of specific markings on the products. It can then be called at appropriate points in the main control program to ensure consistent product quality and compliance with quality standards.

2. Communication Customization

Protocol Selection and Configuration



• Ethernet Protocol Customization: Depending on the network infrastructure and the devices present in the industrial setup, users can choose to enable or disable specific Ethernet-based protocols on the DS3800DDCD. For example, if the plant has a mix of devices that support both TCP/IP and Modbus/TCP, the user can configure the device to communicate using the most suitable protocol for each connection. The IP address, subnet mask, and default gateway can also be customized. In a large industrial facility with multiple subnets, the device can be assigned an IP address within the appropriate subnet to ensure seamless communication with other devices in that network segment.
• Serial Protocol Customization: For serial communication, users can select between RS-232 and RS-485 protocols based on the requirements of the connected devices. If there are legacy devices that only communicate via RS-232, the DS3800DDCD can be configured to use this protocol. The baud rate, data bits, stop bits, and parity settings for both RS-232 and RS-485 can be modified. For instance, when connecting to a sensor that requires a specific baud rate for accurate data transmission, the user can set the appropriate baud rate on the device's serial interface to ensure reliable communication.

Data Format and Transmission Customization



• Selective Data Transmission: Users can define which specific data fields are sent or received during communication. In a water treatment plant, where numerous sensors are collecting data on various water quality parameters, the user can configure the DS3800DDCD to transmit only the most critical data, such as pH, turbidity, and chlorine levels, to the central monitoring system at specific intervals. This reduces network traffic while still providing essential information for effective monitoring and decision-making.
• Adjusting Data Transmission Frequency: The frequency of data transmission can be customized based on the rate of change of the data and the monitoring requirements. For example, in a relatively stable manufacturing environment where temperature and humidity sensors change slowly, the device can be set to send updates less frequently, perhaps every 10 minutes. In contrast, in a high-speed automated production line where the position of robotic arms needs to be monitored in real-time, the device can be configured to transmit position data at a very high frequency, such as several times per second.
• Data Encoding and Formatting: The device can be programmed to package data in a specific format that is compatible with the receiving system. For instance, data can be formatted as JSON (JavaScript Object Notation) or XML (Extensible Markup Language) depending on the requirements of the software used for data analysis, storage, or visualization in the industrial network. This ensures seamless integration and easy processing of the data by other systems in the network.

3. Input/Output (I/O) Interface Customization

Digital I/O Customization



• Input Voltage Threshold Adjustment: The input voltage thresholds for digital input ports can be adjusted to match the output characteristics of different types of digital sensors. In an industrial automation setup with a variety of proximity sensors having different voltage levels for indicating the presence or absence of an object, the user can configure the input thresholds on the DS3800DDCD to accurately detect the signals from each sensor. For example, if a particular sensor outputs a logic high signal at a voltage slightly lower than the default threshold, the threshold can be lowered to ensure proper recognition of the sensor's output.
• Output Voltage and Current Level Modification: The output voltage and current levels of digital output ports can be customized to drive specific load devices more effectively. If a motor requires a higher starting current than the default output of the device can provide, the current limit can be increased (within the device's capabilities) by adjusting relevant settings. Similarly, if an indicator light needs a different voltage level for proper illumination, the output voltage can be adjusted accordingly to ensure it functions as intended.
• Function Repurposing of Digital I/O Ports: The functionality of digital I/O ports can be repurposed based on the application requirements. For example, a digital input port that was initially intended to monitor a switch can be configured to receive a pulsed signal from a different device for a specific timing or counting function. Or a digital output port that was used to control a small motor can be set to drive a relay for a different electrical circuit depending on the evolving needs of the industrial process.

Analog I/O Customization



• Input Signal Range Adjustment: The voltage or current ranges for analog input channels can be set according to the output range of the connected sensors. In a temperature monitoring application where a custom-designed temperature sensor has an output voltage range different from the standard -10V to +10V, the analog input range on the DS3800DDCD can be adjusted to match that specific sensor's output. This allows for accurate conversion of the sensor's signal into a digital value for processing.
• Resolution Customization: The resolution of the analog input channels can be customized to balance the need for precision and data processing requirements. In a process where extremely accurate measurements are not essential but a higher sampling rate is preferred to capture rapid changes, the resolution can be decreased to free up processing resources and increase the sampling frequency. Conversely, in a situation where precise measurements are crucial (like in a pharmaceutical formulation process), the resolution can be increased to obtain more detailed data.
• Output Signal Range and Accuracy Calibration: The output signal range and accuracy of the analog output channels can be calibrated and adjusted for specific actuators. For example, if a valve actuator requires a very precise control signal within a narrow voltage range to achieve accurate positioning, the analog output range and accuracy settings of the device can be fine-tuned to meet those requirements. This ensures that the actuator responds as expected and enables precise control of industrial processes.



Customization:DS3800DDCD



Custom Control Logic Design



• Tailoring Decision-Making Structures: Users can create highly customized control logic using programming tools compatible with the DS3800DDCD. Conditional statements like "if-then-else" can be designed to handle specific conditions in the industrial process. For example, in a manufacturing plant where different product models are produced, the control logic can be programmed such that if the detected product is of a certain model, specific assembly steps or machine settings are applied. In an automotive assembly line, if the vehicle being assembled is an electric model, the device can direct different components to be installed compared to a gasoline-powered model.
• Implementing Looping Constructs: Looping structures are useful for repetitive tasks. For instance, in a packaging operation where multiple items need to be packaged in a set pattern, a loop can be programmed to repeat the steps of picking an item, placing it in a package, and sealing the package for a predefined number of cycles. This can be customized based on the quantity of items per package or the overall packaging requirements of the production run. In a bottling plant, a loop can control the filling and capping process for each bottle passing through the line.
• Incorporating Arithmetic Operations: Arithmetic operations can be integrated into the control logic to perform calculations based on sensor inputs. In a chemical mixing process, the device can calculate the exact amounts of different chemicals to be added based on real-time flow rate measurements from flow meters and the desired concentration ratios. In a heating or cooling system, it can determine the appropriate time to maintain a certain temperature based on the heat transfer rate and the volume of the space being conditioned.

Function Integration and Expansion



• Adding New Functions Based on Sensors: As new sensors are introduced to monitor additional parameters in an industrial process, the DS3800DDCD can be customized to integrate and utilize the data from these sensors. For example, in a power generation plant, if a new sensor is installed to measure the sulfur content in emissions, a function can be written to process this data. The function could then trigger alerts if the sulfur content exceeds regulatory limits or adjust the combustion process to optimize emissions control.
• Developing Custom Subroutines: Custom subroutines can be developed to enhance the functionality of the device. In a food processing line, a subroutine could be created to perform a specific image analysis on products passing through a vision system. This subroutine might check for the uniformity of food coloring or the presence of specific markings on the products. It can then be called at appropriate points in the main control program to ensure consistent product quality and compliance with quality standards.

2. Communication Customization

Protocol Selection and Configuration



• Ethernet Protocol Customization: Depending on the network infrastructure and the devices present in the industrial setup, users can choose to enable or disable specific Ethernet-based protocols on the DS3800DDCD. For example, if the plant has a mix of devices that support both TCP/IP and Modbus/TCP, the user can configure the device to communicate using the most suitable protocol for each connection. The IP address, subnet mask, and default gateway can also be customized. In a large industrial facility with multiple subnets, the device can be assigned an IP address within the appropriate subnet to ensure seamless communication with other devices in that network segment.
• Serial Protocol Customization: For serial communication, users can select between RS-232 and RS-485 protocols based on the requirements of the connected devices. If there are legacy devices that only communicate via RS-232, the DS3800DDCD can be configured to use this protocol. The baud rate, data bits, stop bits, and parity settings for both RS-232 and RS-485 can be modified. For instance, when connecting to a sensor that requires a specific baud rate for accurate data transmission, the user can set the appropriate baud rate on the device's serial interface to ensure reliable communication.

Data Format and Transmission Customization



• Selective Data Transmission: Users can define which specific data fields are sent or received during communication. In a water treatment plant, where numerous sensors are collecting data on various water quality parameters, the user can configure the DS3800DDCD to transmit only the most critical data, such as pH, turbidity, and chlorine levels, to the central monitoring system at specific intervals. This reduces network traffic while still providing essential information for effective monitoring and decision-making.
• Adjusting Data Transmission Frequency: The frequency of data transmission can be customized based on the rate of change of the data and the monitoring requirements. For example, in a relatively stable manufacturing environment where temperature and humidity sensors change slowly, the device can be set to send updates less frequently, perhaps every 10 minutes. In contrast, in a high-speed automated production line where the position of robotic arms needs to be monitored in real-time, the device can be configured to transmit position data at a very high frequency, such as several times per second.
• Data Encoding and Formatting: The device can be programmed to package data in a specific format that is compatible with the receiving system. For instance, data can be formatted as JSON (JavaScript Object Notation) or XML (Extensible Markup Language) depending on the requirements of the software used for data analysis, storage, or visualization in the industrial network. This ensures seamless integration and easy processing of the data by other systems in the network.

3. Input/Output (I/O) Interface Customization

Digital I/O Customization



• Input Voltage Threshold Adjustment: The input voltage thresholds for digital input ports can be adjusted to match the output characteristics of different types of digital sensors. In an industrial automation setup with a variety of proximity sensors having different voltage levels for indicating the presence or absence of an object, the user can configure the input thresholds on the DS3800DDCD to accurately detect the signals from each sensor. For example, if a particular sensor outputs a logic high signal at a voltage slightly lower than the default threshold, the threshold can be lowered to ensure proper recognition of the sensor's output.
• Output Voltage and Current Level Modification: The output voltage and current levels of digital output ports can be customized to drive specific load devices more effectively. If a motor requires a higher starting current than the default output of the device can provide, the current limit can be increased (within the device's capabilities) by adjusting relevant settings. Similarly, if an indicator light needs a different voltage level for proper illumination, the output voltage can be adjusted accordingly to ensure it functions as intended.
• Function Repurposing of Digital I/O Ports: The functionality of digital I/O ports can be repurposed based on the application requirements. For example, a digital input port that was initially intended to monitor a switch can be configured to receive a pulsed signal from a different device for a specific timing or counting function. Or a digital output port that was used to control a small motor can be set to drive a relay for a different electrical circuit depending on the evolving needs of the industrial process.

Analog I/O Customization



• Input Signal Range Adjustment: The voltage or current ranges for analog input channels can be set according to the output range of the connected sensors. In a temperature monitoring application where a custom-designed temperature sensor has an output voltage range different from the standard -10V to +10V, the analog input range on the DS3800DDCD can be adjusted to match that specific sensor's output. This allows for accurate conversion of the sensor's signal into a digital value for processing.
• Resolution Customization: The resolution of the analog input channels can be customized to balance the need for precision and data processing requirements. In a process where extremely accurate measurements are not essential but a higher sampling rate is preferred to capture rapid changes, the resolution can be decreased to free up processing resources and increase the sampling frequency. Conversely, in a situation where precise measurements are crucial (like in a pharmaceutical formulation process), the resolution can be increased to obtain more detailed data.
• Output Signal Range and Accuracy Calibration: The output signal range and accuracy of the analog output channels can be calibrated and adjusted for specific actuators. For example, if a valve actuator requires a very precise control signal within a narrow voltage range to achieve accurate positioning, the analog output range and accuracy settings of the device can be fine-tuned to meet those requirements. This ensures that the actuator responds as expected and enables precise control of industrial processes.

Support and Services:DS3800DDCD

Our Product Technical Support team is dedicated to providing you with expert assistance to ensure your Other product is running smoothly. Our support services include troubleshooting, software updates, and guidance on product usage. We also offer on-site technical services for more complex issues. Our goal is to minimize any downtime and quickly resolve any issues you may encounter with your Other product.
