GE DS3800NADA Peripheral Interface Module The Perfect Choice for Industrial Efficiency

Product Description:DS3800NADA

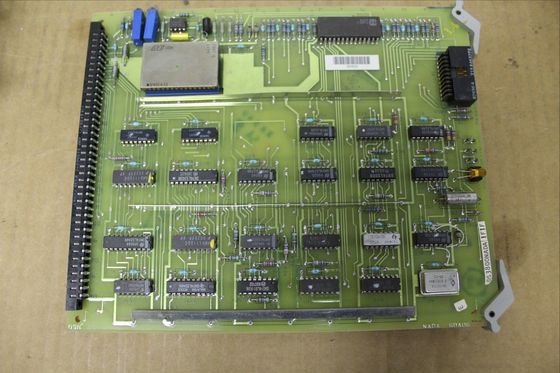

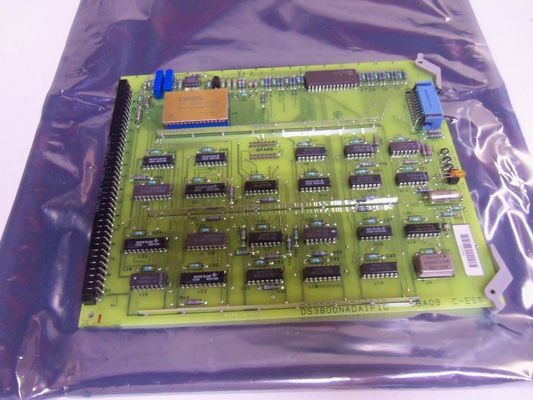

• Structural Reinforcement: The presence of three crossbars spanning the long side of the board serves a vital structural purpose. These crossbars act as reinforcements, significantly reducing the risk of board bending. In industrial environments, where the card may be subject to mechanical stress, such as vibrations from nearby machinery, this reinforcement ensures the physical integrity of the board. This is essential as any bending could potentially damage the delicate internal circuitry, leading to malfunction or inaccurate signal conversion.
• Mounting and Handling Features: The drilled holes at all four corners are standard - issue for secure mounting. They allow the DS3800NADA to be firmly attached to a control panel or a rack - mounted system using appropriate hardware. The two extraction clips, located at the top - right and bottom - right corners, are designed for easy removal of the card. This is beneficial during maintenance or replacement procedures, enabling technicians to quickly and safely remove the card without causing damage to the connectors or other components.
• Indicator and Test Points: The amber LED on the right - hand edge of the board serves as an indicator. It can provide visual feedback regarding the status of the card's operation, such as power - on, data transfer, or error conditions. The three test points positioned above the LED are valuable diagnostic tools. Technicians can use these points to measure electrical parameters like voltage levels, signal waveforms, or check for the presence of specific signals. This aids in troubleshooting any issues that may arise during the card's operation. The two potentiometers on the top - edge of the board are likely used for fine - tuning certain electrical characteristics, such as gain adjustment for analog input signals.

Circuit Components

• Passive Components: The inclusion of small capacitors and multiple metal - film resistors is fundamental to the card's electrical functionality. Capacitors are used for functions such as filtering out electrical noise, decoupling power supplies, and storing and releasing electrical charge as required. Metal - film resistors, on the other hand, are used to control the flow of electric current, set voltage levels, and provide electrical isolation. Their combination ensures the proper conditioning of analog input signals before they are converted into digital form.

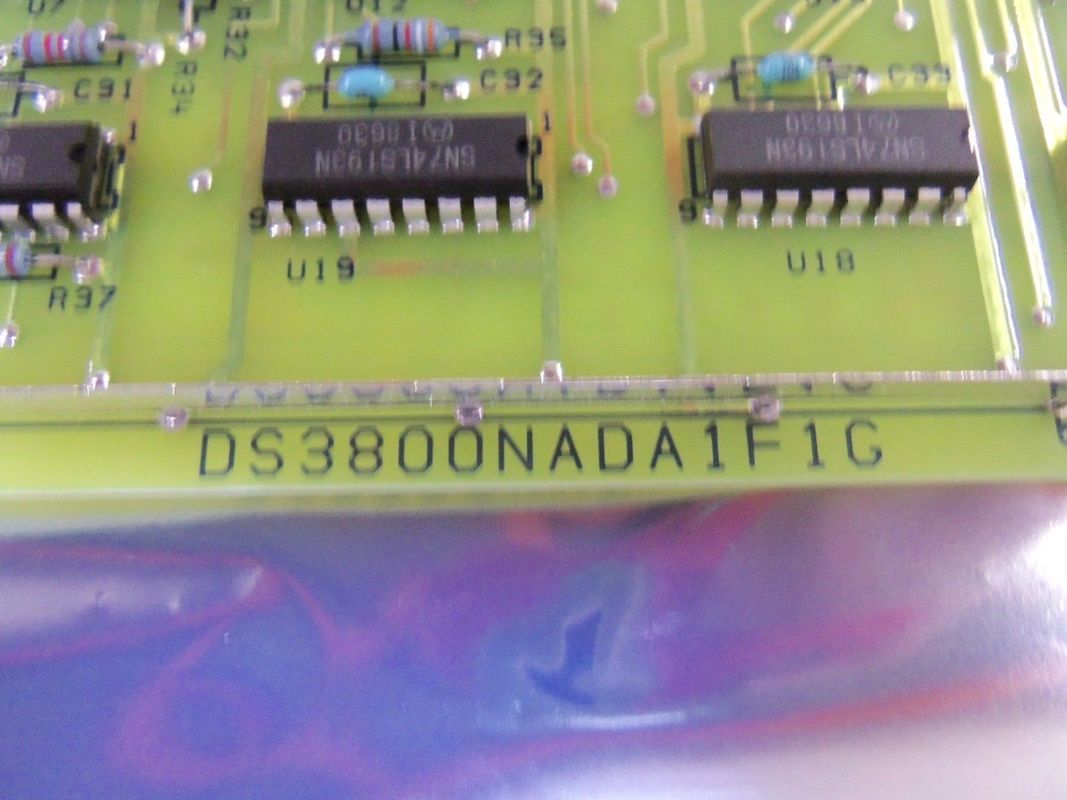

• Integrated Circuits: With twenty - six integrated circuits, the DS3800NADA is equipped to perform complex signal processing tasks. These ICs can include analog - to - digital converters, signal amplifiers, and control logic circuits. The analog - to - digital converters are at the heart of the card, responsible for accurately converting analog signals into digital values. The signal amplifiers boost weak analog signals to a suitable level for conversion, while the control logic circuits manage the overall operation of the card, including data transfer and communication with other components.
• Spare Plated - Through Holes (PTH): The set of spare PTH near the upper - middle part of the board offers flexibility for future modifications. In case additional components need to be added to enhance the card's functionality, such as extra resistors for fine - tuning a particular circuit or a small - scale integrated circuit for a new feature, these holes can be utilized. This forward - thinking design allows the card to adapt to evolving requirements over time.

Communication and Compatibility

• Connector Setup: The presence of a male and a female connector on the board is designed to enable seamless communication with other modules within the industrial control system. These connectors are likely high - density types, capable of transmitting multiple signals, including analog inputs, digital outputs, power, and control signals. The design ensures reliable and secure connections, minimizing the risk of signal loss or interference.
• System Compatibility: The DS3800NADA's compatibility with a wide range of GE automation systems, including Mark V, Mark VI, and Mark VIe turbine control systems, as well as RX3I and RX7I programmable logic controllers (PLCs), makes it a versatile component. This cross - system compatibility allows for easy integration into different industrial setups. For example, in a power plant that uses a combination of Mark VI turbine control systems and RX3I PLCs for overall plant automation, the DS3800NADA can be used to interface between analog sensors and these digital control systems, ensuring smooth data flow and coordinated operation.

Optical Characteristics (if applicable)

• Status Indication: If the amber LED is considered in the context of optical characteristics, it provides a visual indication of the card's status. In a dimly lit industrial control room, the LED's brightness can be easily observed, allowing operators to quickly assess whether the card is functioning correctly. For example, a steady - lit LED may indicate normal operation, while a flashing LED could signal an error condition or an ongoing diagnostic process. This visual feedback is a simple yet effective way to monitor the card's status without the need for additional diagnostic equipment.

Features:DS3800NADA

• Robust Structural Design
  • The three crossbars on the long side of the board are a key feature for structural integrity. They distribute mechanical stress evenly across the board, safeguarding it from warping or bending. In industrial settings filled with vibrating machinery, this design ensures the DS3800NADA remains stable. For instance, in a power plant where gas turbines generate significant vibrations, the crossbars prevent the card from physical damage, which could otherwise disrupt the accurate conversion of analog signals.
• Convenient Mounting and Removal
  • The drilled holes at the four corners and the two extraction clips simplify the installation and removal process. The holes allow for secure mounting within control cabinets or racks, following standard industrial mounting practices. The extraction clips, located at the top - right and bottom - right corners, provide an easy - grip mechanism for technicians. During maintenance or system upgrades, these clips enable quick and damage - free removal of the card, reducing downtime and facilitating efficient servicing.

• 2. Indicator and Diagnostic Features

• Visual Status Indication
  • The amber LED on the right - hand edge serves as an immediate visual cue about the card's operational status. It can convey information such as power - on status, data transfer activity, or error conditions. In a large industrial control room, where multiple systems are operating simultaneously, this LED allows operators to quickly identify if the DS3800NADA is functioning correctly. For example, a continuously illuminated LED might indicate normal operation, while a rapidly flashing LED could signal a communication error or a malfunction in the analog - to - digital conversion process.
• Accessible Test Points
  • The three test points above the LED are invaluable for diagnostic purposes. Technicians can use these points to measure electrical parameters like voltage levels, signal amplitudes, and waveforms. This is crucial for troubleshooting any issues with the analog input signals or the conversion process. For instance, if there is an unexpected output from the A/D converter, the test points can be used to check the integrity of the input analog signal, helping to isolate the problem either in the signal source or within the card itself.
• Adjustable Potentiometers
  • The two potentiometers on the top - edge of the board offer the ability to fine - tune specific electrical characteristics. These can be used to adjust the gain of the analog input signals, for example. In applications where the input analog signals vary in amplitude, the potentiometers allow for optimization of the signal level before conversion. This ensures that the A/D converter receives signals within its optimal input range, improving the accuracy and resolution of the digital output.

• 3. Circuit Component Features

• Comprehensive Passive Component Set
  • The combination of small capacitors and multiple metal - film resistors provides a well - rounded approach to signal conditioning. Capacitors are used for functions like filtering out high - frequency noise, decoupling power supplies to prevent electrical interference, and acting as energy storage elements. Metal - film resistors, on the other hand, are used for precise control of current flow, voltage division, and impedance matching. Together, they ensure that the analog input signals are properly conditioned and prepared for accurate conversion into digital format.
• Powerful Integrated Circuits
  • With twenty - six integrated circuits, the DS3800NADA is equipped to handle complex signal processing tasks. These ICs likely include high - precision A/D converters, which are responsible for accurately translating analog signals into digital values. Signal amplifiers within the ICs boost weak analog signals to a suitable level for conversion. Additionally, control logic circuits manage the overall operation of the card, coordinating data transfer, communication with other components, and ensuring the proper sequencing of conversion processes.
• Flexible Expansion with Spare PTH
  • The set of spare plated - through holes (PTH) near the upper - middle part of the board offers future - proofing capabilities. As industrial requirements evolve, these holes can be used to add additional components. For example, if new sensor technologies are introduced that require additional signal processing components, or if there is a need to enhance the card's functionality with extra resistors or small - scale integrated circuits, the spare PTH can be utilized without the need for a complete board redesign.

• 4. Communication and Compatibility Features

• Versatile Connector Configuration
  • The male and female connectors on the board are designed for seamless communication with other modules in the industrial control system. These connectors can transmit a variety of signals, including analog inputs, digital outputs, power, and control signals. Their high - density design ensures reliable and efficient signal transfer, minimizing the risk of signal loss or interference. This allows the DS3800NADA to interface with a wide range of devices, such as sensors, actuators, and other control boards.
• Broad System Compatibility
  • The compatibility of the DS3800NADA with multiple GE automation systems, such as Mark V, Mark VI, and Mark VIe turbine control systems, as well as RX3I and RX7I programmable logic controllers (PLCs), is a significant advantage. It enables easy integration into different industrial setups. In a large - scale industrial plant that uses a combination of these GE systems for turbine control, power management, and overall process automation, the DS3800NADA can act as a common interface for analog - to - digital conversion, ensuring seamless data flow and coordinated operation across the entire system.

Technical Parameters:DS3800NADA

• Communication Method: Fiber optic
• Optical Interface: Dual wavelength, multimode fiber
• Optical Wavelengths: 820 nm and 1300 nm
• Optical Power Range: -19.5 to -14.5 dBm
• Receiver Sensitivity: -34 dBm
• Optical Connector: ST-type
• Data Transfer Rate: 1 Mbps
• Number of Ports: 1

Electrical

• Power Consumption: 5W maximum

Environmental

• Operating Temperature Range: 0 to 50 degrees Celsius (32 to 122 degrees Fahrenheit)
• Storage Temperature Range: -40 to 70 degrees Celsius (-40 to 158 degrees Fahrenheit)
• Humidity Range: 5% to 95% non-condensing

Circuitry

• Number of Integrated Circuits: Twenty-six, including an analog-to-digital converter chip that combines a 12-bit ADC with an internal clock and a track hold amplifier.
• Output Data Formats: A single, parallel 12-bit word; two 8-bit bytes or serial data.

Applications:DS3800NADA

• Steam Turbines: In power plants, it is used to convert analog signals from sensors monitoring steam pressure, temperature, and flow rate into digital signals. The digital signals are then processed by the control system to precisely adjust the steam turbine's speed, load, and other operating parameters, ensuring efficient and stable power generation1.
• Gas Turbines: For gas turbines in power generation and aircraft engines, the DS3800NADA can convert analog signals from sensors that measure fuel flow, exhaust gas temperature, and compressor inlet pressure. The converted digital signals help the control system optimize the combustion process, improve fuel efficiency, and enhance the reliability and safety of the gas turbine operation.

Industrial Automation

• Process Control: In industrial production processes such as chemical, pharmaceutical, and food processing, it is used to convert analog signals from sensors that monitor temperature, pressure, flow, and level into digital signals. The control system can then perform PID control and other algorithms based on these digital signals to maintain the stability and quality of the production process1.
• Discrete Manufacturing: In the automotive, electronics, and machinery manufacturing industries, the DS3800NADA can be used to convert analog signals from sensors on production equipment, such as the position and speed sensors of robotic arms, the pressure sensors of hydraulic presses, and the temperature sensors of welding equipment. The digital signals are used for precise control and monitoring of the production process to improve production efficiency and product quality.

Programmable Logic Controllers (PLCs)

• Data Acquisition: The DS3800NADA, when integrated with PLCs, can convert analog signals from various field devices into digital signals that can be processed and stored by the PLC. This enables the PLC to collect and analyze data from the production process, providing a basis for process optimization and fault diagnosis.
• Control Output: It can also convert the digital output signals of the PLC into analog signals to control actuators such as motors, valves, and heaters in the field, realizing the closed-loop control of the production process.

Renewable Energy Systems

• Wind Turbines: In wind farms, the DS3800NADA can convert analog signals from anemometers, wind vanes, and other sensors into digital signals. The control system of the wind turbine can then adjust the pitch angle and rotational speed of the blades according to the wind speed and direction to maximize power generation efficiency and ensure the safety of the wind turbine operation.
• Solar Power Plants: For solar power plants, it can convert analog signals from solar irradiance sensors and temperature sensors into digital signals. The control system can then adjust the operating parameters of the inverters and other equipment according to the solar irradiance and temperature to improve the conversion efficiency of solar energy.

Customization:DS3800NADA

• Output Data Format: The board offers a choice of three data output formats, namely a single, parallel 12-bit word, two 8-bit bytes, or serial data. Users can configure the output format according to the specific requirements of the connected microprocessors or digital signal processors.
• Communication Protocol: The DS3800NADA uses fiber optic communication with specific optical wavelengths, power range, and data transfer rate. However, in some cases, if the overall system requires a different communication protocol or interface, additional external conversion modules or custom firmware might be used to adapt the board's communication capabilities.

Physical Modifications

• Mounting and Enclosure: The board has a standard size and mounting holes, but in some applications where space is limited or specific environmental conditions exist, custom enclosures or mounting brackets can be designed to house the DS3800NADA. This can provide better protection against dust, moisture, and electromagnetic interference.
• Connector Customization: The board has specific male and female connectors for communication with other PCBs. In some cases, if the mating connectors in the system are not compatible, custom cable assemblies or connector adapters can be fabricated to ensure proper connection.

Integration with Other Components

• System Compatibility: The DS3800NADA is designed for the Mark IV series of GE's Speedtronic system. However, in some applications where it needs to be integrated with other non-Mark IV components or third-party systems, custom software drivers or middleware might be developed to enable seamless communication and interaction between the DS3800NADA and the other components.
• Redundancy and Backup: In some critical applications, additional redundancy and backup mechanisms can be added at the system level. For example, redundant DS3800NADA boards can be configured in a hot standby mode, and custom control logic can be implemented to switch between the primary and backup boards in case of a failure.
