140DDI84100 | Schneider Electric | Discrete Input Module

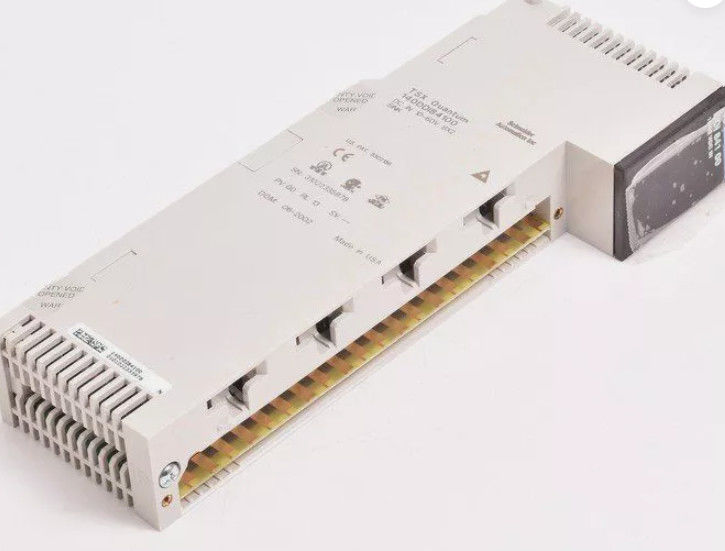

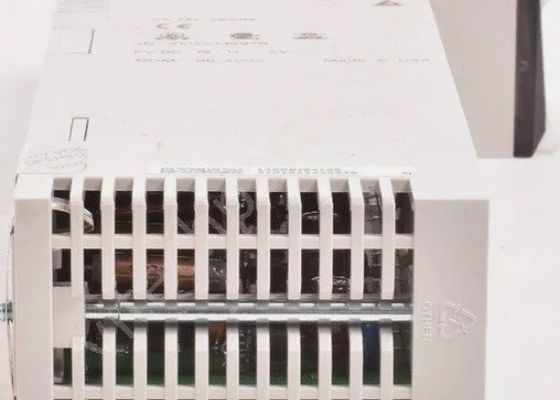

Schneider 140DDI84100 is a DC discrete input module in the Modicon Quantum series. The following is a detailed introduction:
technical parameter
Input points: 16 points
Channel grouping: 8 groups
Logic input: positive logic (current filled type)
Input voltage range: 10V to 60V DC
Corresponding current for each voltage: 1mA to 5mA DC at 60V; 2mA to 15mA DC at 48V; 6mA to 30mA DC at 24V; 5mA to 10mA DC at 12V
Voltage state: In state 1, 12V corresponds to 9V to 12V (± 5%), 60V corresponds to 45V to 60V (± 20%), 48V corresponds to 34V to 48V (± 20%), and 24V corresponds to 11V to 24V (± 20%); When in state 0, 60V corresponds to 0V to 9V (± 20%), 24V corresponds to 0V to 5V (± 20%), 48V corresponds to 0V to 10V (± 20%), and 12V corresponds to 0V to 1.8V (± 5%)
Absolute maximum voltage: 75V
Response time: 4ms from state 1 to state 0 and from state 0 to state 1
Switching frequency: ≤ 100Hz
Isolation feature: 2500Vrms DC between group and bus for 1 minute; 700Vrms DC between groups for 1 minute
Power consumption: 1W+(0.62 x number of conductive points)
Bus current requirement: 200mA
Indicator lights: 16 green LEDs for displaying input status, 1 red LED for indicating external faults, and 1 green LED for displaying bus communication status

Application scenarios
Industrial production line monitoring: In industrial production lines such as automobile manufacturing and electronic product production, various sensors can be connected, such as photoelectric sensors to detect the passage of products, proximity sensors to detect the position of robotic arms, etc. These switch signals are input into the PLC to achieve automated control and monitoring of the production process, ensuring the normal operation of the production line and product quality.
Energy management system: In the energy fields of electricity, petroleum, chemical engineering, etc., it is used to collect status signals of on-site equipment, such as valve opening and closing status, pump operation status, generator fault signals, etc., to provide basic data for the energy management system for energy scheduling and equipment maintenance.
Intelligent building automation: In intelligent buildings, it can be used to monitor the on/off status of doors and windows, the on/off status of lighting systems, the operating status of air conditioning systems, etc., to achieve centralized control and management of building equipment, improve the intelligence level and energy utilization efficiency of buildings.
Water treatment system control: In water treatment plants, various water quality sensors, liquid level sensors, water pumps, and valve control signals can be connected to achieve automated control of the water treatment process, ensuring water quality standards and stable system operation.
