General information

Vendor identification (VendorID) 002AH

Device identifier (DeviceID) 0302H

Supply voltage

24 V DC Yes

permissible range, lower limit (DC) 20.4 V

permissible range, upper limit (DC) 28.8 V

permissible range (ripple included), lower limit (DC) 20.4 V

permissible range (ripple included), upper limit (DC) 28.8 V

External protection for supply cables (recommendation) In a construction with grounded reference potential, a fuse is necessary for redundant interface modules (Recommendation: 2.5 A)

Mains buffering

Mains/voltage failure stored energy time 5 ms Input current Current consumption, max. 600 mA Inrush current, typ. 4 A I²t 0.09 A²·

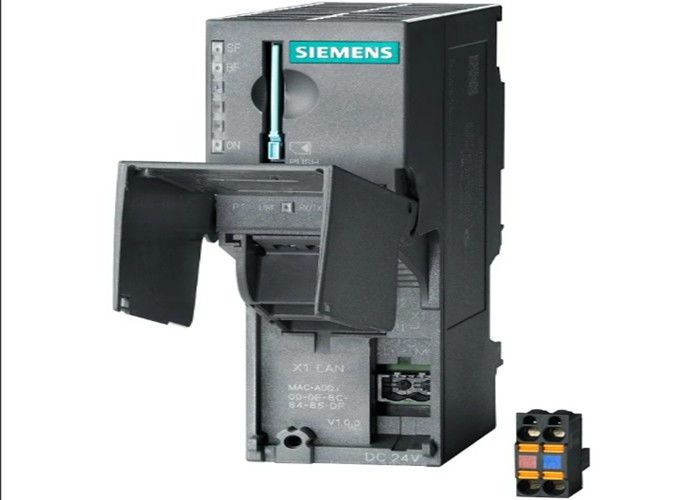

Feature of 6ES7153-4AA01-0XB0

Output current for backplane bus (5 V DC), max. 1.5 A Power losses Power loss, typ. 6 W ; Typical Address area Addressing volume Inputs 192 byte Outputs 192 byte Hardware configuration Number of modules per DP slave interface, max. 12 Communication functions Bus protocol/transmission protocol PN IO Interrupts/diagnostics/status information Diagnostics indication LED Connection to network LINK (green) Yes Transmit/receive RX/TX (yellow) Yes Isolation Isolation checked with 500 V DC Degree and class of protection IP20 Yes Ambient conditions Operating temperature Min. 0 °C max. 60 °C Air pressure Operating altitude above sea level, max. 2000 m Dimensions Width 40 mm Height 125 mm Depth 118 mm Weights Weight, approx. 215 g ; approx.
