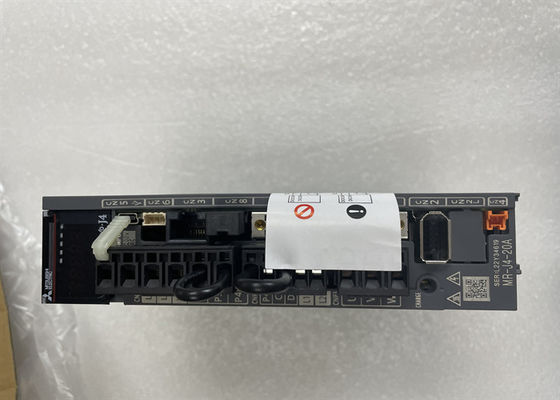

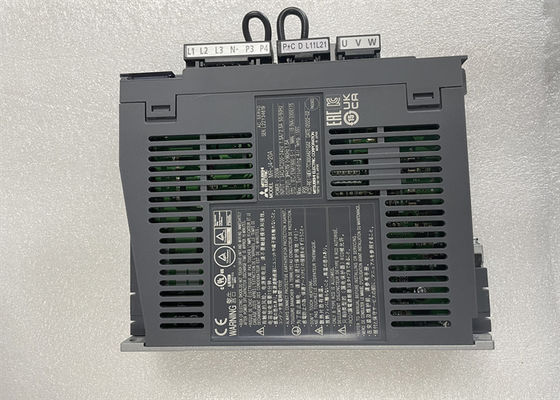

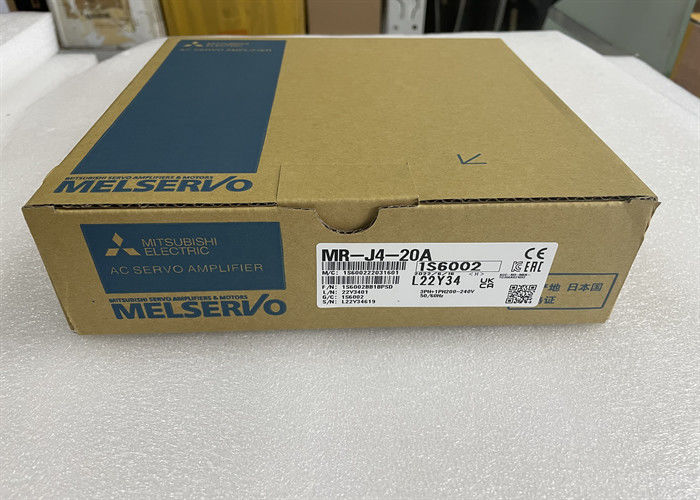

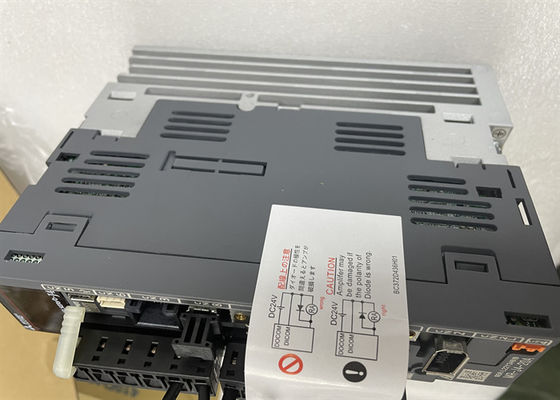

MR-J4-20A 200W Industrial Servo Drive Mitsubishi Mr 3 Phase J4 AC170 V

MR-J4-20A 200W Industrial Servo Drives Mitsubishi 3phase AC170 V

Description of MR-J4-20A

• Manufacturer : Mitsubishi Electric

• Product no : MR-J4-20A

• Series name : MELSERVO-J4 Series 1-Axis Servo Amplifier

• Command interface : General-purpose interface

• Voltage class : 200V

• Motor rated output [KW] : 0.2

• Servo amplifier form name : MR-J4-20A

• Output:-

• Rated voltage : Three-phase AC170 V

• Rated current [A] : 1.5

• Main circuit power input:-

• Voltage and frequency (Note 1) : Three-phase or single-phase AC200 V ~ 240 V, 50 Hz / 60 Hz

• Rated current (Note 14) [A] : 1.5

• Allowable voltage fluctuation : Three-phase or single-phase AC170 V ~ 264 V

• Allowable frequency fluctuation : Within ± 5%

• Control circuit power supply input:-

• Voltage and frequency : Single-phase AC200 V ~ 240 V, 50 Hz / 60 Hz

• Rated current [A] : 0.2

• Allowable voltage fluctuation : Single-phase AC170 V ~ 264 V

Speed control mode

Position control mode

1. Maximum input pulse frequency : 4 Mpulses / s (the time differential receiver), 200 kpulses / s (when open collector)

2. Positioning feedback pulse : Encoder resolution (resolution per rotation servo motor 1): 22-bit

3. Command pulse magnification : Electronic gear A / B double A = 1 ~ 16777215, B = 1 ~ 16777215,1 / 10 <A / B <4000

4. Positioning complete width setting : 0 pulse ~ ± 65535 pulses (command pulse unit)

5. Excessive error : ± 3 rotation

6. Torque limit : Parameter settings or set by external analog input (DC0 V ~ + 10 V / maximum torque)

Warranty

We offer 1 year warranty for this product. If the product is out of working order under proper usage per

instructions manual within the warranty period, please contact us to obtain a merchandise return code and

shipping instruction. Then, send it back at your shipping costs.

After receiving your return item, it will take 7 days for evaluation and investigation. A brand new

replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.

Payment

Credit card on line is available.We also accept payment by T/T and Western Union.
This item have stock,so can delivery to you within 3 business days after your payment cleared.If ther

is any import duties or taxes,it is the buyer's responsibility.
