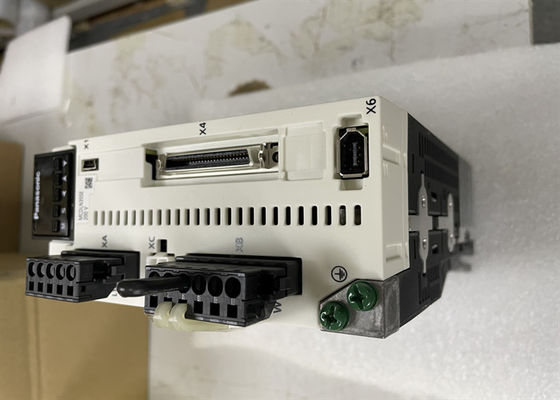

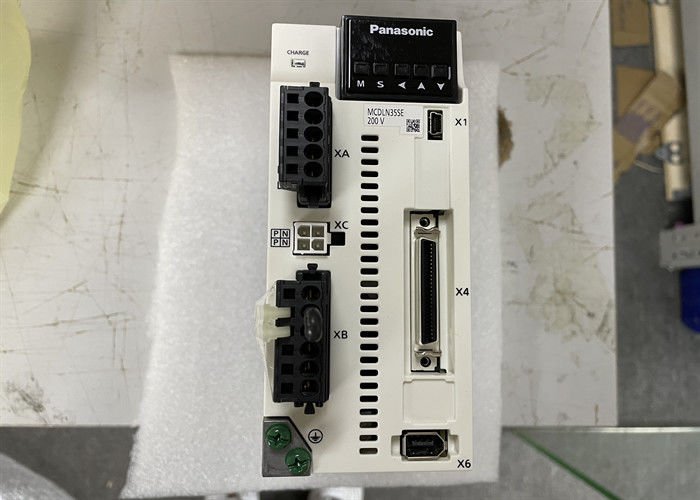

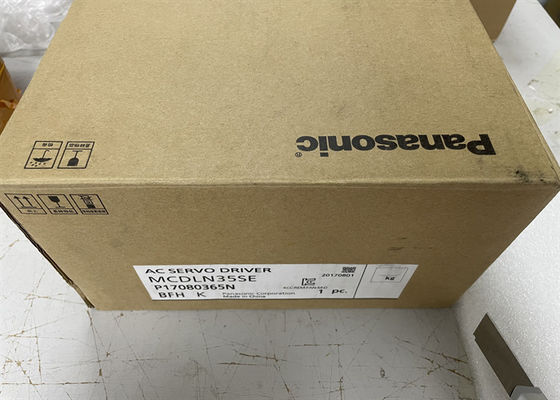

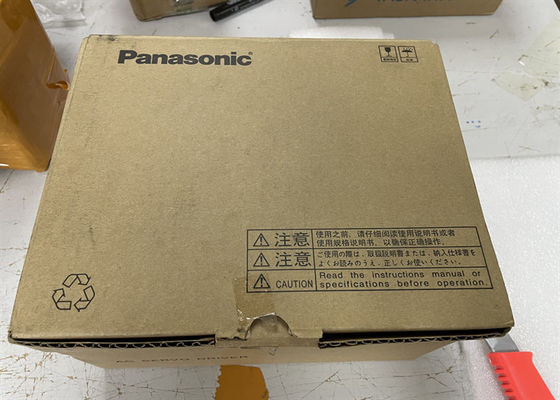

MCDLN35SE Industrial Servo Drives 3 Phase

MCDLN35SE Industrial Servo Drives 3 Phase

  • MCDLN35SE Industrial Servo Drives 3 Phase
  • MCDLN35SE Industrial Servo Drives 3 Phase
  • MCDLN35SE Industrial Servo Drives 3 Phase
  • MCDLN35SE Industrial Servo Drives 3 Phase
MCDLN35SE Industrial Servo Drives 3 Phase
Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Certification: CE
Model Number: MCDLN35SE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: New Original
Delivery Time: 3-5days
Payment Terms: L/C, T/T
Supply Ability: 1000
Contact Now
Detailed Product Description
Brand: Panasonic Product Type: Industrial Servo Drives
Part Number: MCDLN35SE Frequency: 3.2 KHz
Voltage: DC 24 V/48 V・AC 100 V/200 V/400 V, 23 Bit Power: 750W
High Light:

200V Panasonic Industrial Servo Drives

,

Industrial Servo Drives 3 phase

,

MCDLN35SE

MCDLN35SE Industrial Servo Drives 3phase 200 V 750W Panasonic





Description of Industrial Servo Drives MCDLN35SE





Manufacturer : Panasonic

Product no. : MCDLN35SE

Product type : Servo Driver

Operating temperature : 0°C ~ 55°C

Mounting type : Chassis

Type : Module

Interface : RS-232, RS-485, USB

Voltage supply : 200VAC

Current output : 22A

Voltage load : 200 V

Motor type : ServoControl / Drive

Type : Servo AC

Number of motors : 1Wattage

Load : 750W





Spec Detail of MCDLN35SE Industrial Servo Drives



Item Specifications
Part Number MCDLN35SE
Details A6SE series
Position control type (Incremental system only, Pulse train only)
without the safety function
Family Name MINAS A6
Series A6SE series
Type Position control type
Frame C-Frame
Frequency response (kHz) 3.2
Control method Position control
About control method A6SE series driver (Position control only) does not correspond to the absolute system of using the serial communication with the host device. It supports incremental system only.
Safety Function without
Supply voltage Single/3-phase 200 V
I/F Classification of type Pulse train only
Dimensions (W) (Unit: mm) 65
Dimensions (H) (Unit: mm) 150
Dimensions (D) (Unit: mm) 170
Mass (kg) 1.6
Environment For more details, please refer to the instruction manual.





Basic Specifications



Item Specifications
Input power: Main circuit Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Input power: Control circuit Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder feedback 23-bit (8388608 resolution) absolute encoder, 7-wire serial
About Encoder feedback * Since it can be used only as an incremental system, do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to "1" (factory settings).
Parallel I/O connector:
Control signal Input
General purpose 10 inputs
The function of general-purpose input is selected by parameters.
Parallel I/O connector:
Control signal Output
General purpose 6 output
The function of general-purpose output is selected by parameters.
Parallel I/O connector:
Analog signal Output
2 outputs (Analog monitor: 2 output)
Parallel I/O connector:
Pulse signal Input
2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O connector:
Pulse signal Output
4 outputs (Line driver: 3 output, open collector: 1 output)
Communication function USB
Communication function: USB USB interface to connect to computers for parameter setting or status monitoring.
Regeneration Built-in regenerative resistor (external resistor is also enabled.)
Control mode Switching among the following 3 mode is enabled,
(1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command







Warranty



We offer 1 year warranty for this product. If the product is out of working order under proper usage per

instructions manual within the warranty period, please contact us to obtain a merchandise return code and

shipping instruction. Then, send it back at your shipping costs.

After receiving your return item, it will take 7 days for evaluation and investigation. A brand new

replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.





Payment



Credit card on line is available.We also accept payment by T/T and Western Union.
This item have stock,so can delivery to you within 3 business days after your payment cleared.If ther

is any import duties or taxes,it is the buyer's responsibility.
