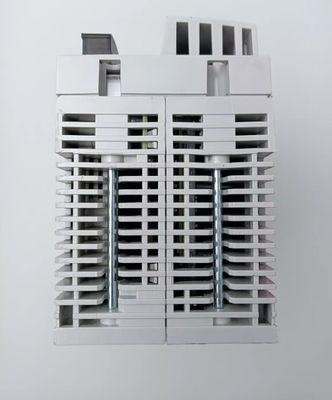

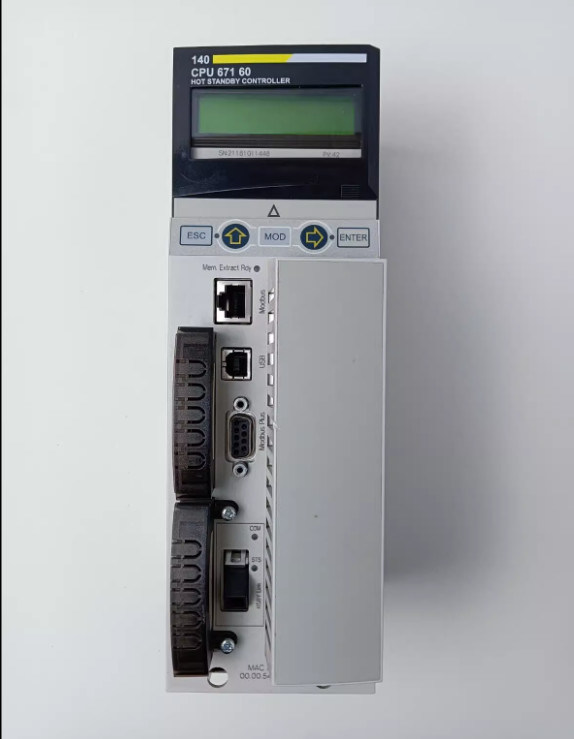

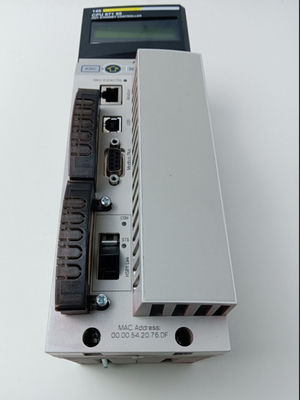

Multi Mode Modicon Tsx Quantum Unity Processor 140CPU67160 Plc Modicon Quantum 266MHz

Multi Mode Modicon Tsx Quantum Unity Processor 140CPU67160 Plc Modicon Quantum 266MHz

  • Multi Mode Modicon Tsx Quantum Unity Processor 140CPU67160 Plc Modicon Quantum 266MHz
  • Multi Mode Modicon Tsx Quantum Unity Processor 140CPU67160 Plc Modicon Quantum 266MHz
  • Multi Mode Modicon Tsx Quantum Unity Processor 140CPU67160 Plc Modicon Quantum 266MHz
Multi Mode Modicon Tsx Quantum Unity Processor 140CPU67160 Plc Modicon Quantum 266MHz
Product Details:
Place of Origin: France
Brand Name: Schneider
Certification: CE
Model Number: 140CPU67160
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3days
Contact Now
Detailed Product Description
PN: 140CPU67160 Brand: Schneider
Schneider: 266 Lead Time: 3days
Warranty: 1 Year
High Light:

Multi Mode modicon tsx quantum

,

modicon tsx quantum 140CPU67160

,

plc modicon quantum 266MHz

Multi Mode Modicon Quantum PLC Unity Processor 140CPU67160 266 MHz Frequency







Quick details:





  • SCHNEIDER ELECTRIC
  • MODICON
  • 140-CPU-671-60
  • 140CPU67160
  • CPU MODULE QUANTUM PROCESSOR HSBY 2048/7168K
  • AVAILABLE
  • New one with one year warranty and used one with six months









More Info on the 140CPU67160:





Unity Hot Standby Processor With Multimode Ethernet - 1024 Kb - 266 Mhz

Quantum | 140CPU67160 | Modicon | 140 CPU 671 60 | Processor HSBY UNITY 2048/7168K

Quantum programmable controllers have been developed to comply with the main national and international standards in respect of the electronic equipment used in process automation.















Specifications:







Manufacturer: Modicon Quantum
Series: Quantum CPUs
Weight: 2 lb
Product or component: Unity processor
Mode of transmission: Multimode
Clock frequency: 266 MHz
Number of slots: 10
  16
  2
  4
  6
Number of racks: 2 - local rack(s)
Number of distributed I/O station: 63 station(s) - 1 rack(s) - 3 distributed network(s)
Number of remote I/O station: 31 - 2 remote rack(s)
Discrete I/O number: 8000 inputs, 8000 outputs - distributed - per network
  31744 inputs, 31744 outputs - remote
  Unlimited (26 slots max) - local - forbidden in Hot Standby application
Analogue I/O number: Unlimited (26 slots max) - local - forbidden in Hot Standby application
  500 inputs, 500 outputs - distributed - per network
  1984 inputs,1984 outputs - remote
Application specific I/O: Accurate time stamping
  Counter
  High-speed interrupt inputs
  Serial link
Number of optional modules: 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections: Unlimited (AS-Interface) - local
  6 (Profibus DP) - local
  6 (Modbus Plus) - local
  6 (Ethernet TCP/IP) - local
  4 (AS-Interface) - remote
  2 (AS-Interface) - distributed
  1 (USB)
  1 (Modbus) - RS232/485 Modbus/ASCII
Integrated connection type: 1 Ethernet TCP/IP
  1 Modbus
  1 Modbus Plus
  1 USB
Checks: Hot standby
  Process control
Memory description: Internal RAM 1024 kB - 512 kB for data
  Expandable 8 MB - file storage with PCMCIA card
  Expandable 7168 kB - program with PCMCIA card
Switch function: Key switch memory port on/off
Application structure: 4 auxiliary tasks - forbidden in Hot Standby application
  32 timer interrupt tasks - forbidden in Hot Standby application
  128 interrupt tasks - forbidden in Hot Standby application
  128 I/O interrupt tasks - forbidden in Hot Standby application
  1 periodic fast task - forbidden in Hot Standby application
  1 cyclic/periodic master task
Execution time per instruction: 0.4...0.5 µs floating points
  0.0525...0.075 µs Boolean
  0.045...0.06 µs on word
  0.045...0.06 µs on fixed-point arithmetic
Execution time for 1 K instruction: 10.28 100 % Boolean
  10.07 65 % Boolean and 35 % numerical
System overhead: 1 ms - master task
  0.2 ms - fast task
Bus current requirement: 2500 mA
Local signalling: 1 LED red for Ethernet collision
  1 LED green for Ethernet activity (COM)
Electrical connection: 1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 Km
  1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
  1 connector, connector type: RJ45 for connecting Modbus bus
  1 connector, connector type: RJ45 for connecting Ethernet network









ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.

Multi Mode Modicon Tsx Quantum Unity Processor 140CPU67160 Plc Modicon Quantum 266MHz 0









1 Primary ring, copper/fiber optic medium

2 Ethernet DIO secondary ring, copper medium only

3 Ethernet head adaptor 140CRP31200 installed in the Quantum™ rack.

4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)

5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)

6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)

7 Modicon™ STB Ethernet DIO (3) (4)

8 Connection to Ethernet DIO device cloud, copper medium only

9 Ethernet DIO device cloud (3)

10 Ethernet communication module 140NOE771

11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
