Place of Origin: | Germany |
Brand Name: | Siemens |
Certification: | CE |
Model Number: | 6GK5646-2GS00-2AC2 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Contact us |
Packaging Details: | New Original Box |
Delivery Time: | 3-5days |
Payment Terms: | T/T |
Supply Ability: | 50 |
Model: | 6GK5646-2GS00-2AC2 | Brand: | Siemens |
---|---|---|---|
Country Of Origin: | Gemany | Warranty: | 1 Year |
Product Or Component Type: | Processor | Type: | SCALANCE S Industrial Security Appliances |
Highlight: | Siemens digital output module,R320 digital output module,6GK5646-2GS00-2AC2 |

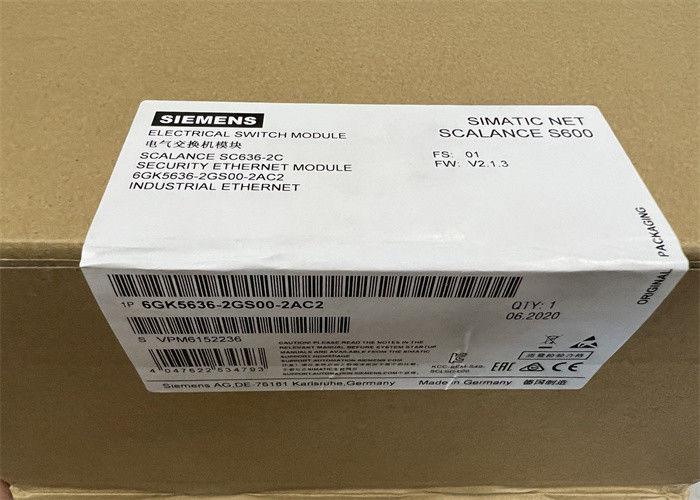

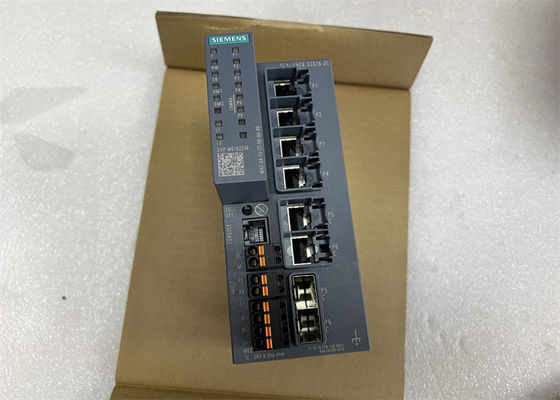

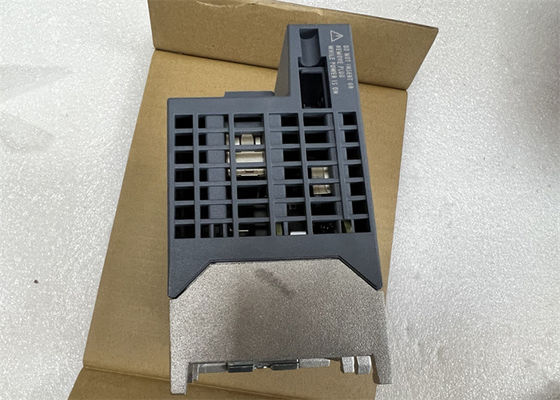

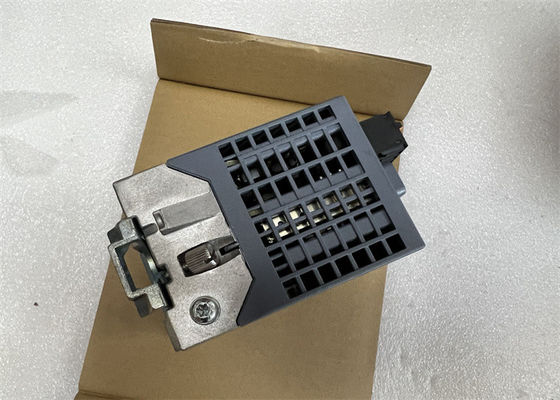

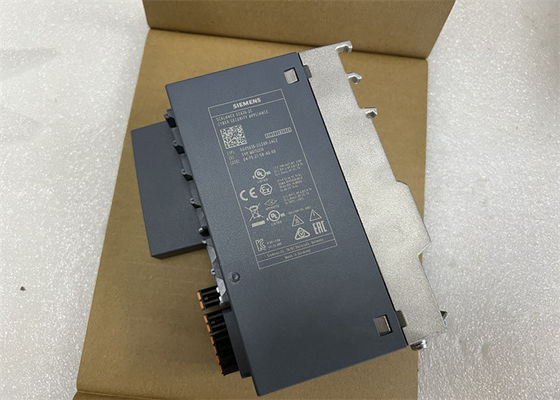

Siemens 6GK5646-2GS00-2AC2 SCALANCE SC646-2C Industrial Security Appliance
Product information
Product | |
Article Number (Market Facing Number) | 6GK5636-2GS00-2AC2 |
Product Description | SCALANCE SC636-2C Industrial Security Appliance; For protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall; Further functions: address conversion (NAT/NAPT); Connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbit/s RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbit/s RJ45 or 100 Mbit/s SFP or 1000 Mbit/s SFP. |
Product family | SCALANCE S Industrial Security Appliances |
Product Lifecycle (PLM) | PM300:Active Product |
Additional Product Information | |||
EAN | 4047622534793 | ||
UPC | 804766529641 | ||
Commodity Code | 85176200 | ||
LKZ_FDB/ CatalogID | IK | ||
Product Group | 2433 | ||
Group Code | R320 | ||
Country of origin | Germany | ||
Compliance with the substance restrictions according to RoHS directive | Since: 06.11.2017 | ||
Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||
WEEE (2012/19/EU) Take-Back Obligation | Yes | ||
REACH Art. 33 Duty to inform according to the current list of candidates |
|
Signal inputs/outputs
Number of electrical connections ● for digital input signals |
1 |
Type of electrical connection ● for digital input signals |
2-pole terminal block |
Operating voltage / of the signaling contacts / at DC / Rated value | 24 V |
Operating current / of the signaling contacts / at DC / maximum | 0.1 A |
Supply voltage, current consumption, power loss
Supply voltage / external | 24 V |
Supply voltage / external | 9.6 ... 31.2 V |
Type of voltage / of the supply voltage | DC |
Consumed current / maximum | 0.4 A |
Power loss [W] ● at DC / at 24 V / typical 9.6 W ● Note |
9.6 W (with plugged-in SFPs) |
Design, dimensions and weights
Design | compact |
Width | 60 mm |
Height | 145 mm |
Depth | 125 mm |
Net weight | 0.58 kg |
Mounting type | Fixing bolt with additional screw protection |
Mounting type ● 35 mm DIN rail mounting ● S7-300 rail mounting ● S7-1500 rail mounting ● wall mounting |
Yes |
