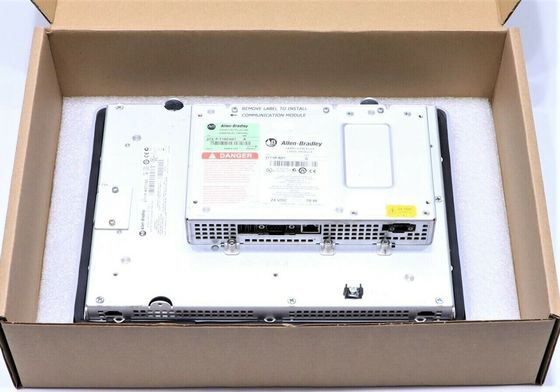

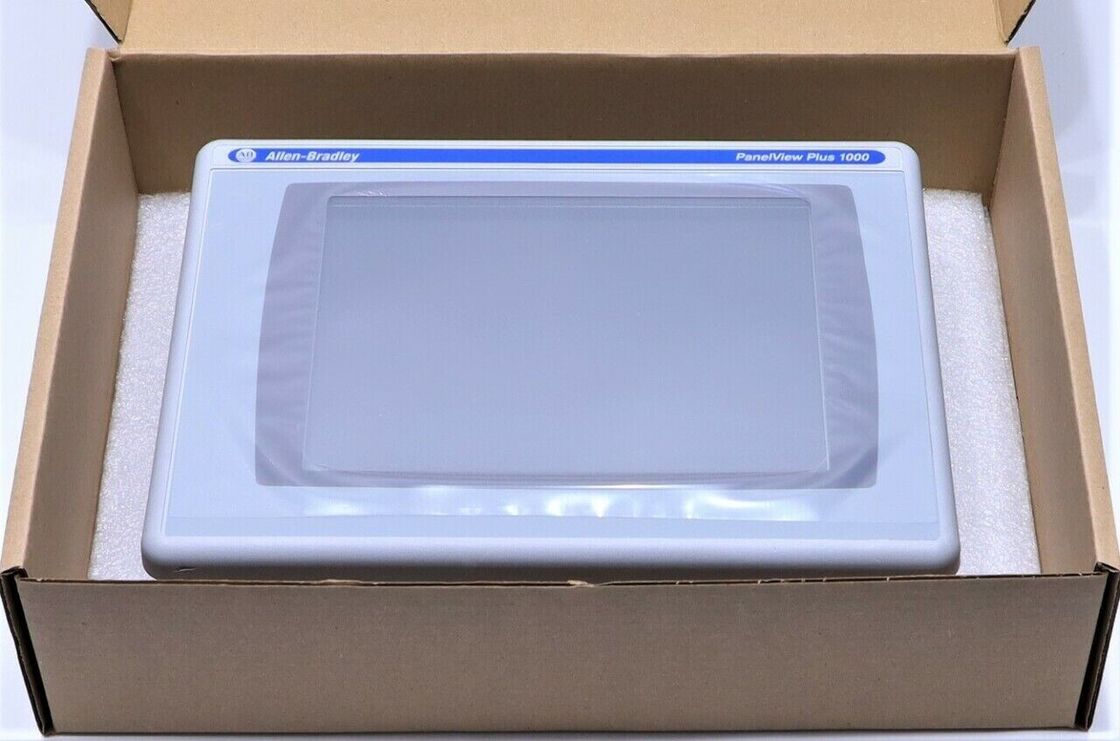

Allen Bradley Hmi Touch Panel Screen 2711P-B10C4D8 Panelview 6 Plus

Allen Bradley Hmi Touch Panel Screen 2711P-B10C4D8 Panelview 6 Plus

  • Allen Bradley Hmi Touch Panel Screen 2711P-B10C4D8 Panelview 6 Plus
  • Allen Bradley Hmi Touch Panel Screen 2711P-B10C4D8 Panelview 6 Plus
Allen Bradley Hmi Touch Panel Screen 2711P-B10C4D8 Panelview 6 Plus
Product Details:
Place of Origin: USA
Brand Name: Allen Bradley
Model Number: 2711P-B10C4D8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: in box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,payoneer
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: HMI Touch Screen 2711P-B10C4D8 Product: HMI Touch Screen
Model NO.: 2711P-B10C4D8 Series: Panelview 6 Plus
Terminal Type: Color Voltage: 18-32VDC
Brand :: Allen Bradley Place Of Origin: USA
Highlight:

Allen Bradley hmi touch panel

,

hmi touch panel Panelview 6 Plus

,

allen bradley touch screen

HMI Touch Screen 2711B5A20 SER H FRN 4.46 AB Touch Screen PanelView 550





SPECIFITIONS Of HMI Touch Screen 2711P-B10C4D8

Brand AB
Internal memory: 512MB Flash Memory / 512 MB Random Access Memory
Touch: Analog Resistive
Keypad function keys: F1 to F16, K1 to K16; 0…9, Special Characters, Backspace, Enter, Left and Right Tab, keys, Shift keys
Keypad: 1 million presses
Resolution: 640 x 400
Display Area: 210 x 131 mm (8.27 x 5.17 in.)
Lifecycle status: End of life
Display Type: Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Operator Input: Keypad / Touch
Product Type: PanelView Plus 6 1000 Operator Terminals
Product Family: PanelView Plus 6 Operator Terminals
Manufacturer: Rockwell Automation
Integrated ports: Ethernet, RS-232, ControlNet, 1 USB host
Display Size 10.4 inches
Backlight 100,000 hr LED backlight life
Input Voltage range: 18-32VDC
Part Number/Catalog No. 2711P-B10C4D8
Product Line Panelview 6 Plus
Display Color Color
Input Type Keypad/Touchscreen
Communication Ethernet and RS-232
Input Power 18-32 VDC
Memory 512 MB RAM
Communication Cable 2711-NC14
Shipping Weight 8 lbs.
Shipping Dimensions 16 x 14 x 8 in
Series Series A and Series B
UPC 10612598876706



HMI Touch Screen 2711B5A20 SIMILAR PRODUCTS

2711P-T6C3 2711P-T6C5A 2711P-T6C5D
2711P-T6C8A 2711P-T6C8D 2711P-T6M1A
2711P-T6M1D 2711P-T6M20A 2711P-T6M20D
2711P-T6M3A 2711P-T6M3D 2711P-T6M5A
2711P-T6M5D 2711P-T6M8A 2711P-T6M8D
2711P-B7C15A1 2711P-B7C15A2 2711P-B7C15B1
2711P-B7C15B2 2711P-B7C15D1 2711P-B7C15D2
2711P-B7C4A1 2711P-B7C4A2 2711P-B7C4B1
2711P-B7C4B2 2711P-B7C4D1 2711P-B7C4D2
2711P-B7C6A1 2711P-B7C6A2 2711P-B7C6B1






About HMI Touch Screen 2711P-B10C4D8

The PanelView Plus 6 1000 operator terminal with catalog number 2711P-B10C4D8 is an operator terminal with enhanced capabilities. It comes with a 10.4-inch colored display screen, dual input interface and variety of communication interfaces. This electronic device is also called a Human Machine Interface device (HMI) used to provide real-time view and control of the control system.



The 2711P-B10C4D8 comes with an Ethernet communication port for exchanging data with Programmable Logic Controllers (PLC), Programmable Automation Controllers (PAC), gateways, converters and 3rd party devices. Ethernet protocol allows this device to connect a network of Ethernet I/P enabled devices. Similarly, the embedded RS232 serial interface may be used in peer-to-peer connection via DF1 protocol. This interface is designed for short distance communication, ideally not more than 15 meters. The USB ports may be used to connect USB compatible mouse, keyboard even storage devices.This operator terminal may be operated through the embedded keypad assembly which is composed of function, numeric and navigation keys. Alternatively, operator may also control the system via the analog resistive touch screen interface. Both these interface are designedto operate up to 1 million actuations.



The 2711P-B10C4D8 comes with a Random Access Memory (RAM) amounting to 512MB and non-volatile memory of 512MB as well. Application files, logs, user manuals and other files may be stored in the non-volatile memory. This operator terminal is powered by supplying with an external voltage supply of 18-32VDC.



The 2711P-B10C4D8 terminal has a 10.4-inch active-matrix TFT display which has an analog touchscreen and a stainless-steel keypad for input. The keypad contains numeric, navigation, and function keys. The resolution is 640 x 480 with 18-bit color graphics. The 2711P-B10C4D8 has 512 MB each of RAM and nonvolatile memory for user data storage. It weighs 8 lbs. and has dimensions of 16 x 14 x 8 inches. It requires an input voltage of 18 - 32V DC (24V DC nominal) with 70 W of maximum power consumption. The 2711P-B10C4D8 uses Ethernet and RS-232 serial ports and it has optional DH+, DH-485, and ControlNet modules for further communication. It contains 2 USB ports for connecting external devices like mice, keyboards, printers, and flash drives.Additional features include a secure digital card for data backup and a battery-backed real-time clock for timestamping critical data. The 2711P-B10C4D8 is superior to its predecessors in the areas of speed, transition rate, system memory, storage space, and backlight illumination.
