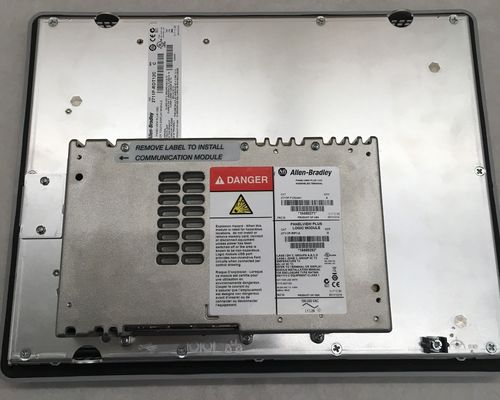

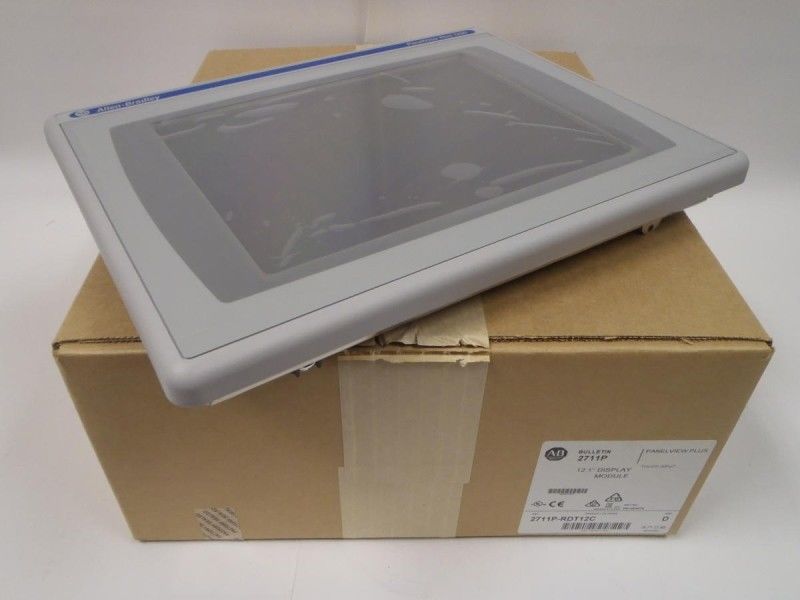

2711P-RDT12C Allen Bradley HMI Touch Screen PanelView 700 Terminals To 1500 Terminal

2711P-RDT12C Allen Bradley HMI Touch Screen PanelView 700 Terminals To 1500 Terminal

  • 2711P-RDT12C Allen Bradley HMI Touch Screen PanelView 700 Terminals To 1500 Terminal
  • 2711P-RDT12C Allen Bradley HMI Touch Screen PanelView 700 Terminals To 1500 Terminal
  • 2711P-RDT12C Allen Bradley HMI Touch Screen PanelView 700 Terminals To 1500 Terminal
2711P-RDT12C Allen Bradley HMI Touch Screen PanelView 700 Terminals To 1500 Terminal
Product Details:
Place of Origin: USA
Brand Name: Allen Bradley
Model Number: 2711P-RDT12C
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: in box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,payoneer
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: HMI Touch Screen 2711P-RDT12C Product: HMI Touch Screen
Model NO.: 2711P-RDT12C Series: PanelView Plus 700 To 1500 Terminals
Terminal Type: Color Operating Temperature: 0 °C
Brand :: Allen Bradley Place Of Origin: USA
High Light:

Allen Bradley HMI Touch Screen


HMI Touch Screen 700 terminals



HMI Touch Screen 2711P-RDT12C Allen Bradley PanelView Plus 700 to 1500 terminals




Number of pixels, vertical 600
Number of pixels, horizontal 800
Display size 12.1 inch
Luminance 300 cd/m2 (Nits)
Input voltage 85...264V AC
Backlight CCFL, 50000 hours life, minimum
Operator input Touch
Power consumption 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC)
Line frequency 47 Hz
Operating force, touch screen 10 g
Remote power input voltage 85...264V AC
Remote power consumption 120VA maximum
External CompactFlash storage 512 MB maximum
PCI slot available power supply, max 11 W DC, 5 W AC
Touch screen Analog resistive
Actuation rating, touch screen 1 million presses
LED indicators COMM (Green), fault (Red)
Battery life 4 year minimum at 25 °C (77 °F)
Keypad function keys Function keys, numeric and navigation
Clock Battery-backed, +/-2 minutes per month
Application flash memory 20 MB for logic modules, series A to D
Display type Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Operating temperature 0 °C
Nonoperating temperature -25 °C
Shock Operating: 15 G at 11 ms
Degree of protection (IP) IP65
Altitude, operating 2000 m
List of degrees of protection (IP) IP54, IP65
Heat dissipation 240 BTU/hr
Relative humidity 5...95% without condensation
Enclosure rating NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65
Vibration 10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration
Display area 246 x 184 mm
Description 1250 touch color display
Selection Guide VIEW-SG001




2711P-T6C3 2711P-T6C5A 2711P-T6C5D
2711P-T6C8A 2711P-T6C8D 2711P-T6M1A
2711P-T6M1D 2711P-T6M20A 2711P-T6M20D
2711P-T6M3A 2711P-T6M3D 2711P-T6M5A
2711P-T6M5D 2711P-T6M8A 2711P-T6M8D
2711P-B7C15A1 2711P-B7C15A2 2711P-B7C15B1
2711P-B7C15B2 2711P-B7C15D1 2711P-B7C15D2
2711P-B7C4A1 2711P-B7C4A2 2711P-B7C4B1
2711P-B7C4B2 2711P-B7C4D1 2711P-B7C4D2
2711P-B7C6A1 2711P-B7C6A2 2711P-B7C6B1


About HMI Touch Screen 2711P-RDT12C

The AB 2711P-RDT12C is a replacement unit for the pre-installed display module of PanelView Plus and PanelView Plus 6 1250 Touch operated terminals. Not only that it provides colored graphic display, but this component also comes with an embedded 8-wire analog resistive touch interface with an actuation lifespan of up to 1 million presses at 10-110 g of actuation force.

The 2711P-RDT12C has a display screen that measures 12.1-inches. It is capable of displaying colored static displays and animations. This display module has a resolution of 800 x 600 pixels and effective display area of 246 x 184 mm (9.69 x 7.25 in).

The main function of the 2711P-RDT12C display module is to provide the visualization and input capability to the system. The operator monitors through this module and enters control commands and modification by interacting directly to the touch sensitive screen.

To maximize the operation lifespan of the 2711P-RDT12C display module, maintain the unit by wiping off any contaminant build-up on the surface. Use a soft cloth that is slightly wetted with water and mild soap mixture or isopropyl alcohol. Wipe the contaminants slightly. Additionally, use a gloved finger when operating and interacting with the display module. If glove is not available, actuate the terminal using a finger free of contaminants.

Install this module when the process is not operational. Ideally, remove supply power when installing this display module. This way, unwanted actuation caused by handling of the unit will not cause unintended operation or machine behavior. Do not place this display module on uneven surfaces and ungrounded areas.




NTPL01 PLC Programmable Logic Controlle TERMINATION UNIT no longer availabl 0

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
ABB Module AB Module 1756-,1759- Tourch Screen 2711-
Mitsubishi Drive MR- , Motor HA -,HC Emerson MoudlesVE- ,KJ -
Fanuc motor A0-, Drive Yokogawa transmitter EJA-
Rosemount Transmitter 3051- Schneider Module 140-
Panasonic Motor , Drive MH- Siemens Module 6ES-, Touch Screen 6AV-


Frequenty Asked Questions of HMI Touch Screen 2711P-RDT12C
What makes Industrial Trading the best source for the HMI Touch Screen 2711P-RDT12C ?

Industrial Trading is a service of WTL , an ISO 9001:2015-certified company that specializes in selling parts that are obsolete or hard to find. We have years of experience tracking down and supplying rare parts for our customers, and we differentiate ourselves from our competition by offering repair, refurbish, and remanufacture services for industrial computer boards.

Is the HMI Touch Screen 2711P-RDT12C   rare?
Some of the parts on WTL can be very difficult to find. Many are no longer in production and have reached end-of-life status. Once your quote request has been received, WTLwill begin the process of locating for the 2711P-RDT12C . The pricing will be better if no one stirs up the market.

What does "stirring up the market" mean, and why should it be avoided?
Stirring up the market is what happens when many different suppliers are all contacted regarding the same part. It makes other suppliers believe the part is in much higher demand than it might actually be, resulting in raised prices and lower availability. In order to prevent this costly outcome,WTL highly recommends limiting the number of potential suppliers you reach out to for rare parts.

What happens after I receive the quote for HMI Touch Screen 2711P-RDT12C?
Review the quote to make sure it meets your needs. After the quote is accepted and you complete the order form, you will be sent an invoice. It is important that you remit payment immediately after receiving your invoice as any delay could result in the 2711P-RDT12C being sold to another customer.

What forms of payment are accepted?
We accept all major credit cards (Visa, MasterCard, American Express, and Discover). We also accept wire transfers and PayPal. Checks will only be accepted from customers in the USA. For large orders from repeat customers, terms may be granted pending qualification.

How will HMI Touch Screen 2711P-RDT12C  shipped to me?
We generally ship via FedEx, UPS, DHL, and USPS, and we are more than happy to use your preferred carrier or account. We do ship to international (non-USA) customers, as well.

What is the estimated lead time for PLC Programmable Logic Controller 2711P-RDT12C ?
The primary factor in lead time for the 2711P-RDT12C    is availability. If we do not currently have the 2711P-RDT12C   in our inventory, we will check with our trusted suppliers for stock. Services such as repair or refurbishment could affect lead time, as well.
