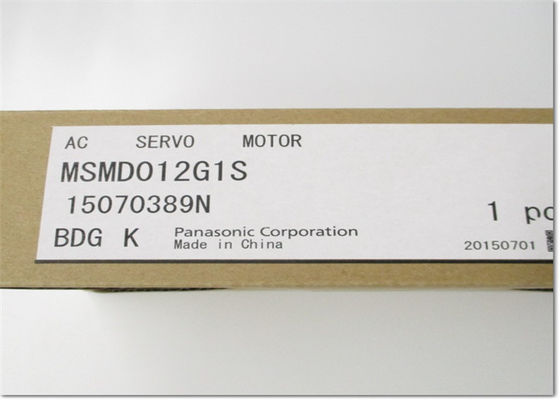

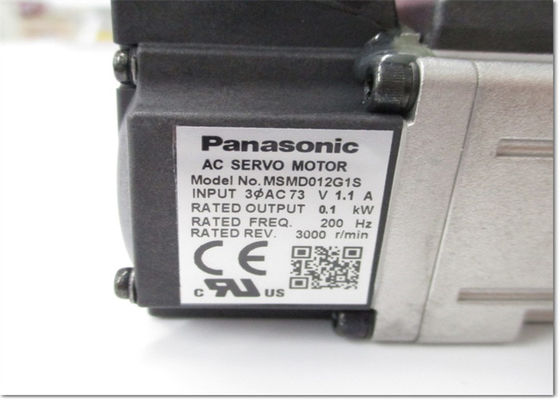

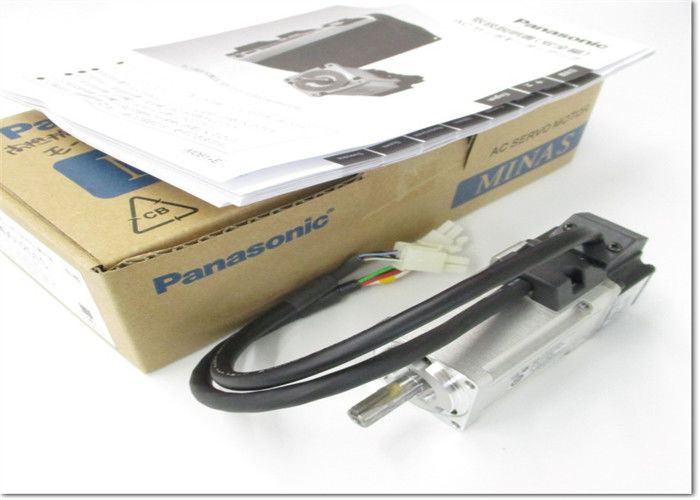

MSMD012G1S 3000 RPM Industrial Servo Motor Panasonic MINAS A5 Family

MSMD012G1S 3000 RPM Industrial Servo Motor Panasonic MINAS A5 Family

  • MSMD012G1S 3000 RPM Industrial Servo Motor Panasonic MINAS A5 Family
  • MSMD012G1S 3000 RPM Industrial Servo Motor Panasonic MINAS A5 Family
  • MSMD012G1S 3000 RPM Industrial Servo Motor Panasonic MINAS A5 Family
MSMD012G1S 3000 RPM Industrial Servo Motor Panasonic MINAS A5 Family
Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Certification: CE
Model Number: MSMD012G1S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: New Original
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 1000
Contact Now
Detailed Product Description
Brand: Panasonic Type: Industrial Servo Motor
Part Number: MSMD012G1S Frequency Response: 2.3 KHz
Series: MINAS A5 Family Voltage: DC 24 V/48 V
High Light:

3000RPM Industrial Servo Motor

,

Industrial Servo Motor Panasonic

,

MSMD012G1S

MSMD012G1S 3000 RPM Industrial Servo Motor Panasonic MINAS A5 Family









Spec Detail Industrial Servo Motor of MSMD012G1S





Motor, A5/A4 Servo, 100W, 20 Bit Incremental Encoder, 200V

Motor Type:MSMD012G1S

Voltage - Rated:200VAC

RPM:3000 RPM

Torque - Rated (oz-in / mNm):45.32 / 320

Power - Rated:100W





Type
AC Motor
Function
Servomotor
Motor Type
MSMD012G1S
Voltage - Rated
200VAC
RPM
3000 RPM
Torque - Rated (oz-in / mNm)
45.32 / 320
Power - Rated
100W
Encoder Type
Incremental
Size / Dimension
Square - 5.118" x 5.118" (130.00mm x 130.00mm)
Diameter - Shaft
0.945" (24.00mm)
Length - Shaft and Bearing
2.559" (65.00mm)
Mounting Hole Spacing
5.709" (145.00mm)
Termination Style
Wire Leads
Features
Key
Gear Reduction Ratio
-
Torque - Max Momentary (oz-in / mNm)
134.5 / 950
Operating Temperature
0°C ~ 40°C
Approval Agency
CE, CSA, cULus, TUV, UL
Weight
1 lb (453.59 g)







Specifications of MSMD012G1S Industrial Servo Motor



Item Specifications
Part Number MSMD012G1S
Details Low inertia, Lead wire type, IP65
Family Name MINAS A5
Series MSMD Series
Type Low inertia
Protection class IP65
About Enclosure Except rotating portion of output shaft and leadwire end.
Environmental Conditions For more details, please refer to the instruction manual.
Flange sq. dimension 38 mm sq.
Flange sq. dimension (Unit:mm) 38
Motor lead-out configuration Lead wire
Motor encoder connector Lead wire
Power supply capacity (kVA) 0.5
Voltage specifications (V) 200
Rated output (W) 100
Rated current (A (rms)) 1.1
Holding brake without
Mass (kg) 0.47
Oil seal without
Shaft Key-way, center tap
Rated torque (N ⋅ m) 0.32
Momentary Max. peak torque (N ⋅ m) 0.95
Max. current (A (o-p)) 4.7
Regenerative brake frequency (times/min) Without option :No limit
With option :No limit
Option (External regenerative resistor) Part No. : DV0P4281
About regenerative brake frequency Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min) 3000
Rated rotational Max. speed (r/min) 5000
Moment of inertia of rotor ( x10-4 kg ⋅ m²) 0.051
Recommended moment of inertia ratio of the load and the rotor 30 times or less







MSMD012G1S 3000 RPM Industrial Servo Motor Panasonic MINAS A5 Family 0







The following are some of the drive models, both new and used are stocked:


MSDA3A3A1A MSDA5A3A1A MSDA013A1A
MSDA023A1A MSDA043A1A MSDA083A1A
MDDA103A1A MDDA153A1A MDDA203A1A
MDDA253A1A MDDA303A1A MDDA353A1A
MSDA403A1A MSDA503A1A MSD023A1XXV
MSDA083A1XXV MSD043A1X MSDA043D1A
MQDA043A1A MUDS043A1A MUDS023A1A
MUDS083A1A MUMS082A1E0S MUDS083A1M
MUMA012P1T MUMA022P1T MUMA042P1T
MUMA042P1S MUMA012P1S MUMA022P1S
MUMS082P1S MSDA043A1XXV MSDA013A1XXV
MKDET1505P MLDET2310P MUMA082P1T
MLDET2510P MKDET1310P MUMS042A1AOS
MSM041A211 MQMA042A1E MSMA022P1A
MSM042P1B MSM042AJB MSM011P1N
MQMA022S2P MSM012AJA MSM012P1F
MDMA152S1C MSM042AJA MQMA012C2P
MSMA022A1B MSM021DJE MSD043A1X
MSD043A1XX MSM042A1A MSM5AZA1B
MUMS012C2U1S MUMS012A1F0S MSMZ082A1B
MSD013A1XX MSM012A1A MSMA012C1A
MSDA013D1A MSMA5AZS1A MQMA012P1B
MSMD042P1T MUMS022A1B0S MFM082A1C
MQMA042A1E MSMA022C1A MSMA022C1E
