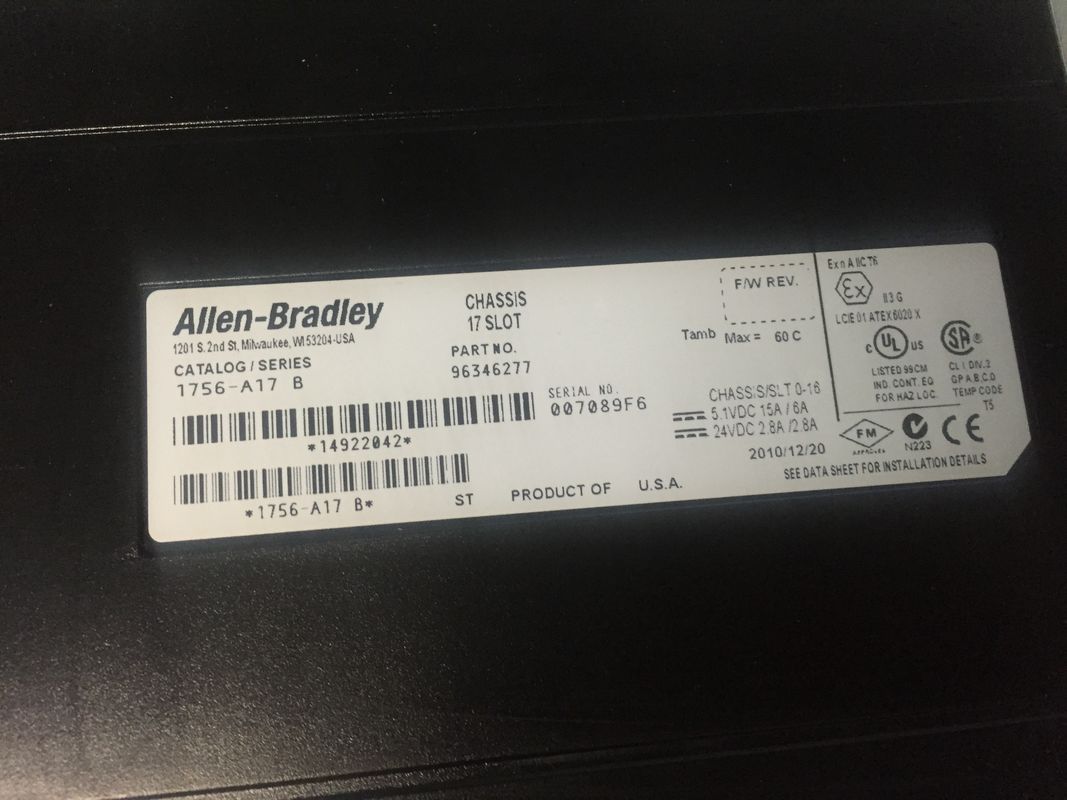

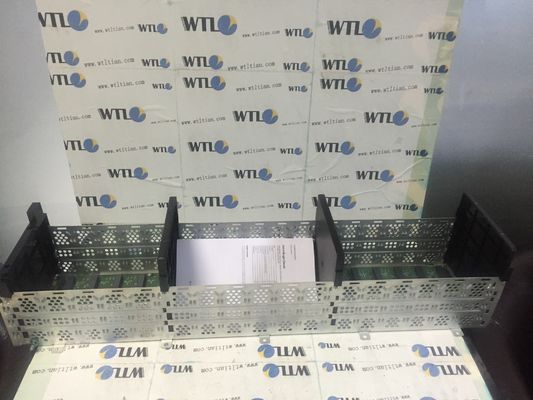

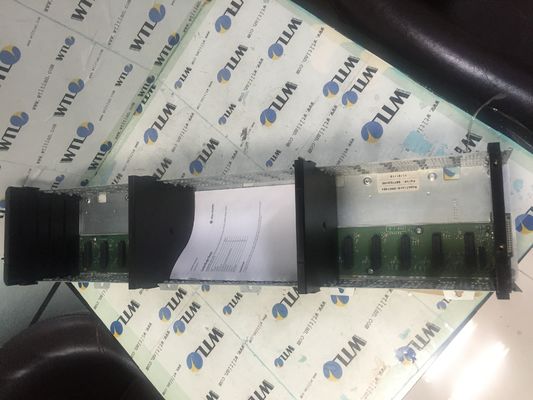

AB 2.8 A/2.8 A ControlLogix series chassis Module 1756-A17

AB 2.8 A/2.8 A ControlLogix series chassis Module 1756-A17

  • AB  2.8 A/2.8 A ControlLogix series chassis Module 1756-A17
  • AB  2.8 A/2.8 A ControlLogix series chassis Module 1756-A17
  • AB  2.8 A/2.8 A ControlLogix series chassis Module 1756-A17
  • AB  2.8 A/2.8 A ControlLogix series chassis Module 1756-A17
AB  2.8 A/2.8 A ControlLogix series chassis Module 1756-A17
Product Details:
Place of Origin: USA
Brand Name: GE
Model Number: 1756-A17
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negitiation
Packaging Details: in box
Delivery Time: 3-5days
Payment Terms: T/T, Western Union
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: PLC Programmable Logic Controller 1756-A17 Product: PLC Programmable Logic Controller
Model: 1756-A17 Brand: AB
Series: SLC 500 I/O Chassis: CONTROLLOGIX
Current: 2.8 A Country Of Origin: USA

AB 2.8 A/2.8 A ControlLogix series chassis Module 1756-A17




Specifications for  ControlLogix series chassis Module 1756-A17

  • Manufacturer Rockwell Automation
    Brand AB
    Operating Temperature, Series C -25…+60 °C (-13…+140 °F)
    Operating Temperature, Series B 0°C to +60°C (+32°F to +140°F)
    No. of mounting tabs Ten (10)
    Orientation Horizontal
    Backplane Current @ 24VDC 2.8 A/2.8 A
    Backplane Current @ 5.1VDC 15 A/6 A
    Backplane Current @ 3.3VDC 4A/4 A
    Backplane Current @ 1.2VDC 1.5 A
    No. of slots Seventeen (17) slots
    Storage Temperature -40°C to +85°C (-40°F to +185°F)
    Relative Humidity 5 to 95% (without condensation)
    Part Number/Catalog No. 1756-A17
    Series ControlLogix
    Module Type Chassis
    Mounting Panel Mount
    Wire size Functional Earth Ground - 8.3 mm2 (8 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater Protective Earth Ground - 2.1 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F) or greater
    Slots 17
    Power Dissipation (Max) 6 Watts
    Dimensions 30 x 36 x 8 inches
    Weight 4.8 pounds (2.2 kilograms)
    Enclosure Open
    Backplane Current (5 Volts DC) 10 amps
    Backplane Current (24 Volts DC) 2.8 Amps
    UPC 10612598129291







OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG- Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X- Emerson VE-,KJ-
Honeywell TC-,TK- GE Modules IC -
ABB Module AB Module 1756-,1759- Tourch Screen 2711-
Mitsubishi Drive MR- , Motor HA -,HC Emerson MoudlesVE- ,KJ -
Fanuc motor A0-, Drive Yokogawa transmitter EJA-
Rosemount Transmitter 3051- Schneider Module 140-
Panasonic Motor , Drive MH- Siemens Module 6ES-, Touch Screen 6AV-





AB  2.8 A/2.8 A ControlLogix series chassis Module 1756-A17 0





About ControlLogix series chassis Module 1756-A17

The AB 1756-A17 is a ControlLogix component. This is a 17-slot chassis that is used to mount ControlLogix modules including processors, I/O modules, specialty modules and encompass partner modules.

The 1756-A17 provides module housing including the necessary backplane connection to allow internal module connection and distribution of bus power through the embedded electronic circuitry and provided mounting slots to the chassis. It has a power consumption of 1.5 A @ 1.2VDC; 4A/4A @ 3.3 VDC; 15 A/6 A @ 15 A/6 A and 2.8 A/2.8 A @ 24VDC.

The 1756-A17 supports horizontal mounting only and requires a minimum cabinet size or available space of 76.2 x 91.4 x 20.3 cm (30 x 36 x 8 in.). The provided 10 mounting tabs permit direct panel mounting to the enclosure subpanel for convenient and fast installation. This chassis weighs 2.20 kg (4.8 lb).

When mounting 1756-A17 chassis with nearby ControlLogix chassis, specific space requirements are 10.2 cm (4.0 in.) plus the width of the power supply (left side), 7.7 cm (3.0 in.) plus the width of the power supply (right side), 15.3 cm (6.0 in.) Top clearance and 5.1 cm (2.0 in.) bottom clearance.

The 1756-A17 are available in 3 chassis revisions, specifically, series A, B and C. Series C specifically offers improved slot guidelines, ventilation, tougher mounting tabs, extra holes for mounting tabs and additional ground screw for termination to the panel grounding.

The 1756-A17 Standard Chassis includes inherent time-stamping capabilities for SOE applications. The chassis backplane distributes power to each of the modules within the chassis by providing a high-speed communication path between modules. It requires a Bulletin 1492 wiring IFM or an RTB to connect all the field-side wiring. The 1756-A17 Standard Chassis provides easy maintenance with the RIUP feature. For preventing replacement errors, it also offers electronic keying. In case of any system or field side failure, its comprehensive diagnostic feature helps identify the fault. It is compact, cost-effective, and easily compatible with items such as PanelView operator.
