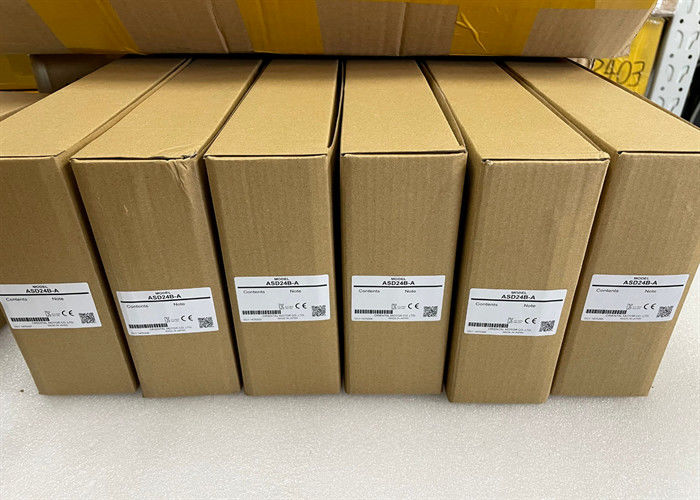

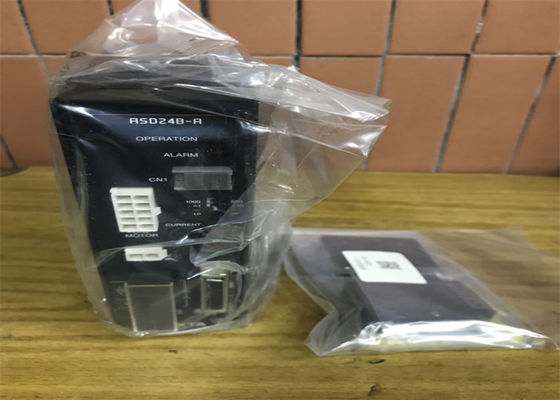

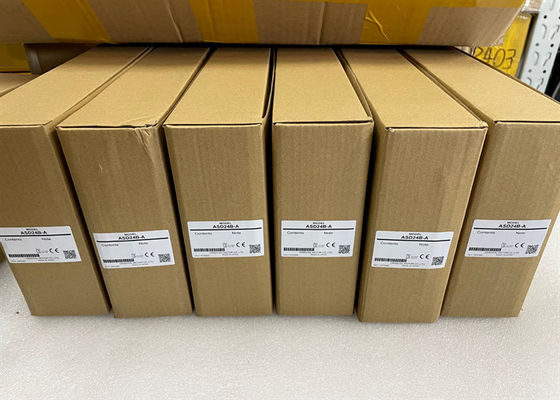

ASD24B-A Industrial Servo Drives VEXTA Oriental 50/60Hz Single phase 100-115V
Specifications of Industrial Servo Drives ASD24B-A
Driver type:Pulse train input type
Power input voltage:Single phase 100-115V
Power supply input voltage tolerance:-15 to +10%
Power input frequency;50/60Hz
Speed and position control:Pulse train input
Maximum input pulse frequency:250khz (50% Duty)
Protection function:When the next protection function is activated, an alarm signal is output to stop the motor naturally.
Overtemperature protection, overload protection, overvoltage protection, speed difference error protection, overcurrent protection, overspeed, EEPROM data error, sensor error, system error
This product is a circuit unit (component) of a stepping motor unit.
For the specifications of the unit, please click the unit part name (combination part name) from here, and confirm it on the detailed page.
Stepper Motors & Actuators
Oriental Motor's AlphaStep closed loop control systems perform accurate positioning operations with ease. The AlphaStep features a unique control system combining the benefits of "open loop control" and "closed loop control".
With the AlphaStep control system, the position of the motor is always monitored and then the driver automatically switches between the two types of control depending on the situation. Under normal circumstances the operation of the motor is monitored and control is applied using open loop like a standard stepper motor. If an error occurs between the command and motor position due to a load or the like, the system immediately switches to closed loop control like a servo motor. This corrects the position and speed maintaining the desired operation. The combination of these two control methods ensures high reliability and performance.
Combinations of motors and drivers
| Unit model |
Motor model |
Driver model |
| AS46AA |
ASM46AA |
ASD13A-A |
| AS66AAE |
ASM66AAE |
ASD24A-A |
| AS69AAE |
ASM69AAE |
ASD30D-A |
| AS66ACE |
ASM66ACE |
ASD12A-C |
| AS69ACE |
ASM69ACE |
ASD16D-C |
| AS66ASE |
ASM66ACE |
ASD12A-S |
| AS69ASE |
ASM69ACE |
ASD16D-S |
| AS98AAE |
ASM98AAE |
ASD30A-A |
| AS911AAE |
ASM911AAE |
ASD30E-A |
| AS98ACE |
ASM98ACE |
ASD16A-C |
| AS911ACE |
ASM911ACE |
ASD20A-C |
| AS98ASE |
ASM98ACE |
ASD16A-S |
| AS911ASE |
ASM911ACE |
ASD20A-S |
