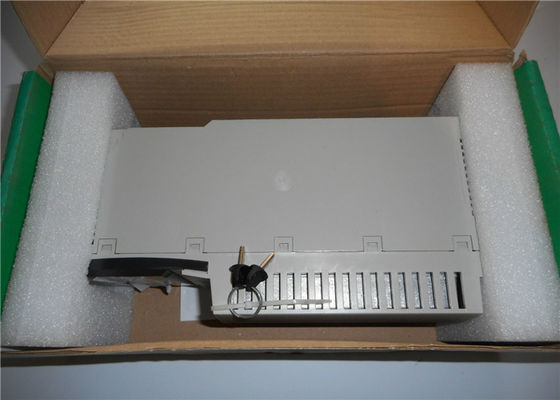

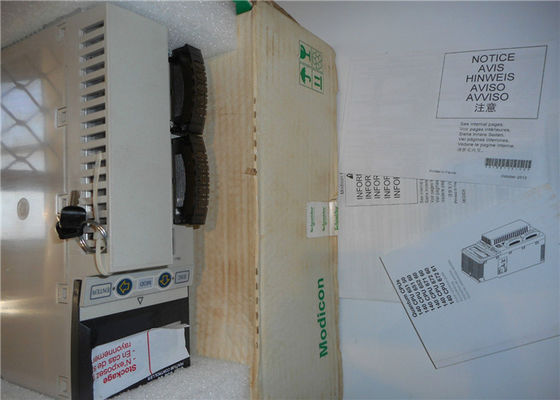

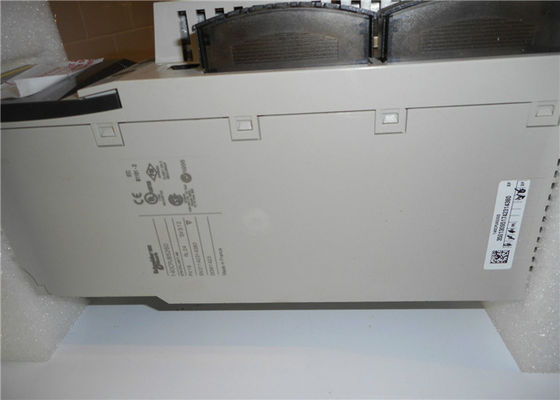

SCHNEIDER MODICON Quantum CPU 140CPU65260 NEW AND FACTORY SEALED









Quick details:





• SCHNEIDER ELECTRIC
• MODICON
• 140CPU65260
• CC QUANTUM PROCESSOR-UNITY W/4096/7168K
• AVAILABLE
• New one with one year warranty and used one with six months warranty
• Weight: 2.00lbs





















Complementary:







clock frequency	266 MHz
number of slots	10 2 4 6 16
number of racks	2 - local rack(s)
number of distributed I/O station	63 station(s) - 1 rack(s) - 1 Modbus Plus network(s)
number of remote I/O station	31 - 2 S908 remote I/O rack(s) 31 - 2 ethernet Quantum remote I/O rack(s) 31 - 2 ethernet X80 remote I/O rack(s)
discrete I/O number	Unlimited (31 drops of 28 slots max) - ethernet remote I/O 31744 inputs, 31744 outputs - S908 remote I/O 8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local
analogue I/O number	Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O 500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - remote
application specific I/O	High-speed interrupt inputs Serial link Counter Accurate time stamping
communication service	Ethernet router
number of optional modules	6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
maximum number of connections	1 ( USB) 2 ( AS-Interface) - distributed 4 ( AS-Interface) - remote 6 ( Ethernet TCP/IP) - local 6 ( Modbus Plus) - local 6 ( Profibus DP) - local 1 ( Modbus) - RS232/485 Modbus/ASCII
integrated connection type	1 Modbus Plus with 1 Ethernet TCP/IP with 1 Modbus with 1 USB with
checks	Process control
memory description	Expandable 7168 kB - program with PCMCIA card Expandable 8 MB - file storage with PCMCIA card Internal RAM 3072 kB
switch function	Key switch memory port on/off
application structure	1 cyclic/periodic master task - 1 periodic fast task - 128 I/O interrupt tasks - 128 interrupt tasks - 32 timer interrupt tasks - 4 auxiliary tasks -
number of instructions per ms	10.28 Kinst/ms if 100 % Boolean 10.07 Kinst/ms if 65 % Boolean and 35 % numerical
system overhead	1 ms - master task 0.2 ms - fast task
bus current requirement	2760 mA
local signalling	1 LED green Ethernet activity (COM) 1 LED red Ethernet collision

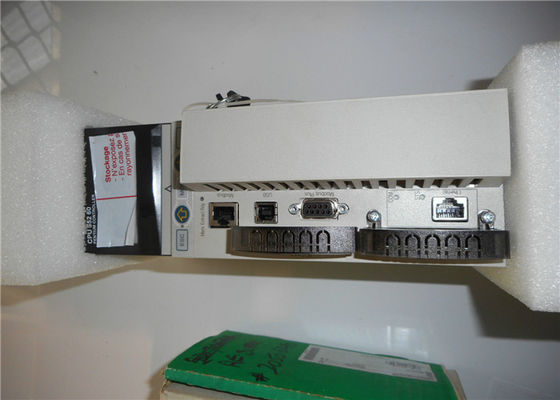

electrical connection	1 connector, connector type: RJ45 for connecting Ethernet network 1 connector, connector type: RJ45 for connecting Modbus bus 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network













Environment:








product certifications	CSA CE UL GOST Misc (Marine)
standards	HazLoc













Ordering and shipping details:







Category	18150 - QUANTUM CONTROLLERS,HSBY,COMM.
Discount Schedule	PC21
GTIN	00785901541868
Nbr. of units in pkg.	1
Package weight(Lbs)	3.1800000000000002
Returnability	Y
Country of origin	FR













Offer Sustainability:





Sustainable offer status	Green Premium product
RoHS (date code: YYWW)	Compliant - since 0901 - Schneider Electric declaration of conformity Schneider Electric declaration of conformity
REACh	Reference not containing SVHC above the threshold
Product environmental profile	Available
Product end of life instructions	Available









ConneXium™ managed switches (continued) Predefined configuration files (continued) Example topology with predefined configuration files C5, C1 and C3 (1) A common use of this preconfiguration is for interfacing a copper link with a fiber optic link on the primary ring or interfacing a fiber optic link with a copper link. This type of architecture makes it possible to have Ethernet DIO or Ethernet RIO drops some distance away from the PLC. The switch preconfiguration also enables Ethernet RIO and/or several Ethernet DIO device clouds to be connected to a secondary ring.









1 Primary ring, copper/fiber optic medium

2 Ethernet DIO secondary ring, copper medium only

3 Ethernet head adaptor 140CRP31200 installed in the Quantum™ rack.

4 ConneXium switch TCSESM083F23F1 with predefined configuration file C2 (2)

5 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C6 (2)

6 ConneXium switch TCSESM063F2CU1/CS1 with predefined configuration file C4 (2)

7 Modicon™ STB Ethernet DIO (3) (4)

8 Connection to Ethernet DIO device cloud, copper medium only

9 Ethernet DIO device cloud (3)

10 Ethernet communication module 140NOE771

11 Ethernet Interlink cable TCSECN3M3M1S4/1S4U (1 m)
