Name: HA-LFS11K2 Mitsubishi Industrial Servo Motor 3-phase 11.0kW 2000 RPM
Brand: Wisdomlong Technology CO.，LTD
SKU: HA-LFS11K2
Price: 1.00 USD
Availability: InStock

Home Products Industrial Servo Motor

HA-LFS11K2 Mitsubishi Industrial Servo Motor 3-phase 11.0kW 2000 RPM

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	CE
Model Number:	HA-LFS11K2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	New Original
Delivery Time:	3-5days
Payment Terms:	L/C, T/T
Supply Ability:	1000

Contact Now

Detailed Product Description

Brand:	Mitsubishi	Product Type:	Industrial Servo Motor
Part Number:	HA-LFS11K2	Place Of Origin:	Japan
Rated Speed:	2000 RPM	Rated Output:	11Kw

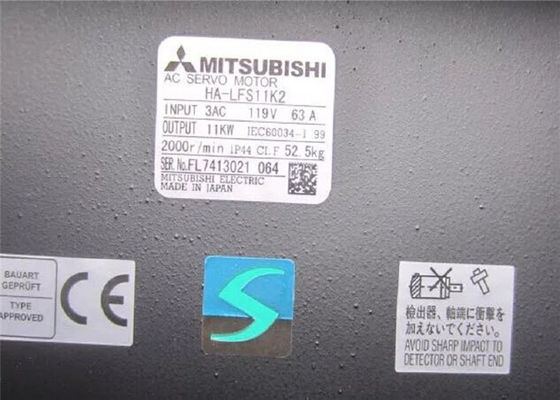

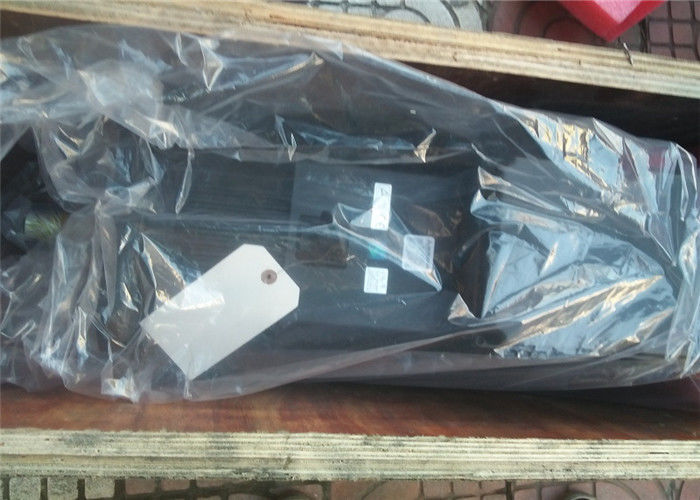

HA-LFS11K2 Mitsubishi Industrial Servo Motor 3-phase 11.0kW 2000 RPM

Description of HA-LFS11K2 Mitsubishi Industrial Servo Motor

Description HA-LFS11K2 is a Motors-AC Servo produced by Mitsubishi
Servomotor Type HA-LFS series low inertia,large capacity,high resolution
Rated Output 11.0kW
Rated Speed 2000 RPM
Power supply specification 200-230VAC 3-phase
Brake without brake

Specifications of HA-LFS11K2

Servo Motor Series			HA-LFS series (low inertia, medium and large capacity)
Model Specifications	Servo Motor Type HA-LFS		HA-LFS11K2
	Servo amplifier Model name (Note 9) MR-J2S-		MR-J2S-11KA MR-J2S-11KB
Servo Motor	Power supply capacity (Note 2) (kVA)		16.0
	Continuous characteristic	Rated output capacity(KW)	11.0
		Rated torque (N · m)	52.5
	Maximum torque (N · m)		158.0
	Rated rotational speed (r / min)		2,000
	Maximum rotation speed (r / min)		2,000
	Instantaneous permissible rotational speed (r / min)		2,300
	Power rate at continuous rated torque (kW / s)		263.0
	Rated current (A)		63.0
	Maximum current (A)		189.0
	Frequency of regenerative braking (times / minute) (Notes 3 and 4)		186 (Note 7)
	(Inertia moment)		105.0 (113.0)
	Recommended load inertia moment ratio (Note 6)		10 times or less the inertia moment of the servo motor (Note 4)
	Speed and position detector J (× 10-4 kg · m2)		Absolute-incremental common 17-bit encoder (resolution per revolution of servo motor: 131072p / rev)
	Equipment		Oil chamber
	rescue		Full cooling and forced cooling (protection method IP44)
	Environment	Main Temperature	0 to 40 ° C (not to be frozen), Storage: -15 to 70 ° C (not to be frozen)
		Weekly humidity	80% RH or less (No condensation), Storage: 90% RH or less (No condensation)
		atmosphere	Indoors (no direct sunlight), corrosive gas, flammable gas, oil mist, dust free
	The mass (kg) ()		55.0 (70.0)
Cooling fan	power	Voltage, frequency	Single phase AC200 ~ 220V / 50Hz, Single phase AC200 ~ 230V / 60Hz
		Input (W)	42 (50 Hz) / 54 (60 Hz)
	Rated current (A)		0.21 (50 Hz) /0.25 (60 Hz)
