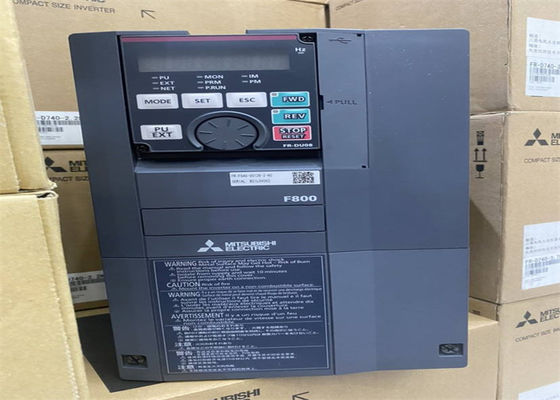

FR-F840-05470-2-60 Variable Frequency Inverter Mitsubishi Three phase 400V

FR-F840-05470-2-60 Variable Frequency Inverter Mitsubishi Three phase 400V

  • FR-F840-05470-2-60 Variable Frequency Inverter Mitsubishi Three phase 400V
  • FR-F840-05470-2-60 Variable Frequency Inverter Mitsubishi Three phase 400V
FR-F840-05470-2-60 Variable Frequency Inverter Mitsubishi Three phase 400V
Product Details:
Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: FR-F840-05470-2-60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: New Original
Delivery Time: 3-5days
Payment Terms: L/C, T/T
Supply Ability: 1000
Contact Now
Detailed Product Description
Brand: Mitsubishi Product Type: Variable Frequency Inverter
Part Number: FR-F840-05470-2-60 Place Of Origin: Japan
Inverter (ND) Rated Capacity (kW): 250kW Voltage Class: 400v

FR-F840-05470-2-60 Variable Frequency Inverter Mitsubishi Three phase 400V









Description of FR-F840-05470-2-60 Variable Frequency Inverter





MITSUBISHI FR-F840-05470-2-60 Product information and technical parameters:
Brand: MITSUBISHI
Name: Three phase 400V grade frequency converter
Model: FR-F840-05470-2-60
MITSUBISHI inverter series: FR-F840.
Voltage level: three phase 400V.
Power: 250kw.
SLD converter rated current: 547A.







FA-Inverter: Inverter FR-F840-05470-2-60



Series FR-F800 SERIES
Type FR-F800-E INVERTER
Minimum Rated Voltage (V) 380
Min. Permissible Voltage (V) 323
Maximum Rated Voltage (V) 500
Max. Permissible Voltage (V) 550
Current Type AC
Phases 3
Rated Output Current SLD (A) 547
Rated Output Current LD (A) 481
Rated Motor Capacity SLD (kW) 280
Rated Motor Capacity LD (kW) 250
Control Method V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, SOFT-PWM/HIGH FREQUENCY PWM
Motor Type INDUCTION MOTOR, PM MOTOR





Display FR-DU08
Display Type 5 DIGITS LED (12 SEGMENT)
PLC Function YES
Program Memory 6K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
IO Type of Terminal Block SPRING CLAMP
Expandable YES
USB 1+1 MINI
Ethernet Port 1
Built-In Network iQSS, SLMP, MODBUS/TCP, MELSOFT/FA, CC-LINK IE FIELD NETWORK BASIC, BACnet/IP
Leakage Current (mA) 35(DELTA) / 2(STAR)
