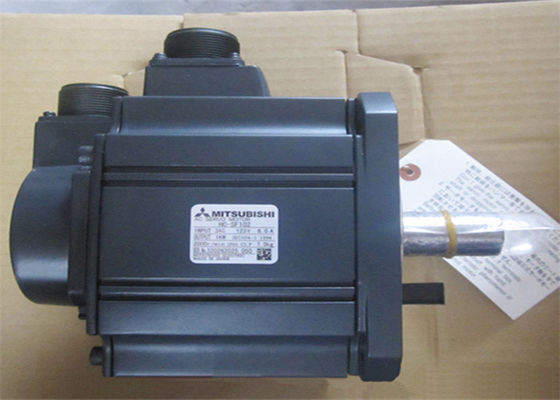

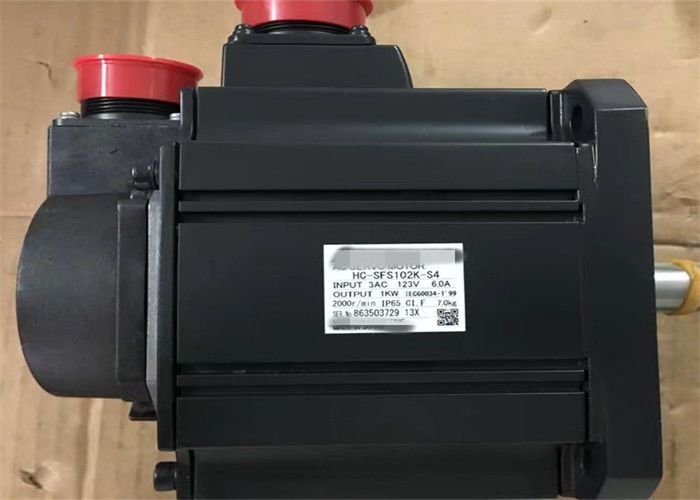

MITSUBISHI Industrial AC Control Servo Motor HC-SFS102K-S4 2000min/r,1KW

MITSUBISHI Industrial AC Control Servo Motor HC-SFS102K-S4 2000min/r,1KW

  • MITSUBISHI Industrial AC Control Servo Motor HC-SFS102K-S4 2000min/r,1KW
  • MITSUBISHI Industrial AC Control Servo Motor HC-SFS102K-S4 2000min/r,1KW
MITSUBISHI Industrial AC Control Servo Motor HC-SFS102K-S4 2000min/r,1KW
Product Details:
Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: HC-SFS102K-S4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Model: HC-SFS102K-S4 Brand: Mitsubishi
Rated Output Power: 1KW Rated Speed: 2000r/min
Series: HF-SFS Category: Industiral Servo Motor

MITSUBISHI Industrial AC Control Servo Motor HC-SFS102K-S4 2000min/r,1KW





Details of HC-SFS102K-S4
  • Melservo HC Servo Motor with KEY, 1KW, 6 AMP, 123V, 2000RPM (HCSFS102K)
  • Manufacturer: Mitsubishi
  • Series: MELSERVO HC-SFS
  • Output 1 KW
  • Maximum torque 14.4 Nm
  • Rated Speed 2000 1/min
  • Max speed 3000 1/min
  • Rotor inertia 0.00137 kg.m²
  • Rated Current 6 A
  • Max. Current 18 A
  • Weight 7 Kg
  • Rated Torque 4.78 Nm

INSTALLTION of Protection from oil and water

(1) Next, the servo motor is not waterproof (IP44). Do not subject the servo motor to oil and water.
Especially for the HC-MF / HC-KF / HC-AQ / HC-KFS / HC-MFS and HA-FF series, do not subject the
shaft-through portion to oil.

(2) When the gear box is mounted horizontally, the oil level in the gear box should always be lower than
the oil seal lip on the servo motor shaft. If it is higher than the oil seal lip, oil will enter the servo motor, leading to a fault. The HC-MF / HC-KF / HC-AQ / HC-MFS and HC-KFS series servo motor is not equipped with an oil seal and cannot be used with the gear box as described above. Oil should be shut off on the gear box side.

(3) When installing the servo motor horizontally, face the power cable and encoder cable downward. When installing the servo motor vertically or obliquely, provide a trap for the cable.

(4) Do not use the servo motor with its cable soaked in oil or water. (Figure on the right)

(5) When the servo motor is to be installed with the shaft end at top, provide measures so that it is not
exposed to oil and water entering from the machine side, gear box, etc.

(6) If the servo motor is exposed to oil such as coolant, the sealant, packing, cable and others may be
affected depending on the oil type.

(7) In the environment where the servo motor is exposed to oil mist, oil, water, grease and/or like, the
servo motor of the standard specifications may not be usable. Contact us.

(8) In the case of the servo motor with oil seal, the oil seal may sound during operation. It poses no
problems in function.


Specifications of HC-SFS



Motor series Rated speed
(maximum speed)
(r/min)
Rated output
(kW)
Protection
level
Features Application
examples
HC-SFS series 1000
1500 : 0.85kW
1200 : 1.2~3kW
4 types
0.85, 1.2,
2.0, 3.0
IP65 Medium inertia
Three models, from
low to high-speed,
are available for
various applications
● Material handling
systems
● Robots
● X-Y tables
2000
3000 : 0.5~1.5 kW
2500 : 2, 3.5 kW
2000 : 5, 7kW
14 types
0.5, 1.0, 1.5, 2.0,
3.5, 5.0, 7.0
0.5, 1.0, 1.5, 2.0,
3.5, 5.0, 7.0
IP65
3000
(3000)
5 types
0.5, 1.0,
1.5, 2.0,
3.5
IP65



Features

High Functionality, High Performance

1.High-resolution Encoder 131072p/rev (17bit)

• The inclusion of a high-resolution encoder ensures high performance and stability at low speeds.
• Motor sizes are the same as previous products and wiring is compatible.

2.High-performance CPU Incorporated for Improved Response
• The application of a high-performance CPU has enhanced response significantly. Speed loop frequency response is im-proved to 550Hz or more.
The MR-J2-Super series are the best choice for use in high-speed positioning applications.
Absolute encoder is Standard Equipment
• The absolute positioning method, which does not require home position return, can be used by adding a battery to the servo amplifier. The servo motor does not need to be replaced.

3.SSCNET, high-speed serial bus compatible: B type

• A completely synchronized system can be made using SSCNET utilizing high-speed serial communication with cycle times of up to 0.888ms between controller and amplifier. Such a system will provide high levels of reliability with high levels of performance.
• As the SSCNET bus system is used to connect the servo system together, the consolidated management features such as servo amplifier parameter settings and data gathering are all present in the motion controller.
• A dedicated cable is used for the SSCNET system that simply connects the amplifiers and controllers. This simple connection method reduces wiring time and also helps to prevent noise (due to the serial data transfer when using SSCNET).
• The command frequency is not limited even when using the high resolution encoders standard on the MELSERVO-J2-Super series products.
• SSCNET is a completely synchronized network, so synchronized control and synchronized starting for advanced interpolation etc. can all be carried out.
• An absolute system can be made by simply adding a battery to the Servo amplifier.
• More than 1,000,000 SSCNET amplifier units of this highly reliable network are in use.


Similiar models:

HC-SFS102
HC-SFS102B
HC-SFS102K
HC-SFS102BK
HC-SFS102G1
HC-SFS102G1H
HC-SFS102BG1
HC-SFS102G2
HC-SFS102BG2
HC-SFS102G1K
HC-SFS102G1HK
HC-SFS102G2K
HC-SFS102BG1K
HC-SFS102BG1HK
HC-SFS102BG2K


Torque Curve

MITSUBISHI Industrial AC Control Servo Motor HC-SFS102K-S4 2000min/r,1KW 0

What is Details of Our Mitsubishi Parts?

  • All the Mitsubishi Parts are new and original with package.
  • Warranty time: 180 or 360 days.


Good Service in WTL:

> We offer high quality, fast delivery, competitive price for ABB Input Output Module.

> Please send your RFQ to get the latest price.

> Normally, we will ship the items in 1-2 weeks after receive the payment.

> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.

> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.




Liability:


WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
