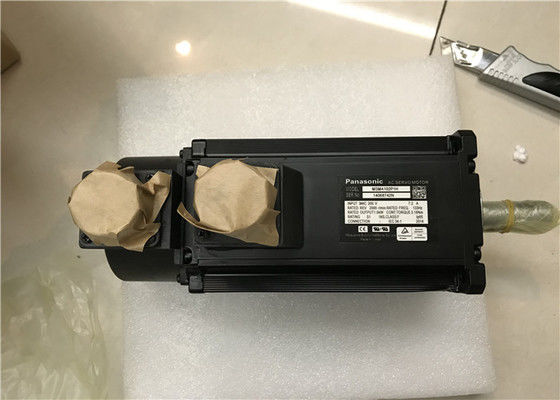

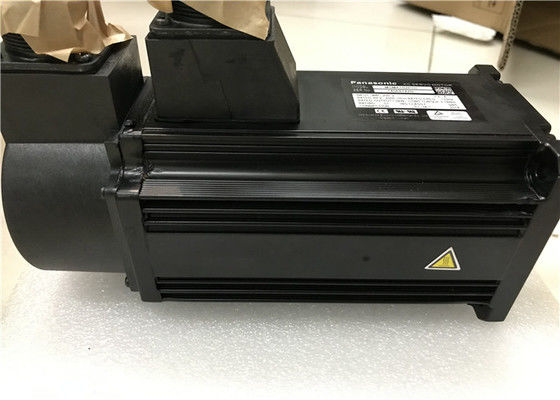

MSMA102P1H Panasonic 3 Phase Servo Motor Driver 3000 RPM 200V Matsushita Electric

MSMA102P1H Panasonic 3 Phase Servo Motor Driver 3000 RPM 200V Matsushita Electric

Product description of MSMA102P1H Panasonic

Specifications of MSMA102P1H Panasonic

• AC Motor 3000 RPM 200V MSMA102P1H
• Part Number:MSMA102P1H
• Description: 3000 RPM 200V
• Part Status: Obsolete
• Type: AC Motor
• Function: $keywory5$
• Motor Type : Standard
• Voltage - Rated: 200VAC
• RPM: 3000 RPM
• Torque - Rated (oz-in / mNm): 450.3 / 3180
• Power - Rated : 1kW
• Encoder Type : Incremental
• Size / Dimension: Square - 3.543" x 3.543" (90.00mm x 90.00mm)
• Diameter - Shaft : 0.748" (19.00mm)
• Length - Shaft and Bearing : 2.165" (55.00mm)
• Mounting Hole Spacing: 3.937" (100.00mm)
• Termination Style: Connector
• Features Gear : Brake, Key, Oil Seal
• Reduction Ratio : Standard
• Torque - Max Momentary (oz-in / mNm) : 1345 / 9500
• Operating Temperature: 0°C ~ 40°C
