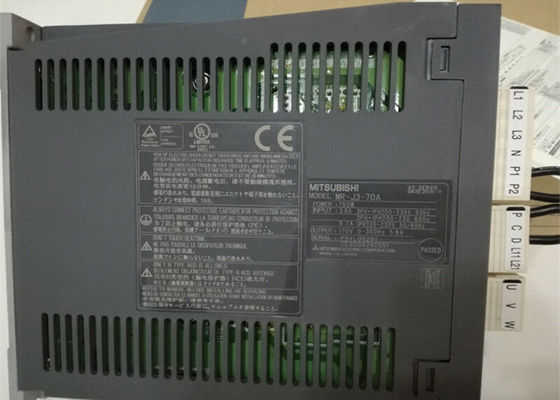

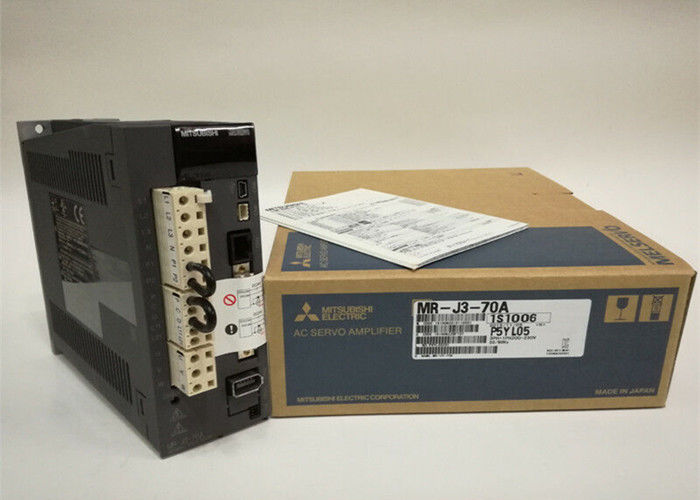

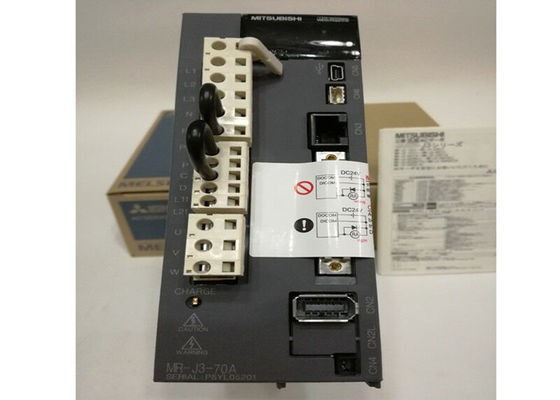

Mitsubishi 750W AC Servo Drive MR-J3-70A Industrial Control System Amplifier 170V 5.8A

Mitsubishi 750W AC Servo Drive MR-J3-70A Industrial Control System Amplifier 170V 5.8A

  • Mitsubishi 750W AC Servo Drive MR-J3-70A Industrial Control System Amplifier 170V 5.8A
  • Mitsubishi 750W AC Servo Drive MR-J3-70A Industrial Control System Amplifier 170V 5.8A
  • Mitsubishi 750W AC Servo Drive MR-J3-70A Industrial Control System Amplifier 170V 5.8A
Mitsubishi 750W AC Servo Drive MR-J3-70A Industrial Control System Amplifier 170V 5.8A
Product Details:
Place of Origin: Japan
Brand Name: Mitsubishi
Certification: CE
Model Number: MR-J3-70A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact us
Packaging Details: New Original Box
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Model: MR-J3-70A Brand: Mitsubishi
Rated Power: 750W Type: AC Servo Motor Drive
Voltage: 170V Current: 5.8A

Mitsubishi 750W AC Servo Drive MR-J3-70A Industrial Control System Amplifier 170V 5.8A



Description



The Mitsubishi MELSERVO-J3 series general-purpose AC servo is based on the MELSERVO-J2-Super series and has further higher performance and higher functions. It has position control, speed control and torque control modes. Further, it can perform operation with the control modes changed, e.g. position/speed control, speed/torque control and torque/position control. Hence, it is applicable to a wide range of fields, not only precision positioning and smooth speed control of machine tools and general industrial machines but also line control and tension control. As this new series has the USB or RS-422 serial communication function, a MR Configurator installed personal computer or the like can be used to perform parameter setting, test operation, status display monitoring, gain adjustment, etc. With real-time auto tuning, you can automatically adjust the servo gains according to the machine. The MELSERVO-J3 series servo motor with an absolute position encoder which has the resolution of 262144 pulses/rev to ensure more accurate control as compared to the MELSERVO-J2-Super series. Simply adding a battery to the servo amplifier makes up an absolute position detection system. This makes home position return unnecessary at power-on or alarm occurrence by setting a home position once.



Specification

Description MR-J3-70A is a Drives-AC Servo produced by Mitsubishi
Servomotor Type MR-J3 AC Servo Amplifier
Phase 3
Supply Voltage 200 to 230 V ac
Power 750w
Input

3.8A 3PH+1PH 200-230V 50Hz
3PH+1PH 200-130V 60Hz

5.7 A 1PH 200-130V 50/60Hz

Output 170V 0-360Hz 5.8A

Product Family: MR-J3-10A, MR-J3-10B, MR-J3-20A, MR-J3-20B, MR-J3-40A, MR-J3-40B, MR-J3-60A, MR-J3-60B, MR-J3-70A, MR-J3-70B, MR-J3-100A, MR-J3-100B, MR-J3-200A, MR-J3-200B, MR-J3-350A, MR-J3-350B, MR-J3-500A, MR-J3-500B, MR-J3-700A, MR-J3-700B



Product range



Servo Amplifiers
MR-J3-A/B/T
(200 V Type)
10A
10B
10T
20A
20B
20T
40A
40B
40T
60A
60B
60T
70A
70B
70T
100A
100B
100T
200A
200B
200T
350A
350B
350T
500A
500B
500T
700A
700B
700T
Power supply Voltage/frequency* 3-phase 200-230V AC, 50/60Hz
1-phase 200-230V AC, 50/60Hz
3-phase 200-230V AC, 50/60Hz
Permissible voltage fluctuation 3-phase 200-230V AC: 170-253V AC
1-phase 230V AC: 207-253V AC
3-phase 170-253V AC
Permissible frequency fluctuation Max. ±5%
Control system Sinusoidal PWM control / current control system
Dynamic brake Built-in
Protective functions Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal relay), servo motor overheating protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection
Cooling / protection rating Self-cooling, open (IP00) Fan cooling, open (IP00)
Environment Ambient temperature Operation: 0-55°C (non-condensing);
Storage: -20-65 °C (non-condensing)
Relative humidity Operation: 90% RH max. (non-condensing);
Storage: 90% RH max. (non-condensing)
Elevation Max. 1000m above sea-level
Vibration Max. 5.9m/s² (0.6G)
Weight [kg] 0.8 0.8 1.0 1.0 1.4 1.4 2.3 2.3 4.6 6.2




ervo Amplifiers
MR-J3-A4/B4/T4
(400 V Type)
60A4
60B4
60T4
100A4
100B4
100T4
200A4
200B4
200T4
350A4
350B4
350T4
500A4
500B4
500T4
700A4
700B4
700T4
11KA4
11KB4
15KA4
15KB4
22KA4
22KB4
Power supply Voltage/frequency* 3-phase 380-480V AC, 50/60Hz
Permissible voltage fluctuation 3-phase 323-528V AC, 50/60Hz
Permissible frequency fluctuation Max. ±5%
Control system Sinusoidal PWM control / current control system
Dynamic brake Built-in External option
Protective functions Overcurrent shutdown, regeneration overvoltage shutdown, overload shutdown (electronic thermal relay), servo motor overheating protection, encoder fault protection, regeneration fault protection, undervoltage / sudden power outage protection, overspeed protection, excess error protection
Cooling / protection rating Self-cooling, open (IP00) Fan cooling, open (IP00)
Environment Ambient temperature Operation: 0-55°C (non-condensing);
Storage: -20-65 °C (non-condensing)
Relative humidity Operation: 90% RH max. (non-condensing);
Storage: 90% RH max. (non-condensing)
Elevation Max. 1000m above sea-level
Vibration Max. 5.9m/s² (0.6G)
Weight [kg] 1.7 1.7 2.1 4.6 4.6 6.2 18 18 19



Highlights

  • High-speed controllers for ultra-short positioning times; average speed frequency response 2100Hz

  • High-resolution encoders for maximum speed constancy (18 bits 262,144 P/rev)

  • Advanced vibration suppression for outstanding adaptation to machine requirements

  • Autotuning for extremely fast setup and installation

  • Optimum cost/benefit ratio

  • Absolute position encoder included as standard equipment

  • Minimum wiring overheads thanks to Plug & Play configuration and automatic motor identification

  • Supports global standards



MR-J3 series Industrial Servo Drive

MR-J3-10A MR-J3-20A MR-J3-40A MR-J3-60A MR-J3-70A MR-J3-1000A
MR-J3-200A MR-J3-350A MR-J3-500A MR-J3-700A MR-J3-10B MR-J3-20B
MR-J3-40B MR-J3-60B MR-J3-70B MR-J3-100B MR-J3-200B MR-J3-350B
MR-J3-500B MR-J3-700B MR-J3-10A1 MR-J3-20A1 MR-J3-40A1 MR-J3-60A1







We specialize in selling and servicing a wide range of Mitsubishi products and components:
  • MDS and MR Series AC Servo Drives
  • MDS and FR Series AC Spindle Drives
  • FR Series General Purpose Inverters and Braking Modules
  • HA / HC / HF / HP / HS Series AC Servo Motors
  • SJ Series AC Spindle Motors
  • CNC Boards
  • Power Supplies




Mitsubishi Servo Motors

HC-MFS053 HC-KFS053 HC-MFS13 HC-KFS13 HC-MFS053B HC-KFS053B
HC-MFS13B HC-KFS13B HC-MFS053K HC-KFS053K HC-MFS13K HC-KFS13K
HC-MFS053BK HC-KFS053BK HC-MFS13BK HC-KFS13BK HC-MFS23 HC-KFS23
HC-MFS43 HC-KFS43 HC-MFS23B HC-KFS23B HC-MFS43B HC-KFS43B
HC-MFS23K HC-KFS23K HC-MFS43K HC-KFS43K HC-MFS23BK HC-KFS23BK
HC-MFS43BK HC-KFS43BK HC-MFS73 HC-KFS73 HC-MFS73B HC-KFS73B
HC-MFS73K HC-KFS73K HC-MFS73BK HC-KFS73BK HC-SFS81 HC-SFS121
HC-SFS201 HC-SFS301 HC-SFS52 HC-SFS102 HC-SFS152 HC-SFS202
HC-SFS52B HC-SFS102B HC-SFS152B HC-SFS202B HC-SFS52K HC-SFS102K
HC-SFS152K HC-SFS202K HC-SFS52BK HC-SFS102BK HC-SFS152BK HC-SFS202BK
HC-SFS352 HC-SFS502 HC-SFS702 HC-SFS352B HC-SFS502B HC-SFS702B
HC-SFS353 HC-SFS352K HC-SFS502K HC-SFS702K HC-RFS353 HC-RFS103
HC-RFS153 HC-RFS203 HC-RFS353 HC-SFS53 HC-SFS103 HC-SFS153
HC-SFS203 HC-KFS13 HC-KFS13B HC-MF73-S15 HC-MF053 HC-KFSP3







What is Details of Our Mitsubishi Parts?

  • All the Mitsubishi Parts are new and original with package.
  • Warranty time: 1 year.



Good Service in WTL:

> We offer high quality, fast delivery, competitive price for Mitsubishi Servo Drives and Motors.

> Please send your RFQ to get the latest price.

> Normally, we will ship the items in 1-2 weeks after receive the payment.

> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.

> We have a large stock and the prices are variable, so sometimes the prices we post are not accurate. If needed, please contact us for specific prices.






Liability:



WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.
