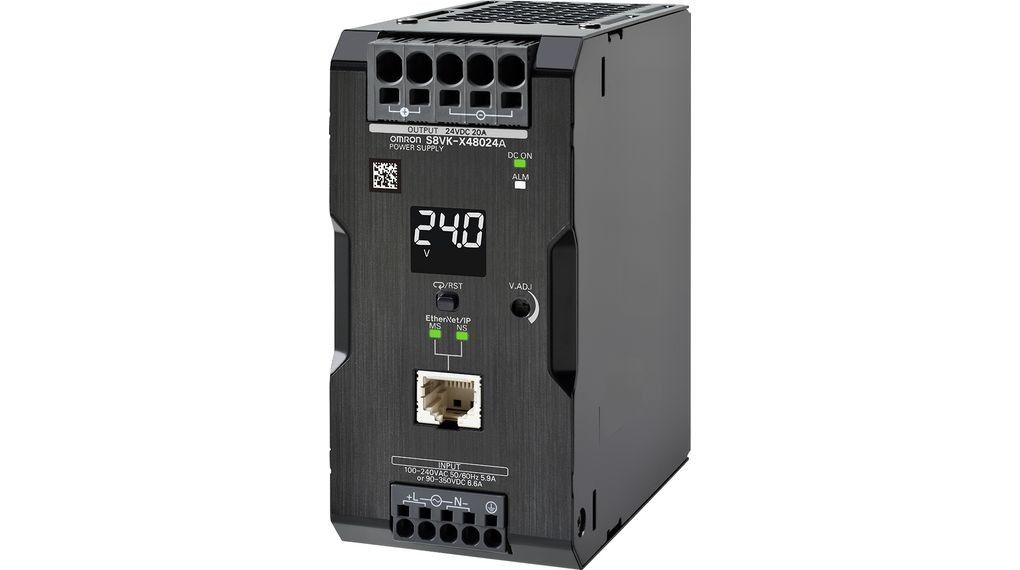

OMRON S8VK-X48024A-EIP 100 to 240 VAC Power rating 480 W 24 VDC - 40 C to + 70 C

OMRON S8VK-X48024A-EIP 100 to 240 VAC Power rating 480 W 24 VDC - 40 C to + 70 C

  • OMRON S8VK-X48024A-EIP 100 to 240 VAC Power rating 480 W 24 VDC - 40 C to + 70 C
  • OMRON S8VK-X48024A-EIP 100 to 240 VAC Power rating 480 W 24 VDC - 40 C to + 70 C
OMRON S8VK-X48024A-EIP 100 to 240 VAC Power rating 480 W 24 VDC - 40 C to + 70 C
Product Details:
Place of Origin: Japan
Brand Name: OMRON
Model Number: S8VK-X48024A-EIP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1
Packaging Details: New in original boxRockwell Automation
Delivery Time: 5-8 work daysRockwell Automation
Payment Terms: T/T
Supply Ability: 1
Contact Now
Detailed Product Description
Condition: New Rated Torque: 1.3 Nm
Peak Torque: 3.65 Nm Warranty: 1 Year
Encoder Resolution: 13 Bit Power - Rated: 2kW
RPM: 3000 RPM Voltage - Rated: 200VAC

OMRON S8VK-X48024A-EIP 100 to 240 VAC Power rating 480 W 24 VDC - 40 C to + 70 C


Product information OMRON S8VK-X48024A-EIP :

  • Manufacturer : Omron

  • Product No. :S8VK-X48024A-EIP

  • Product replacement time, output voltage, output current, and more are acquired on the network and can be managed all at once

  • Product status can be checked on-site using the indication monitor

  • Operation possible at ambient temperatures from -40 to 70°C

  • Power Boost function at 150% (240 and 480 W)

  • Side-by-side mounting possible (up to 55°C)

  • UL Class 2 conformance (90 W or less)

  • Complies with EN/IEC 61558-2-16

  • Coated PCBs for better resistance to environment


  • 12 month Northern Industrial Warranty

More information:

• EMI (radiated emissions) conform to Class B when this Power Supply is installed in a control panel.

• EN/IEC 61558-2-16 The S8VK-X was designed based on EN/IEC 61558-2-16. Currently, IEC 61558-2-17 has been replaced by IEC 61558-2-16. When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control transformer to the control circuits. However, a control transformer is not always necessary for product that have been certified for the safety standard for OVCIII or for product that use a transformer that conforms to EN/IEC 61558-2-16.

• Safety Standards for a DC Input When DC is used, UL 60950-1, UL 62368-1, cUR (CSA 22.2 No. 60950-1), cUR (CSA C22.2 No. 62368-1), EN/IEC 60950-1, EN/IEC 62368- 1, EN 50178 and EN/IEC 61558-2-16 are applicable to safety standards. Safety standard compliance is achievable by connecting a UL-certified fuse as specified below. Select an external fuse that satisfies the following conditions: S8VK-X03005-EIP, S8VK-X06012-EIP, S8VK-X06024-EIP (350 VDC or more, 6 A) S8VK-X09024@-EIP, S8VK-X12024@-EIP, S8VK-X24024@-EIP (350 VDC or more, 8 A) S8VK-X48024@-EIP (350 VDC or more, 12 A)

• To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective earth (PE).


Output Rated output current 20 A
Output voltage variable range 21.6 to 28 V (With V.ADJ)
Rated output power 480 W
Maximum peak current 30 A
Ripple 130 mV(p-p) max. at 20 MHz
Static input variation influence 0.5% max.
Static load variation influence 1.5% max.
Ambient temperature variation influence 0.05%/℃ max.
Start up time 1000 ms max. (at 115 VAC input)
1000 ms max. (at 230 VAC input)
Hold time 25 ms typ. (at 115 VAC input)
25 ms typ. (at 230 VAC input)
Additional functions Overload protection Yes, automatic reset, intermittent operation type
Overvoltage protection Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again)
Series operation Yes (Up to 2 Power Supplies with external diode)
Parallel operation Yes (Up to 2 Power Supplies)
Alarm indication Yes (color: red)
Output indicator Yes (color: green)
Output voltage indication Yes
Output current indication Yes
Peak-hold current indication Yes
Total run time monitor Indication: Yes

Same series of R88 :
R88D-GN04H-ML2G-Series servo drive, 1~ 200 VAC, MECHATROLINK II integrated, 400 W

R88M-G40030H-BS2 G-Series/SmartStep 2 AC servo motor (cylinder type), 400 W, 200 VAC, 3000 rpm, 1.3 Nm, with brake

R88M-G40030H-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, incremental, Brake, with circular connector

R88M-G40030T-BS2AC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake



R88M-G40030T-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector


R88M-GP40030T-BS2-DAC servo motor, 400 W, 200 VAC, 3000 rpm, 1.3 Nm, absolute, Brake, with circular connector


Details:

OMRON S8VK-X48024A-EIP 100 to 240 VAC Power rating 480 W 24 VDC - 40 C to + 70 C 0


OMRON S8VK-X48024A-EIP 100 to 240 VAC Power rating 480 W 24 VDC - 40 C to + 70 C 1
