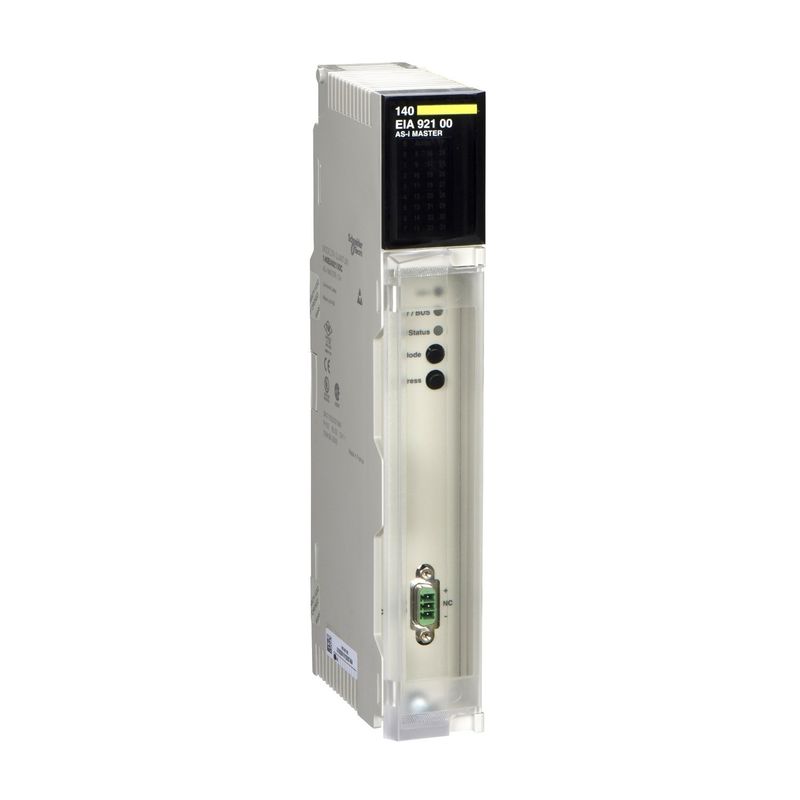

Schneider 140EIA92100 Quantum AS-i MASTER template 1 channel new original

Product Details:

Place of Origin:	France
Brand Name:	Schneider
Certification:	CE
Model Number:	140EIA92100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD
Packaging Details:	new original box
Delivery Time:	3-5days
Payment Terms:	T/T, Union,payoneer
Supply Ability:	50 pcc/week

Contact Now

Detailed Product Description

Brand:	Schneider	Model:	140EIA92100
Type:	Modicon Quantum Automation Platform	Country Of Origin:	France
Condition:	New Original	Deliver:	3-5days
MOQ:	1 PCS	Warranty:	1 Year

Schneider 140EIA92100 Quantum AS-i MASTER template 1 channel new original

Main
range of product	Modicon Quantum automation platform
product or component type	AS-Interface master module

Complementary
range compatibility	AS-Interface cabling system
AS-i version	V1
actuator sensor interface profile [AS-i]	M2
addressing	Standard
maximum cycle time	5 ms
bus length	0.00…328.08 ft (0…100 m) without repeater
discrete input number	124
discrete output number	124
number of slave	31
number of module per PLC	2 per Quantum PLC distributed drop 4 per Quantum PLC local drop 4 per Quantum PLC remote drop
supply	Via AS-Interface line
[Us] rated supply voltage	30 V DC
AS-i cabling system cycle time	156 x (n + 1) µs 31 156 x (n + 2) µs
transmission rate	167 kbit/s
reverse polarity protection	Internal
local signalling	Slave addresses and state of slave I/O bits 32 LEDs
electrical connection	1 male connector SUB-D 3 pins AS-Interface link
current consumption	<= 100 mA
typical current consumption	60 mA 30 V DC
marking	CE
net weight	0.99 lb(US) (0.45 kg)

Environment
IP degree of protection	IP20
ambient air temperature for operation	32…140 °F (0…60 °C)
product certifications	FM CSA GOST C-Tick UL

Ordering and shipping details
Category	18155-QUANTUM I/O & POWER SUPPLIES
Discount Schedule	PC21
GTIN	00785901785286
Package weight(Lbs)	1.04 lb(US) (0.472 kg)
Returnability	No
Country of origin	FR

Offer Sustainability
Sustainable offer status	Green Premium product
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm.For more information go to www.p65warnings.ca.gov
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
